REAR PANEL CONTROLS
4
3
2
1
2

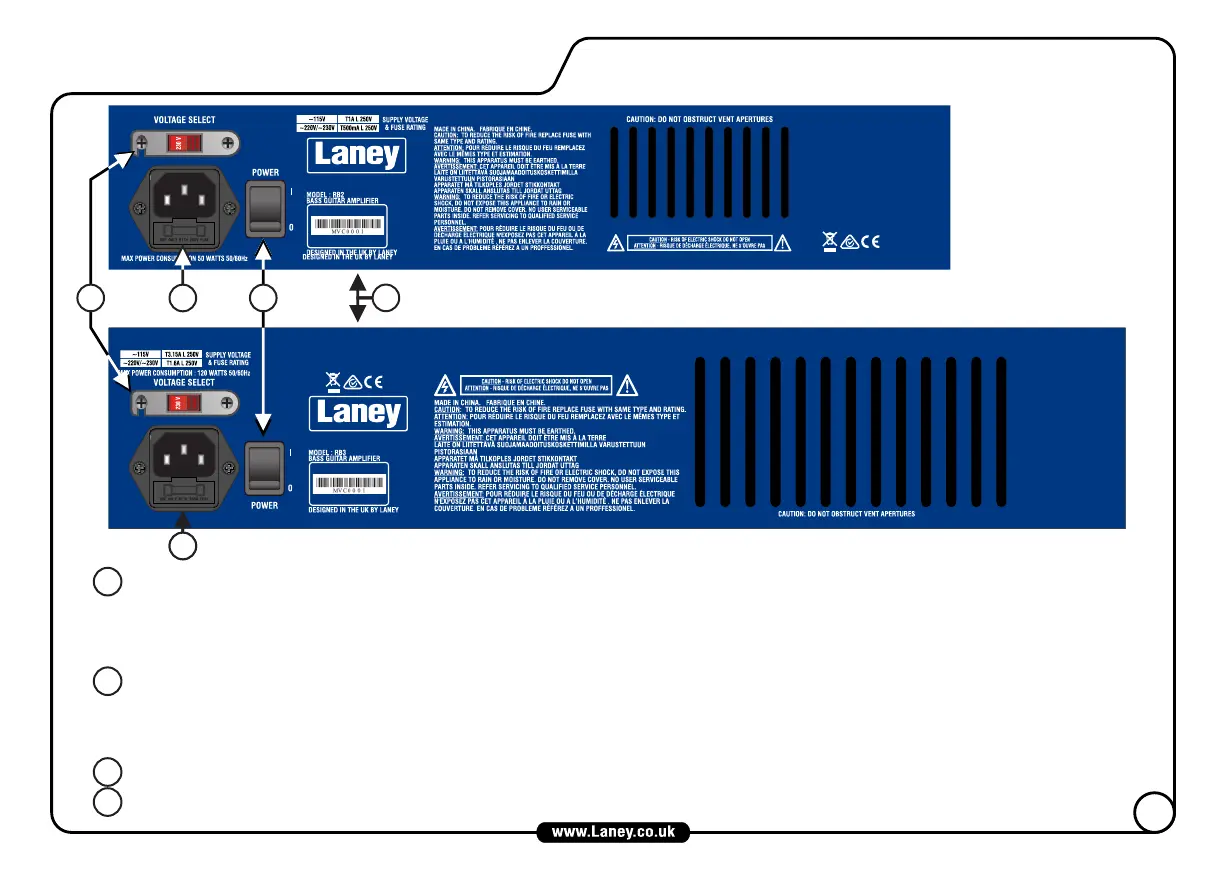

Voltage Selection Switch: This is factory set to the correct voltage for the region the product is supplied to. If necessary it can be
reset by removing the mains lead and then loosening (but not removing) the screws securing the cover. The cover can then be
pivoted away from the switch which can be moved to select the alternate voltage. DO NOT reconnect the mains lead until the
cover is replaced and secured. Please ensure the correct fuse is fitted (as printed on the panel) for the voltage being used.
Mains Power Switch.
The main safety fuse for the unit is inside this drawer.
Information area relating to the amplifier: Serial Number, Fuse Type and Rating etc.
USE ONLY THE CORRECT SIZE AND RATING OF FUSE AS SPECIFIED ON THE PANEL.
Power inlet socket. Connect to your power source. Make sure the specified voltage is correct for your country!
