Lanner NCA-1516 - Specific Connector Pin Assignments; ME Recover Mode and SPI ROM Header Pins; Dying Gasp Module and RTC;CMOS Headers

NCA-1516 User Manual
18

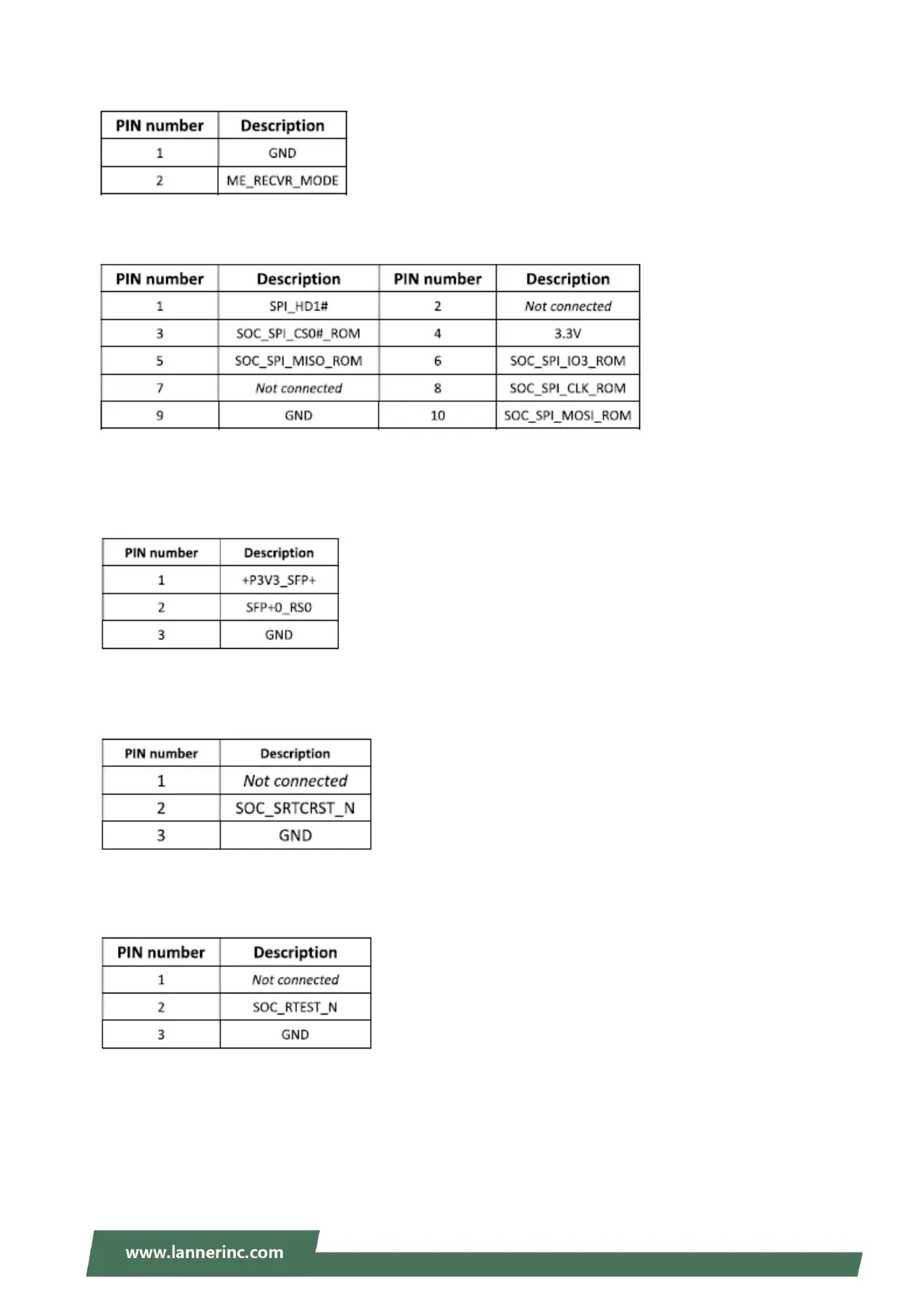

J3: ME RECOVER MODE, mounted for normal use
JSPIROM1: For Burning SPI ROM pin header
J4: For using Dying Gasp module pin selection
1-2 for Dying Gasp
2-3 for Normal SFP+ module
JRTC1: Clear RTC pin header
1-2 for normal usage
2-3 clear RTC
JCMOS1: Clear CMOS pin header
1-2 for normal usage
2-3 clear CMOS
