Lanner NCA-1516 - Board-to-Board and Adapter Pin Headers; PoE+ and Dying Gasp Board Pinouts; DC-IN, Case Open, and Button Cell Headers

NCA-1516 User Manual
19

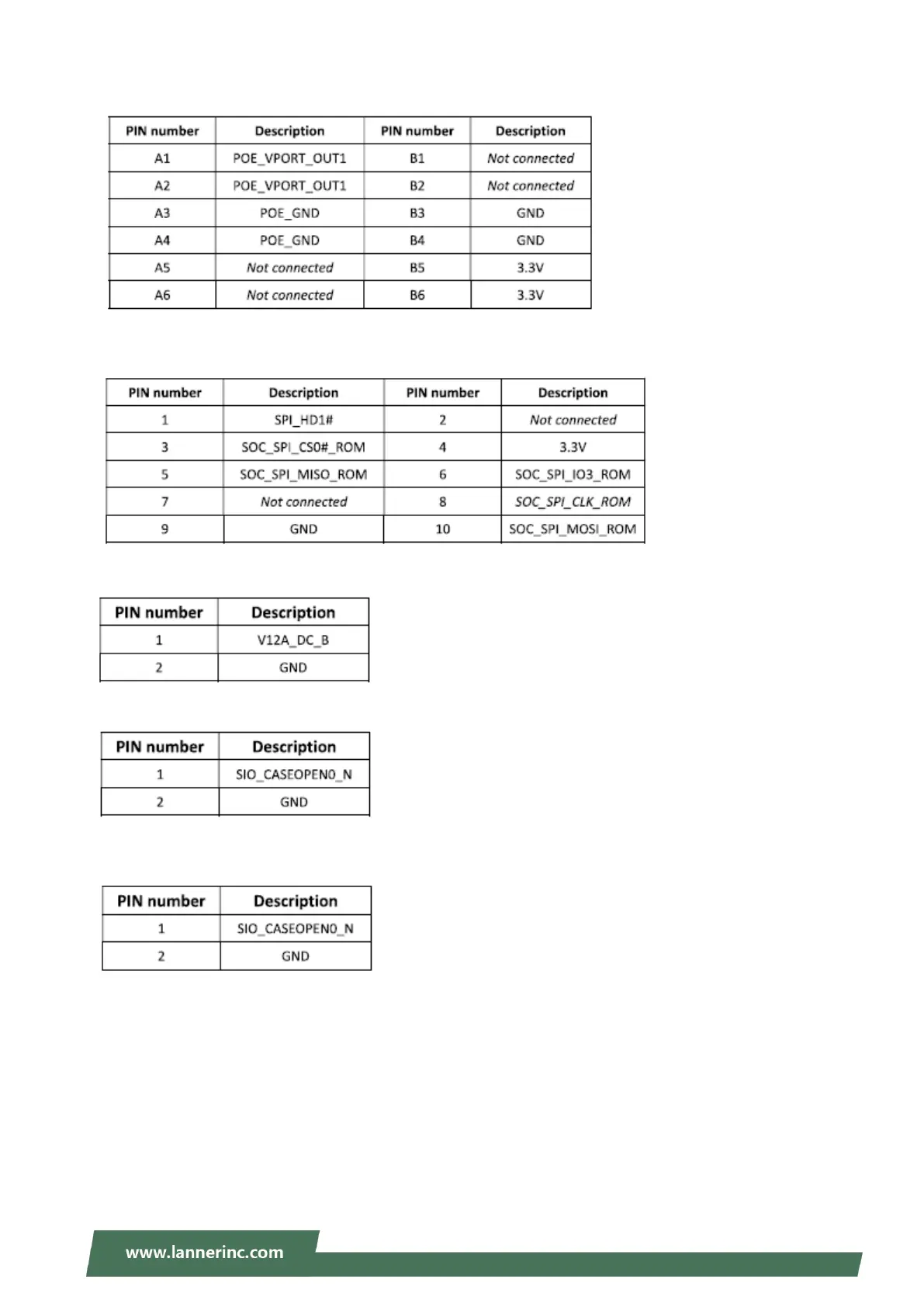

JPOE1: Connected PoE+ board to board connector
DYING_GASP2: To Dying Gasp board pin header2
CONN1: 2
nd
12V DC-IN adapter pin header
JCASEOPEN1: To Case open slide switch connector
JBAT1: Pin header for button cell
