Lanner NCA-1516 - Installing System Memory (DIMM); Locate System Memory Slot; Align and Insert DIMM Module; Secure DIMM in Slot

NCA-1516 User Manual
23
The motherboard supports DDR4 registered DIMM memory for heavy-duty operations. Please follow the
steps below to install the DIMM memory modules.

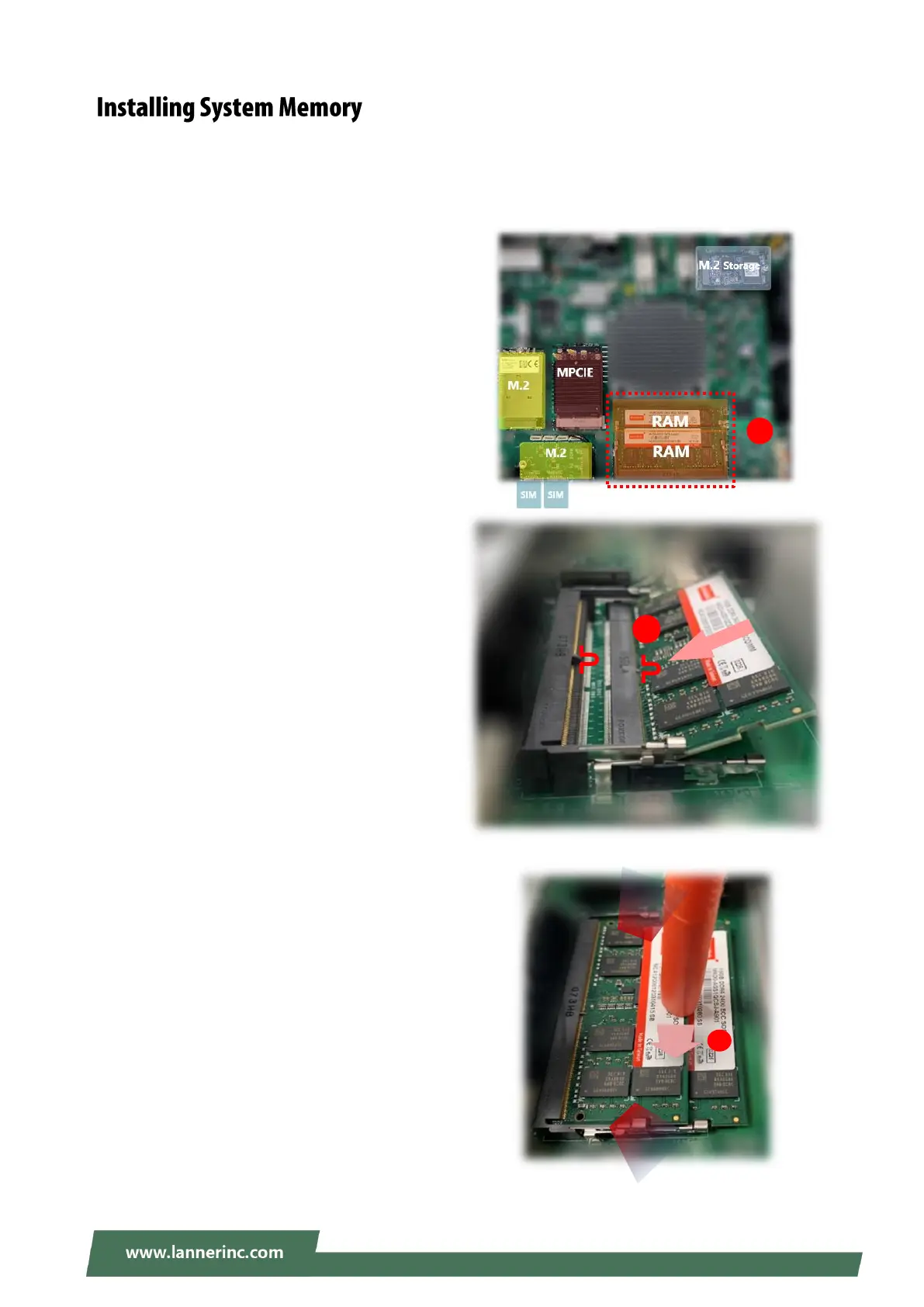

1. Locate the system memory slot.
2. Align the notch of the module with the socket
key in the slot. Tilt the end of the golden fingers
down while carefully inserting the card into the
slot.
3. Press vertically on the other end of the card
until it clicks into place.
Click
Click
3
Notch
2
1
