Lanner NCA-1516 - Installing mPCIE Module for WiFi; Locate mPCIE Slot for WiFi; Align and Insert mPCIE WiFi Card; Secure mPCIE WiFi Module

NCA-1516 User Manual
25

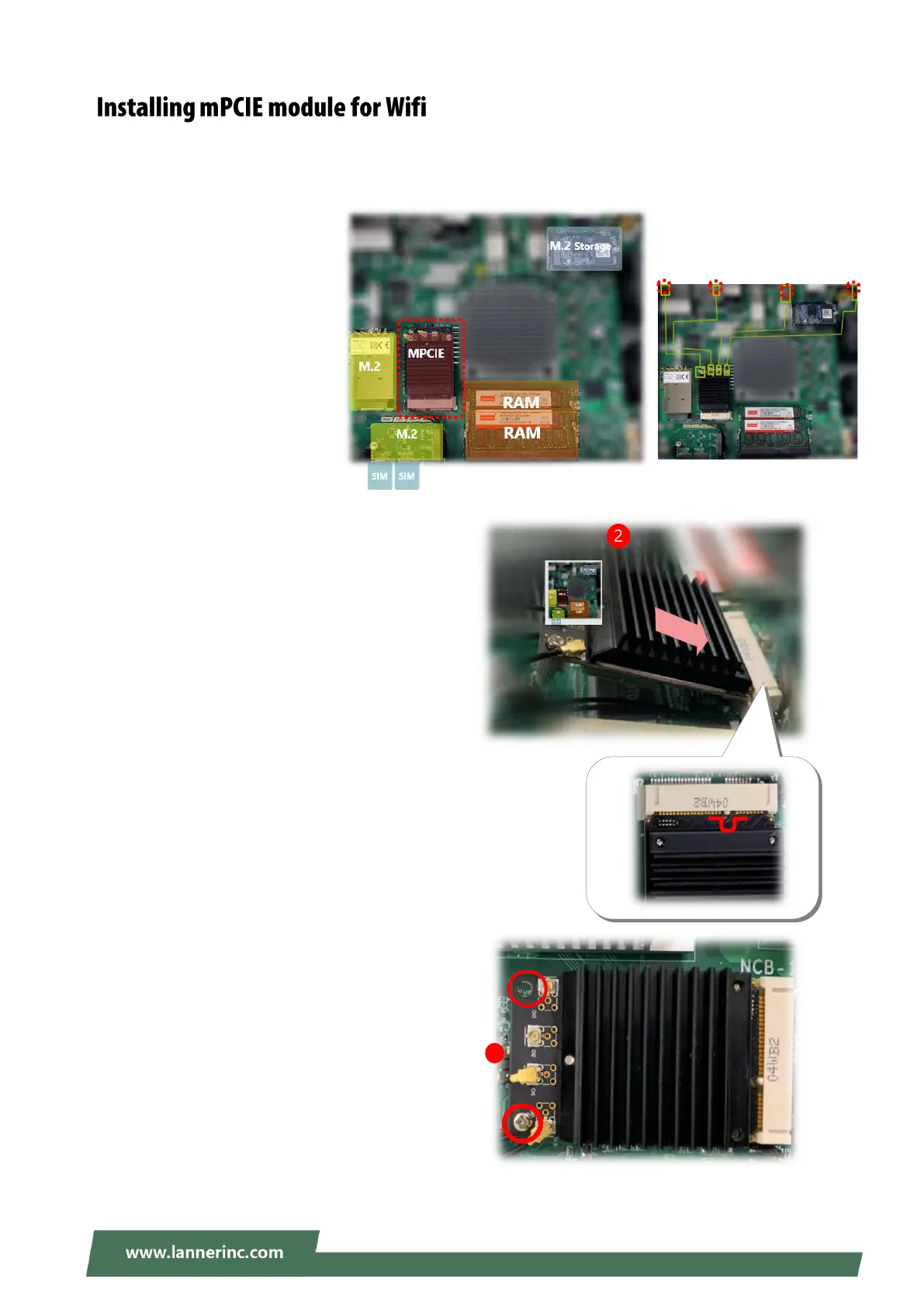

The motherboard supports one mPCIE slot for a WiFi module. Please follow the steps below to install the
WiFi module.
1. Locate the mPCIE slot.
2. Align the notches of the card with the socket
keys in the slot. Tilt the end of gold fingers down
while carefully inserting the card into the slot.
3. Fix the module with the screw provided in the
accessory pack.
3
2
Notch
