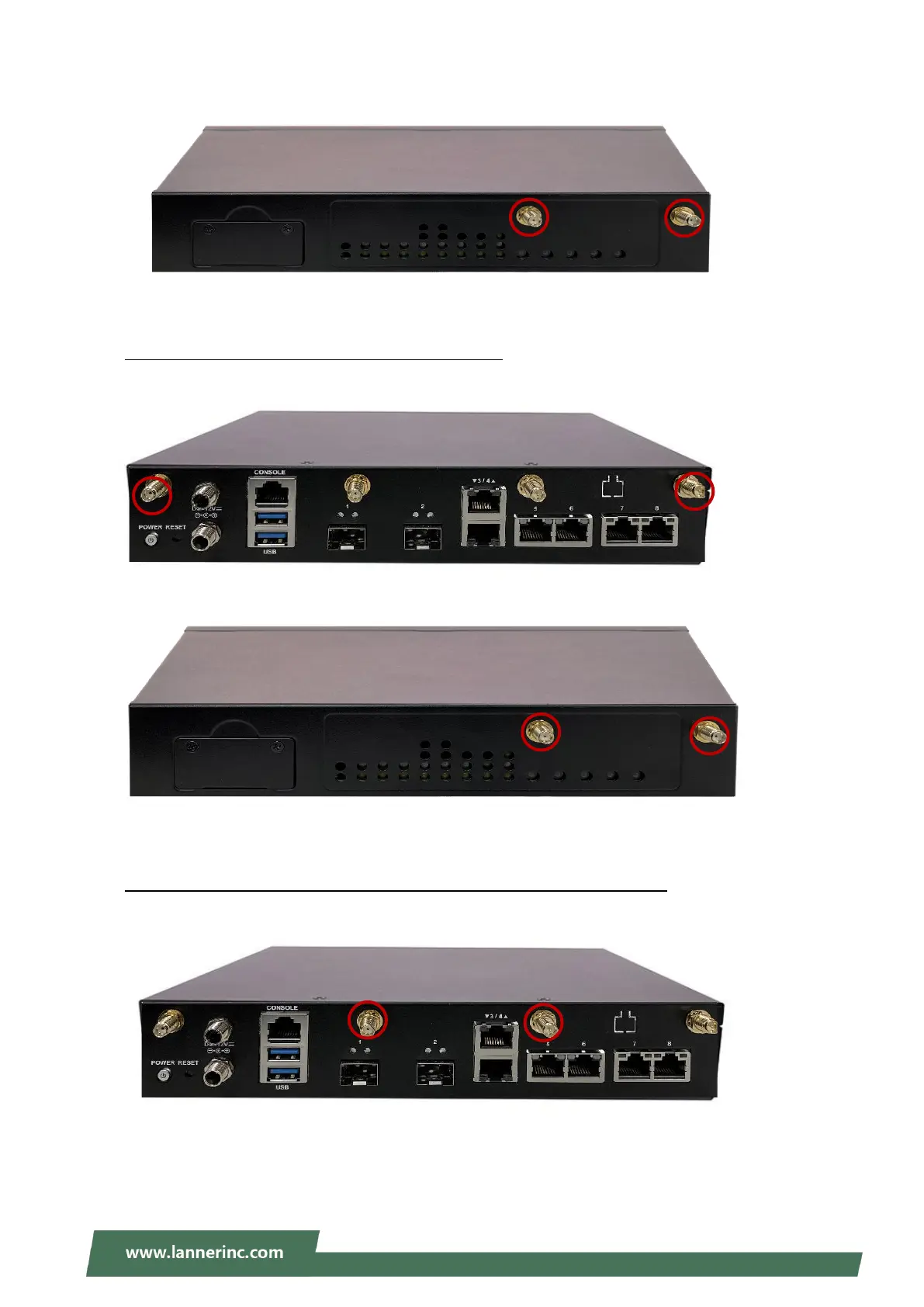

Lanner NCA-1516 - LTE and 5 G Antenna Placement; LTE Module Placement (Front;Rear); 5 G Module Placement (Front;Rear); 1 x WiFi 5 (Wave 1) Placement

NCA-1516 User Manual
31
C. Antenna Placement Optimization for 1x 5G module:
D. Antenna Placement Optimization for 1x WiFi 5 (802.11ac Wave 1) module:
5G Sub 6
5G Sub 6
5G Sub 6
5G Sub 6
WiFi 5 Wave 1
LTE 2 Main
LTE 2 Aux
Front Panel
Rear Panel
Front Panel
Rear Panel
WiFi 5 Wave 1
