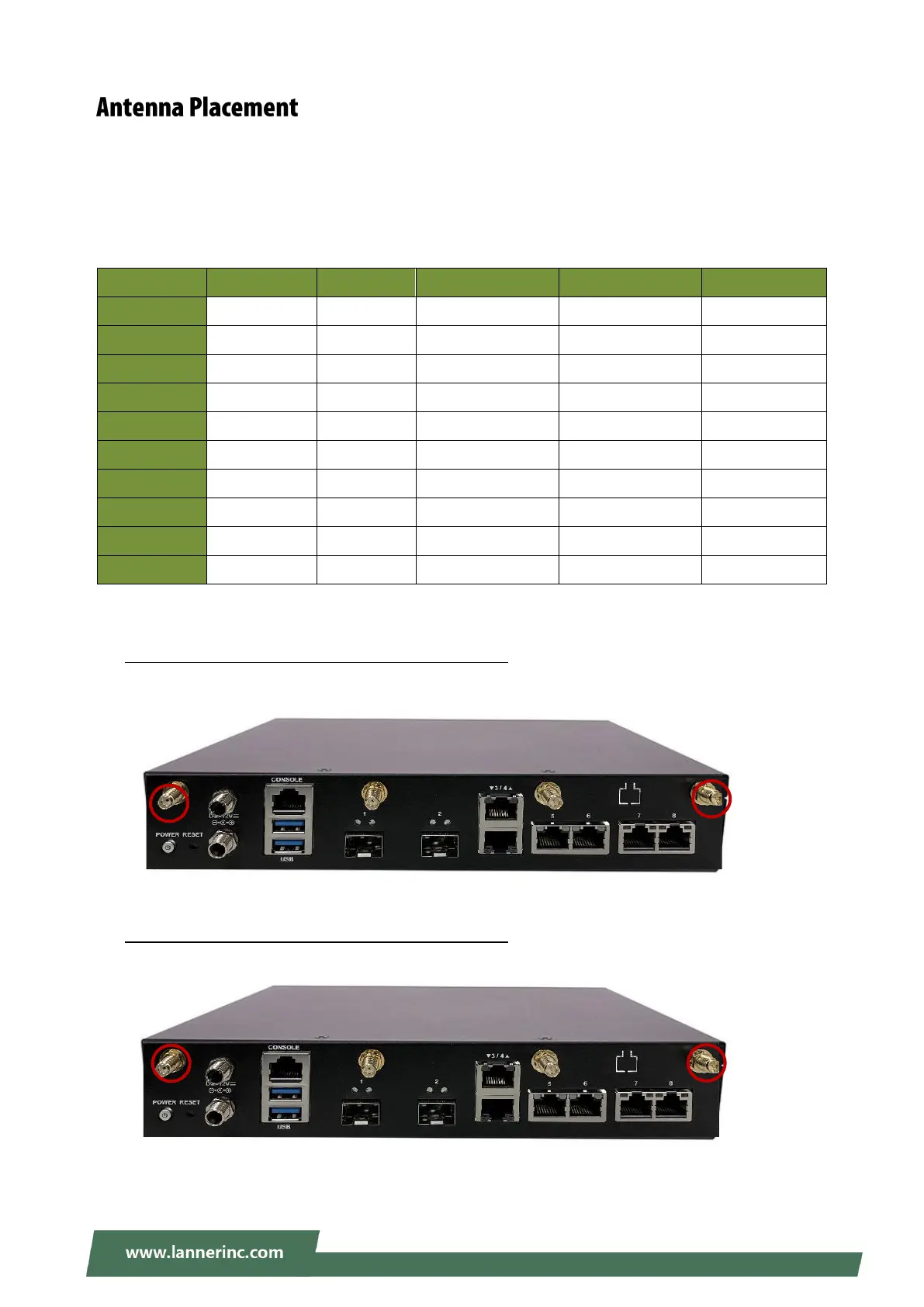

Lanner provides multiple options and customizations for our network appliances to suit all our customer’s
needs. NCA-1516 is compatible with many optional kits for 5G, LTE, and WiFi. Below is best suited antenna
placement to optimize coverage, and quality for 5G, LTE, and WiFi modules.
SKU/Module
LTE
5G
WiFi 5 Wave 1
WiFi 5 Wave 2
WiFi 6
A
V
B
Vx2
C
V
D
V
E
V
F
V
G
V
V
H
V
V
I
V
V
J
V
V
A. Antenna Placement Optimization for 1x LTE module:
B. Antenna Placement Optimization for 2x LTE module:
LTE Aux
LTE Main
LTE Aux
LTE Main
Rear Panel
Rear Panel
