Lansinoh Smartpump - Assembly Instructions; Assembling the Breastmilk Expression Set

10 11
8. Repeat assembly process for second
breast ange body.
4. ASSEMBLY

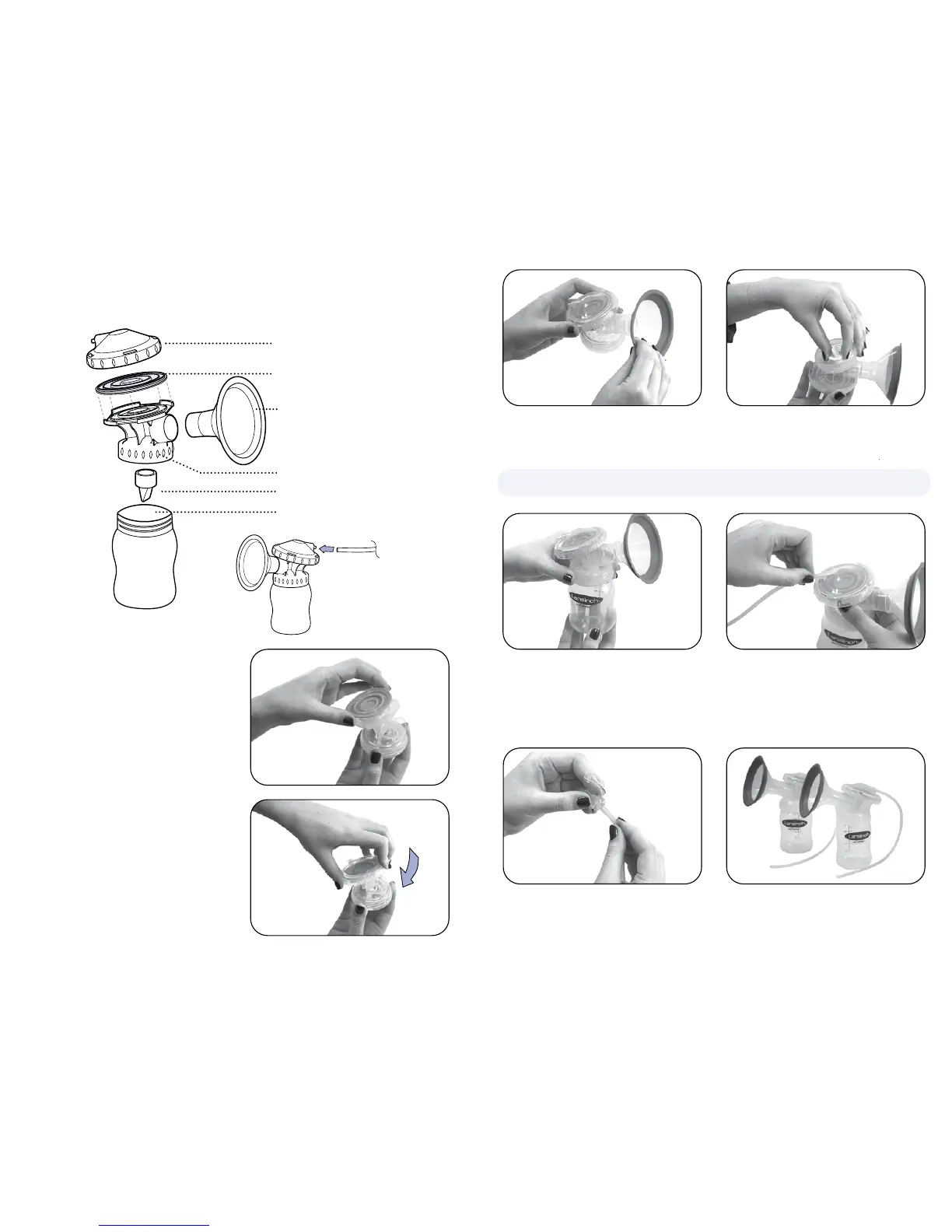

4.1 Assembling the Breastmilk Expression Set
1. Place purple silicone diaphragm,
arrow side up, on top of breast ange
body. Ensure diaphragm ts securely
between rims of breast ange body
and arrows point toward breast ange.
Diaphragm Cap
Diaphragm
ComfortFit
™
Breast Flange
White Valve
5 oz Breastmilk
Collection Bottle
Breast Flange Body
4. Holding the base of the white valve,
gently secure the valve into the
bottom of the breast ange body.
6. Attach end of 300 mm tubing to back
of diaphragm cap. Ensure that tubing
is pushed all the way to the base of
the attachment port and completely
covers it.
5. Screw collection bottle onto breast
ange body.
3. Firmly push ComfortFit
™
Flange into
breast ange body.
7. Attach other end of 300 mm tubing to
Tubing Y Connector.
2. Place clear diaphragm cap over
breast ange body and twist to
secure so that the tubing portal is
facing the back of the pump.
NOTE: Use care when handling and cleaning the small white valve.
