4: Quick Setup
SLC™ Console Manager User Guide 31
Method # 1 Using the Front Panel Display
Before you begin, ensure that you have:
Unique IP address that is valid on your network (unless automatically assigned)
Subnet mask (unless automatically assigned)
Gateway
DNS settings
Date, time, and time zone
Console port settings: baud rate, data bits, stop bits, parity, and flow control
Make sure the SLC console manager is plugged into power and turned on.
Front Panel LCD Display and Pushbuttons
With the SLC console manager powered up, you can use the front panel display and pushbuttons
to set up the basic parameters. Figure 4-2 shows the front panel.

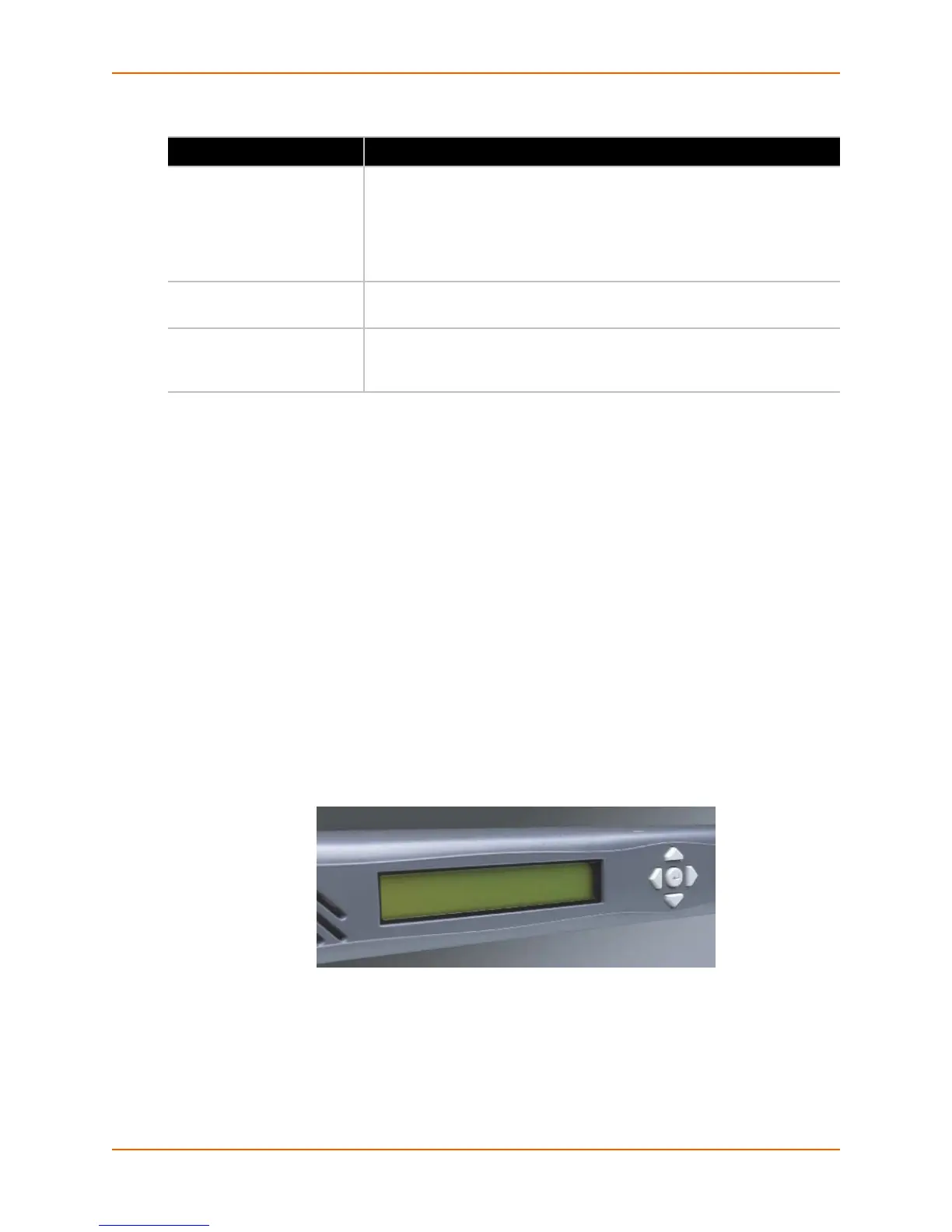

Figure 4-2 Front Panel LCD Display and Arrow Pushbuttons
The front panel display initially shows the host name and the date and time. Using the five
pushbuttons, you can change the network, console port, and date/time settings and view the
firmware release version. If desired, you can restore the factory defaults.
Note: Have your information handy as the display times out without accepting any
unsaved changes if you take more than 30 seconds between entries.
Detector™ A Windows-based application available for download at http://
www.lantronix.com/support/downloads/ for viewing a DHCP-provided IP
address or for assigning a static IP address to the SLC console manager.
You can use Detector only if you have not already assigned a static IP
address by another method. For more information, see Detector’s online
help.
Front panel LCD display
and pushbuttons
You manually assign the IP address and other basic network, console,
and date/time settings. If desired, you can restore the factory defaults.
Serial port login to
command line interface
You assign an IP address and configure the SLC console manager using
a terminal or a PC running a terminal emulation program to the unit’s serial
console port connection.
Table 4-1 Methods of Assigning an IP Address (continued)
Method Description
To Next Page
