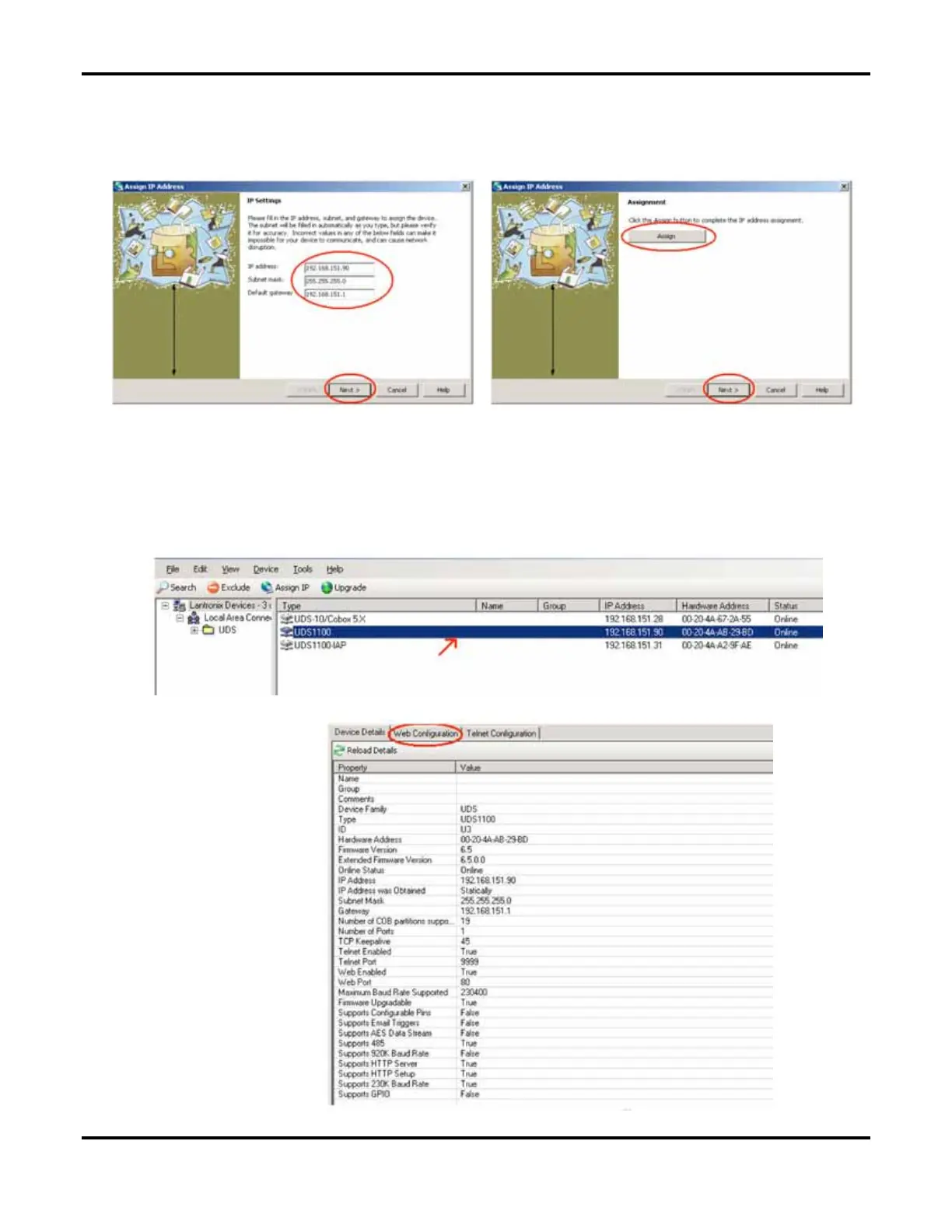

5. At the next window (Figure 11), enter your Static IP Address, Subnet Mask and Gateway,
and click “Next”.
6. At the next window (Figure 12), click “Assign”.
7. At the next window, click “Finish”.
8. You should now see the device you just programmed listed in the DeviceInstaller window
(Figure 13). Double click on your device to open the Configuration window (Figure 14).
Figure 11 Figure 12
Figure 13
Figure 14

Lantronix UDS1100 Specifications

General

Isolation	1.5 kV
Certification	UL, CSA, FCC, CE, TUV, CTick, VCC, UL 864 RoHS
Serial interface type	RS-232/422/485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Electrostatic Discharge (ESD) protection	15 kV
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Supported network protocols	ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP, Telnet, TFTP
Built-in processor	Lantronix DSTNI-EX
Processor frequency	48 MHz
Compatible operating systems	Windows 98/ME/NT/2000/XP
Flash memory	2 MB
RAM capacity	0.256 MB
LED indicators	LAN
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Input voltage	100 - 240 V

Weight and Dimensions

Weight	400 g
Dimensions (WxDxH)	72 x 23 x 95 mm
