Lanzar VIBE E540P - E740 v System Diagram

preamp equalizer

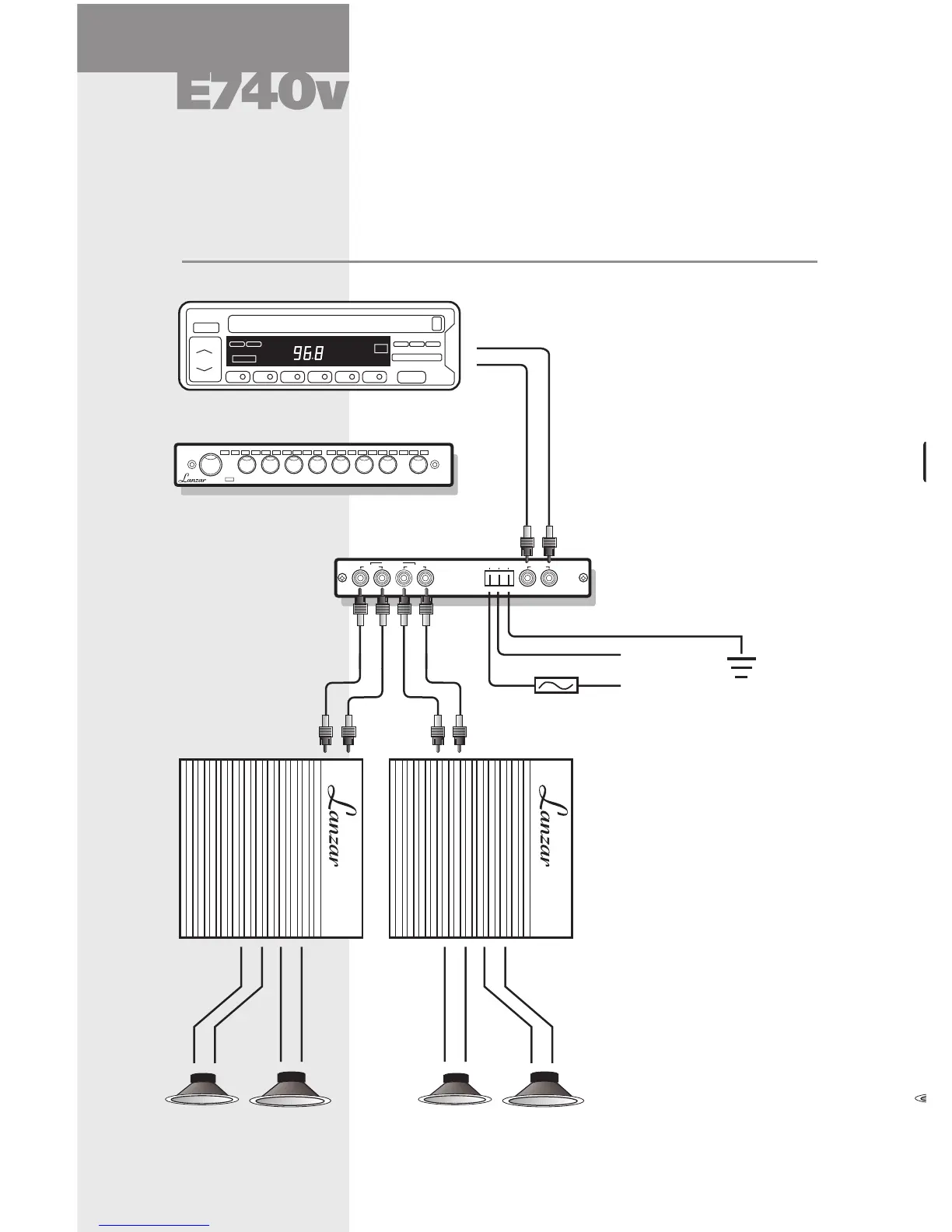

Basic 2-Amp/4-Speaker system application using the E740v
Head unit (Stereo, CD Player, Tape Deck, etc.)
E740v
LEFT output level RIGHT output level
volume
60Hz
–
+
150Hz
–+
400Hz
–+
1kHz
–+
2.4kHz
–+
6kHz
–+
15kHz
–+
front rear
fader
+12 Rem Gnd
INPUT
LR
FRONT
LR
REAR
LR
OUTPUT
Lanzar Vibe E740v Preamp Equalizer
REAR CHANNEL
Power Amplifier
FRONT CHANNEL
Power Amplifier
to Ground (Black)
to Remote On
(Orange)
to +12v Battery
(Red)
Left and Right
Line Inputs
Rear Panel
Left and Right
Line Outputs
from Head Unit
REAR CHANNEL
Speakers
FRONT CHANNEL
Speakers
16
Fuse: 1A
system diagram
–+
–+
–+
–+
+
