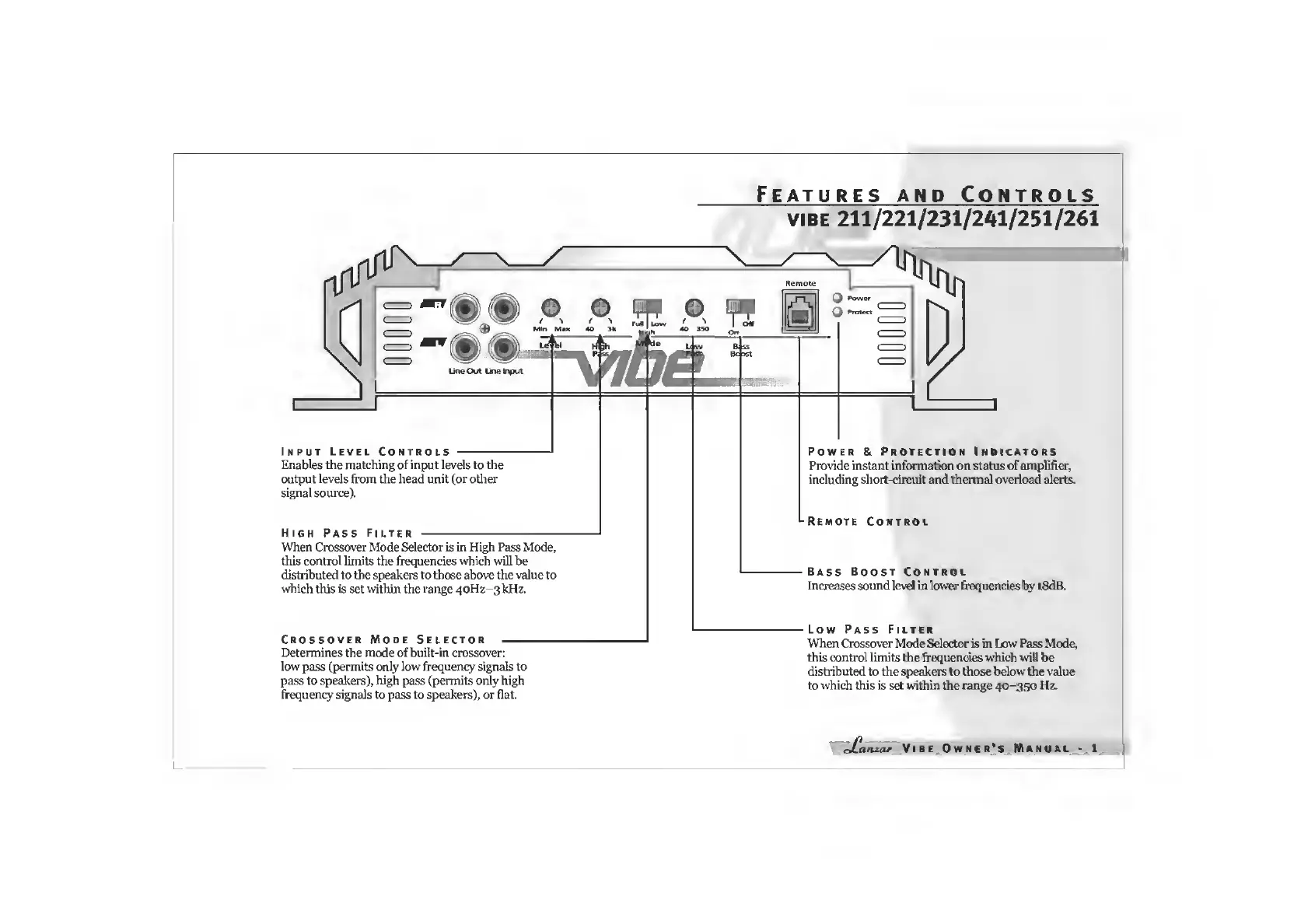

Features and Controls
VIBE 211 / 221 / 231 / 241 / 251/261
Input Level Controls
Enables the matching of input levels to the
output levels from the head unit (or other
signal source).
High Pass Filter
When Crossover Mode Selector is in High Pass Mode,
this control limits the frequencies which will be
distributed to the speakers to those above the value to
which this is set within the range 40HZ-3 kHz.
Crossover Mode Selector -
Determines the mode of built-in crossover:
low pass (permits only low frequency signals to
pass to speakers), high pass (permits only high
frequency signals to pass to speakers), or flat.
Power & Protection Indicators
Provide instant information on status of amplifier,
including short-circuit and thermal overload alerts.
l R e m o te Control
Bass Boost Control
Increases sound level in lower frequencies toy i8dB.
■ Low Pass Filter
When Crossover Mode Selector is in Low Pass Mode,
this control limits the frequencies which will be
distributed to the speakers to those below the value
to which this is set within the range 40-350 Hz.
