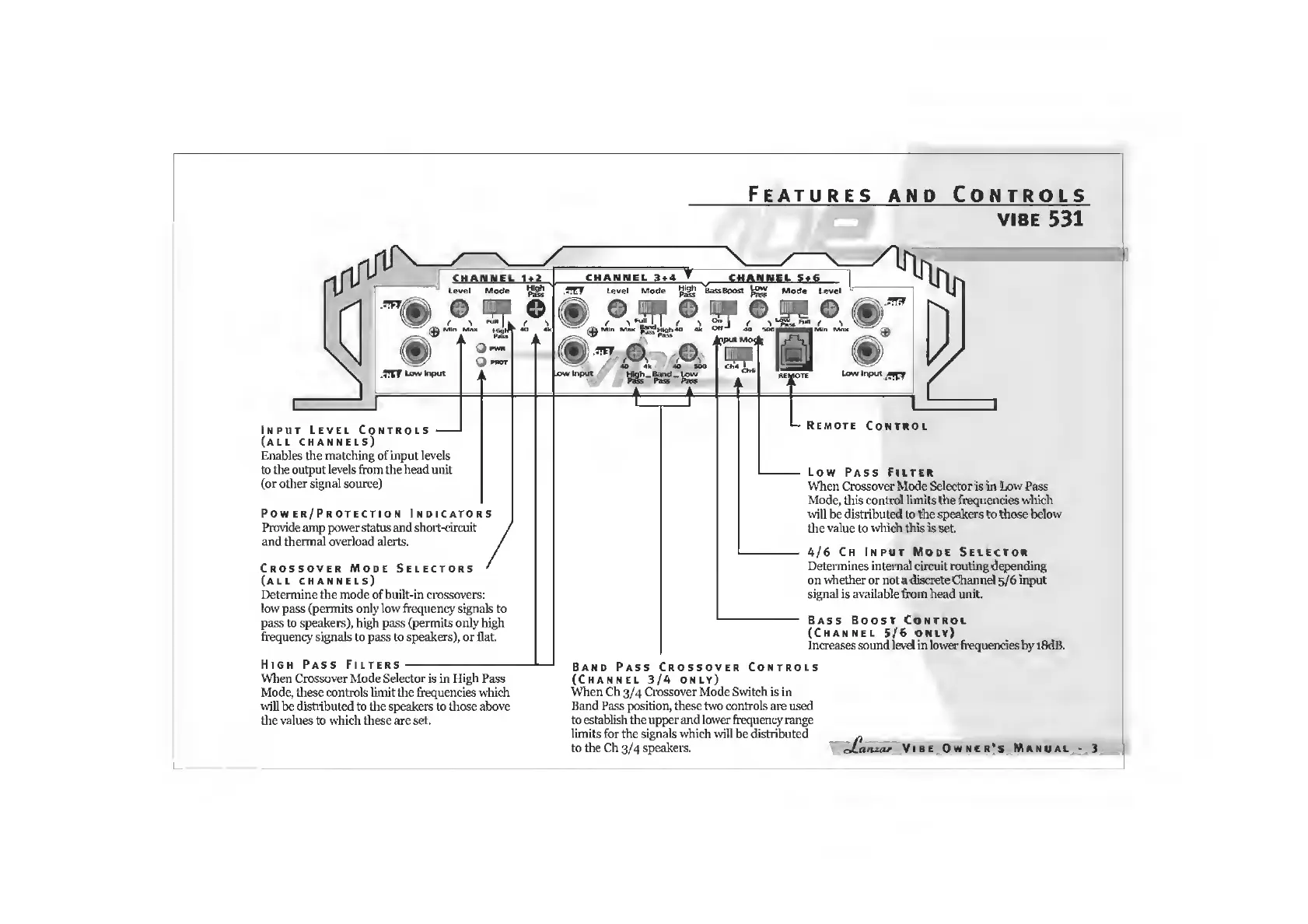

Features and Controls
vise 531
.9TTT Low Input
CHANNEL 1 -f 2
Level Mode ^*9*?
© m ©
( \ | k
Hln Mm Hkjl^
^ Q PWH
Q WOT
A
Input Level Controls-
(all channels)
Enables the matching of input levels
to the output levels from the head unit
(or other signal source)
Power/Protection Indicators
Provide amp power status and short-circuit
and thermal overload alerts. /
Crossover Mode Selectors '
(all channels)
Determine the mode of built-in crossovers:
low pass (permits only low frequency signals to
pass to speakers), high pass (permits only high
frequency signals to pass to speakers), or flat.
High Pass Filters-
When Crossover Mode Selector is in High Pass
Mode, these controls limit the frequencies which
will be distributed to the speakers to those above
the values to which these are set.
Low Input
CHANNEL 3+4
Mode High ^ Boost ££
Mode Level
Min Mum Ok Ott
ft- © ^
mm
Ch4 L -
500
High _ Band _ Low
Pass Pass Pass
± ±
Low Input
Remote Control
Low Pass Filter
When Crossover Mode Selector is in Low Pass
Mode, this control limits the frequencies which
will be distributed to the speakers to those below
the value to which this is set.
4/6 Ch Input Mode Selector
Determines internal circuit routing depending
on whether or not a discrete Channel 5/6 input
signal is available from head unit.
Bass Boost Control
(Channel 5/6 only)
Increases sound level in lower frequencies by i8dB.
Band Pass Crossover Controls
(Channel 3/4 only)
When Ch 3/4 Crossover Mode Switch is in
Band Pass position, these two controls are used
to establish the upper and lower frequency range
limits for the signals which will be distributed
to the Ch 3/4 speakers.
X
anzar Vibe Owner’s Manual - 3
