3.5. UPS Setting
There are three parameters to set up the
UPS.

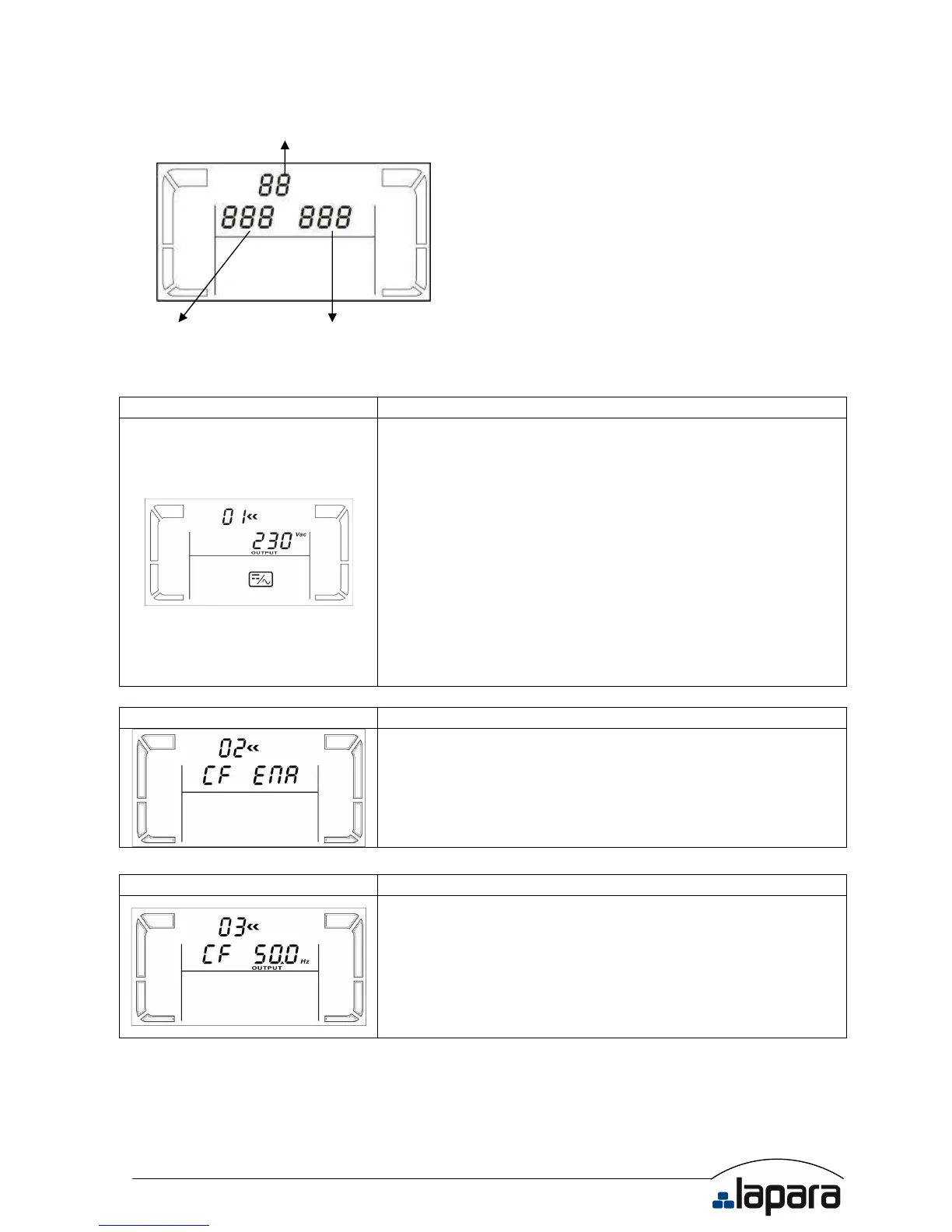

Parameter 1: It’s for program alternatives.
There are 10 programs to set up. Refer to
below table.
Parameter 2 and parameter 3 are the
setting options or values for each
program.
 01: Output voltage setting
Interface
Setting
Parameter 3: Output voltage
For 200/208/220/230/240 VAC models, you may choose the
following output voltage:
200: present output voltage is 200Vac
208: present output voltage is 208Vac
220: present output voltage is 220Vac
230: present output voltage is 230Vac (Default)
240: present output voltage is 240Vac
For 100/110/115/120/127 VAC models, you may choose the
following output voltage:
100: present output voltage is 100Vac
110: present output voltage is 110Vac
115: present output voltage is 115Vac
120: present output voltage is 120Vac (Default)
127: present output voltage is 127Vac
 02: Frequency Converter enable/disable
Interface
Setting
Parameter 2:
Enable or disable converter mode. You may choose
the following two options:
CF ENA: converter mode enable
CF DIS: converter mode disable (Default)
 03: Output frequency setting
Interface
Setting
Parameter 2: Output frequency setting.
You may set the initial frequency on battery mode:
BAT 50: present output frequency is 50Hz
BAT 60: present output frequency is 60Hz
If converter mode is enabled, you may choose the following output
frequency:
CF 50: present output frequency is 50Hz
CF 60: present output frequency is 60Hz
Parameter 1
Parameter 2 Parameter 3
