LARIUS 2 - painting
English
G8
G2
G4
G1
G2
G3
G5
G9
G7
G10
G6
G

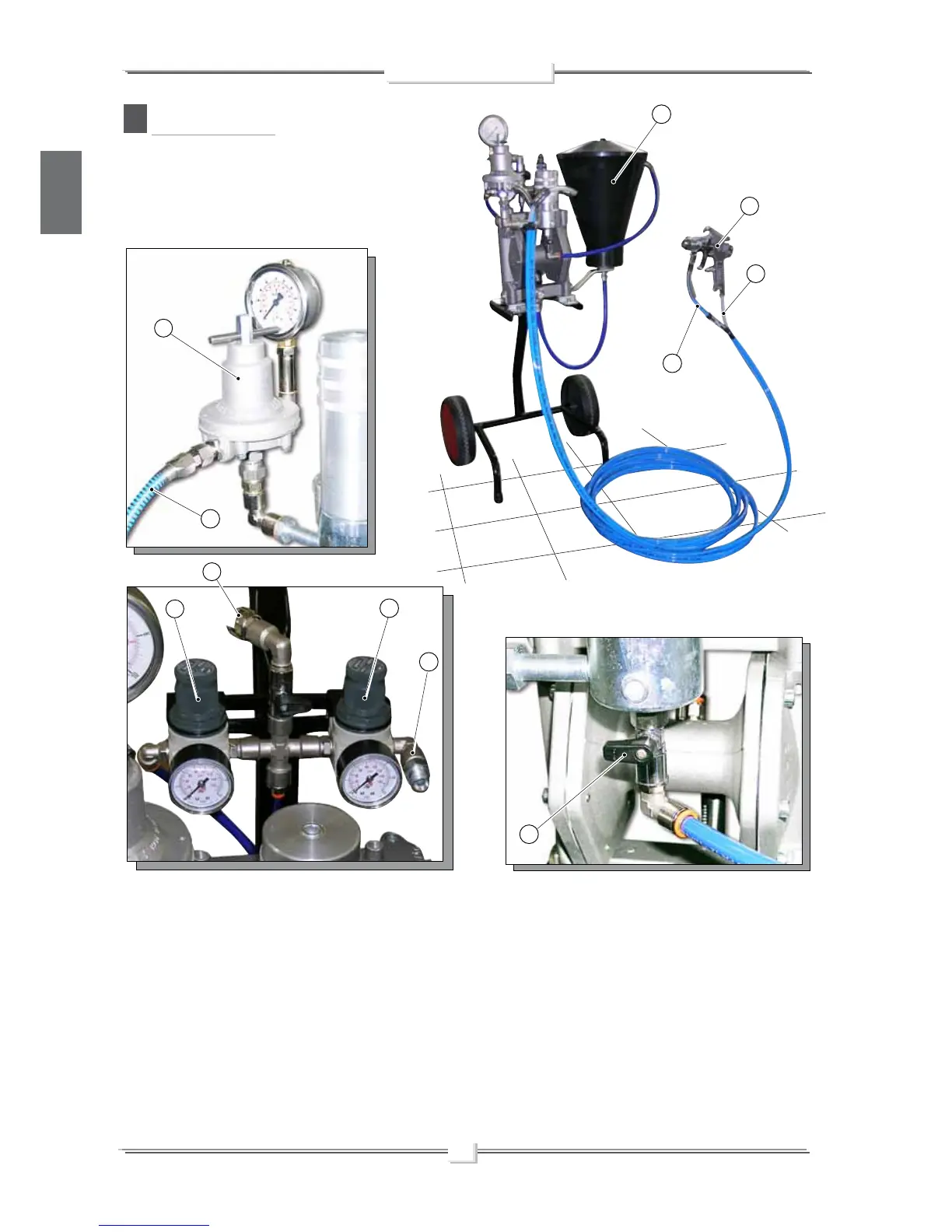

OPERATION
START OF THE PAINTING OPERATIONS
• Use the tooling after performing all the SETTING UP operations
above described.
• Fill tank (G1) with pure and perfectly filtered product.
• Connect up the product hose (G2) from the spray gun (G3)
to the flow regulator (G4).
• Connect up the air hose (G5) from the spray gun (G3) to the
coupling (G6).
• Connect the compressed air plant to the quick connection
(G7); the pressure must be of roughly 6 bar, max. 7,5 bar.
• Open the recycling tap (G8).
• Start pump by means of the knob (G9); the pump will be set
to work. Let the product recycle for a short period (2 minutes)
and then close the recycling tap (G8).
• Set the atomizing air pressure by means of the knob
(G10).
• Make a spraying test.
• The pump is now ready to work.
