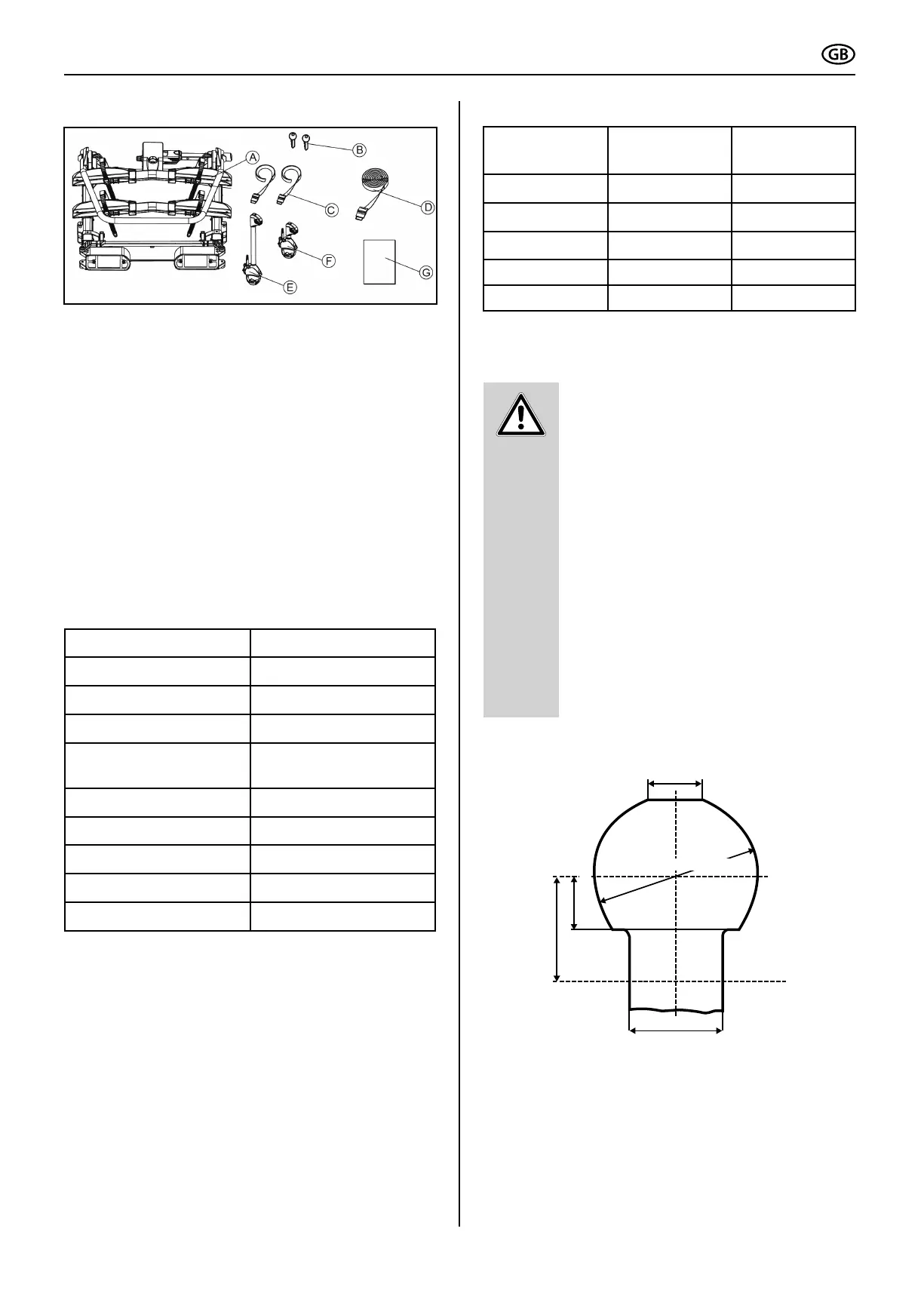

LAS SD260 - Scope of Delivery; Technical Specifications; Coupling Requirements

21
Scope of delivery
Coupling Requirements
Technical specications
DANGER!
The tow hitch breaking can cause injury to
people.
The coupling may break as a result of tting the
bicycle carrier on a coupling in a material that is too
soft.
A = bike carrier
B = 2 keys
C = 2 safety straps for front wheels
D = 1 Safety strap for bicycle frame
E = frame holder long
F = frame holder short
G = assembly instruction and safety regulations
The bike carrier is suitable for the transport of two bicycles at most.
Please check the maximum permissible ball load. You can nd it on
the identication plate of the tow bar of your car
Material:
Steel/aluminium
No of bicycles
2
Net weight:
approx. 20,5 kg
Max. load:
60 kg
Load capacity per wheel rail
(max.)
30 kg
Wheel base (max.)
130 cm
Rail gap
24 cm
Max. tyre width up to
3,25 inches
Slidable
Yes
Dimensions (WxHxD):
approx.108 x 75 x 60 cm
Fit the bicycle carrier only on tow hitches with the following
properties:
Material: ............................... Min. St52 steel or GGG52 grey cast iron
Tow ball: Ø50mm (class A-50 according EC 94/20 or ECE R55)
D-value.................................................................... ≥ 7,6 kN
Fit the bicycle carrier only on a coupling made
of St52 steel, GGG52 grey cast iron or better
quality.
4
Never t the carrier on a coupling made of
aluminium, other light metals or plastic.
4
Unpack all the components and check for the presence of all parts.
The total weight of the bike carrier with the bicycles cannot exceed
the maximum permissible ball load of the tow bar.
Max. permissible
ball load
Weight bike carrier Max. carrying
capacity
50 kg 20,5 kg 29,5 kg
60 kg 20,5 kg 39,5 kg
75 kg 20,5 kg 54,5 kg
90 kg 20,5 kg max. 60 kg
120 kg 20,5 kg max. 60 kg
Only suitable for use on the coupling of a
passenger car.
4
Note the instructions of the coupling
manufacture.
4
min. 32 mm
ø 15 - 19 mm
ø 27 - 29 mm
ø 49,61 - 50 mm
min. 15 mm
