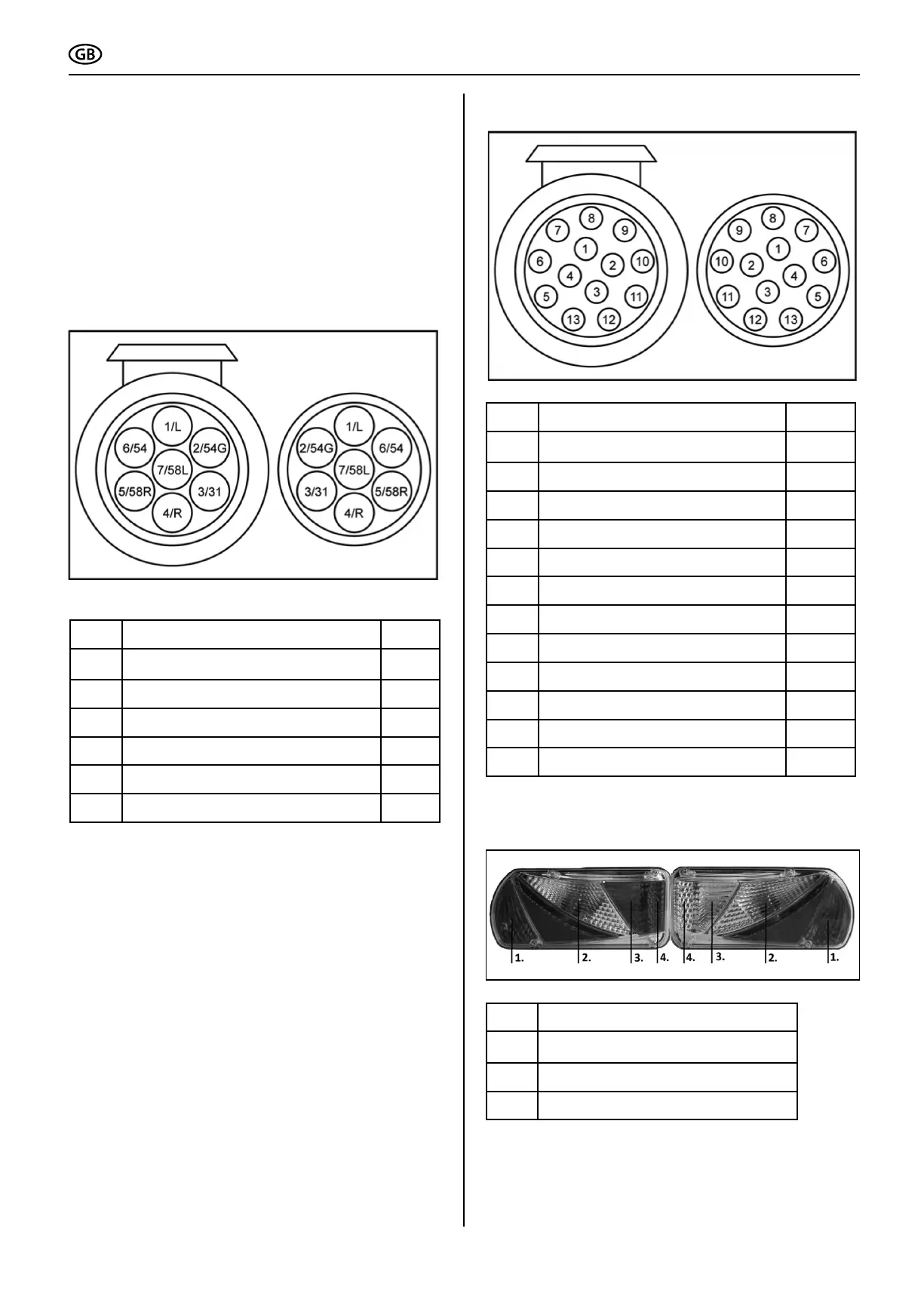

Plug assignment
The bicycle carrier is equipped with a lighting system. This is
connected to the socket on the trailer coupling with a 13-pin plug.
If your vehicle has a 7-pin connection instead of a 13-pin one, the
corresponding assignments are listed below. This information is
only for the retro tting by a specialised dealer. A retro tting by
non-trained persons is not permitted.
7 Pin
13 Pin
The reversing light is not working via the 7-pin plug!
12 V Bulb
1 12 V 21/5 W BAY15d
2 12 V 21 W BAY 15d orange
3 12 V 21 W BAY 15d
4 12 V C5 W
1/L Turn signal light, left
yellow
2/54G Rear fog light
blue
3/31 Earth
white
4/R Turn signal light, right
green
5/58R Taillight , right
brown
6/54 Brake light
red
7/58L Taillight , left
black
1 Turn signal light, left
yellow
2 Rear fog light
blue
3 Earth
white
4 Turn signal light, right
green
5 Taillight , right
brown
6 Brake light
red
7 Taillight , left
black
8 Reserving light
grey
9 Not assigned
10 Not assigned
11 Not assigned
12 Earth
13 Not assigned
