QUICK USER GUIDE DVD-HD010

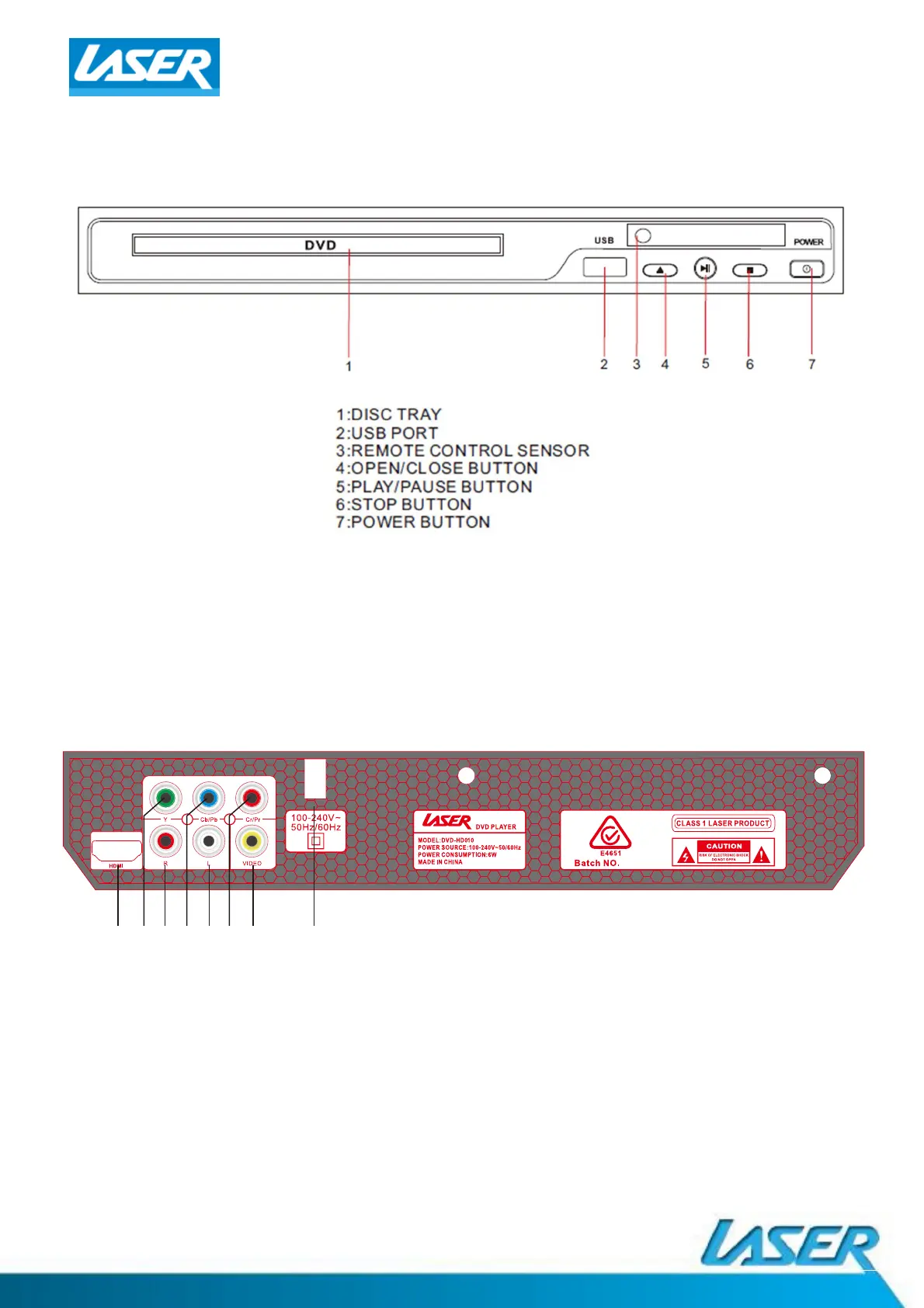

THE FRONT PANEL
THE REAR PANEL
1: HDMI OUT
2: COMPONENT OUT (GREEN)
3: COMPOSITE OUT (RED)
4: COMPONENT OUT (BLUE)
5: COMPOSITE OUT (WHITE)
6: COMPONENT OUT (RED)
7: COMPOSITE OUT (
YELLOW )
8: MAINS POWER INPUT
1
2
3 4
5 6 7
8
