LaserLine 996 kit - DIAGRAM 3; Central Door Locking Wiring Details

ENGLISH
22
PLACE DIP SWITCHES BEFORE MAKING CONNECTIONS
DIAGRAM "3/B"
POSITIVE POLE TYPE
DIAGRAM "3/A"
NEGATIVE POLE TYPE
PLACE DIP SWITCHES BEFORE MAKING CONNECTIONS
DIP SWITCH NO. 2 OFF: 1 SECOND PULSE
DIP SWITCH NO. 2 ON: 3 SECONDS PULSE
DIP SWITCH NO. 1 ON: 25 SECONDS PULSE (lock only)
DO NOT USE LIGHT BLUE/BLACK AND RED/BLACK WIRES
DIP SWITCH NO. 2 OFF: 1 SECOND PULSE
DIP SWITCH NO. 2 ON: 3 SECONDS PULSE
DIP SWITCH NO. 1 ON: 25 SECONDS PULSE (lock only)
DO NOT USE LIGHT BLUE/BLACK AND RED/BLACK WIRES

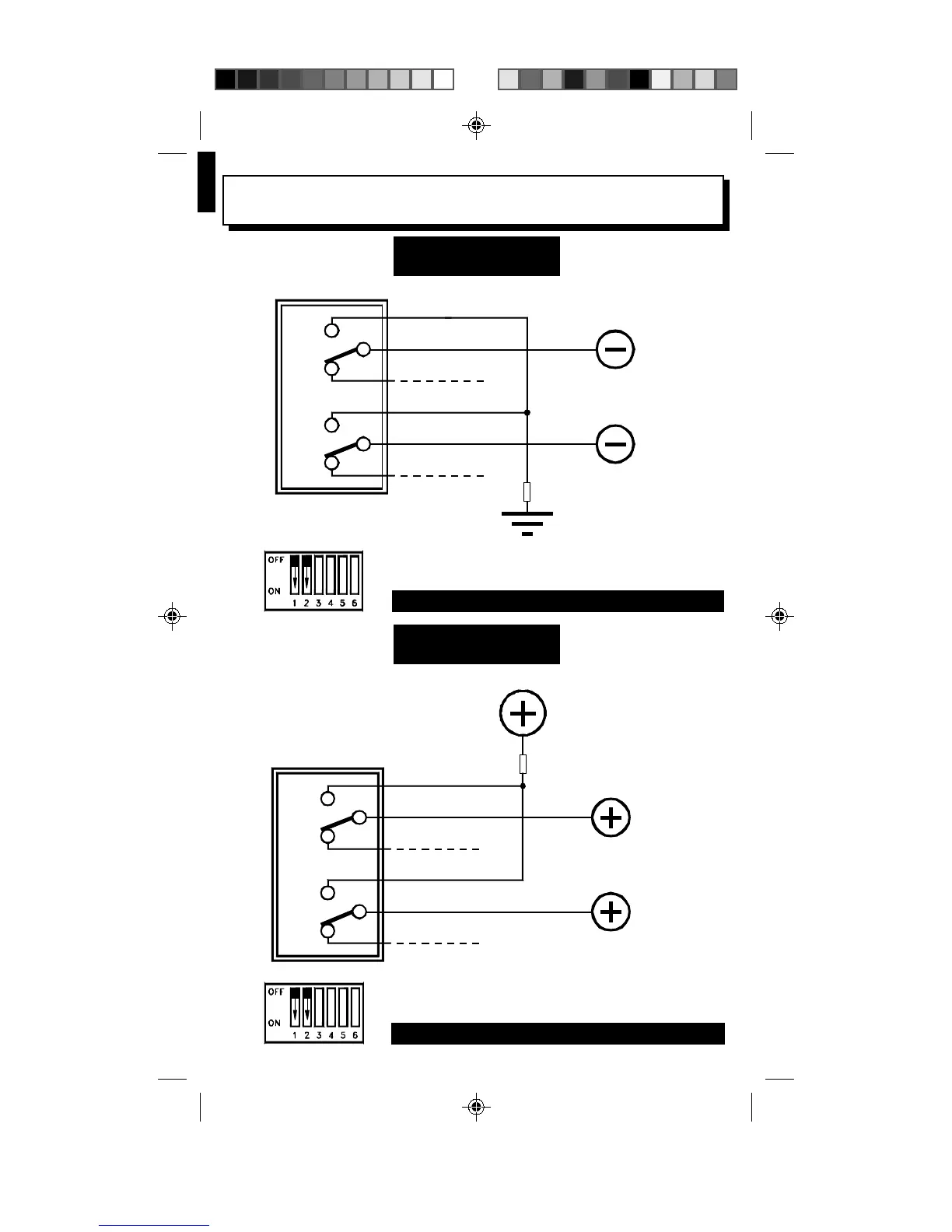

DIAGRAM 3
CENTRAL DOOR LOCKING
GREEN-BLACK
GREY-BLACK
FOR LOCKING
FOR UNLOCKING
BROWN-BLACK
YELLOW-BLACK
ALARM
SYSTEM
GROUND
LIGHT BLUE-BLACK
RED-BLACK
FUSE
GREEN-BLACK
GREY-BLACK
FOR LOCKING
FOR UNLOCKING
BROWN-BLACK
YELLOW-BLACK
ALARM
SYSTEM
POSITIVE +12V
LIGHT BLUE-BLACK
RED-BLACK
FUSE
