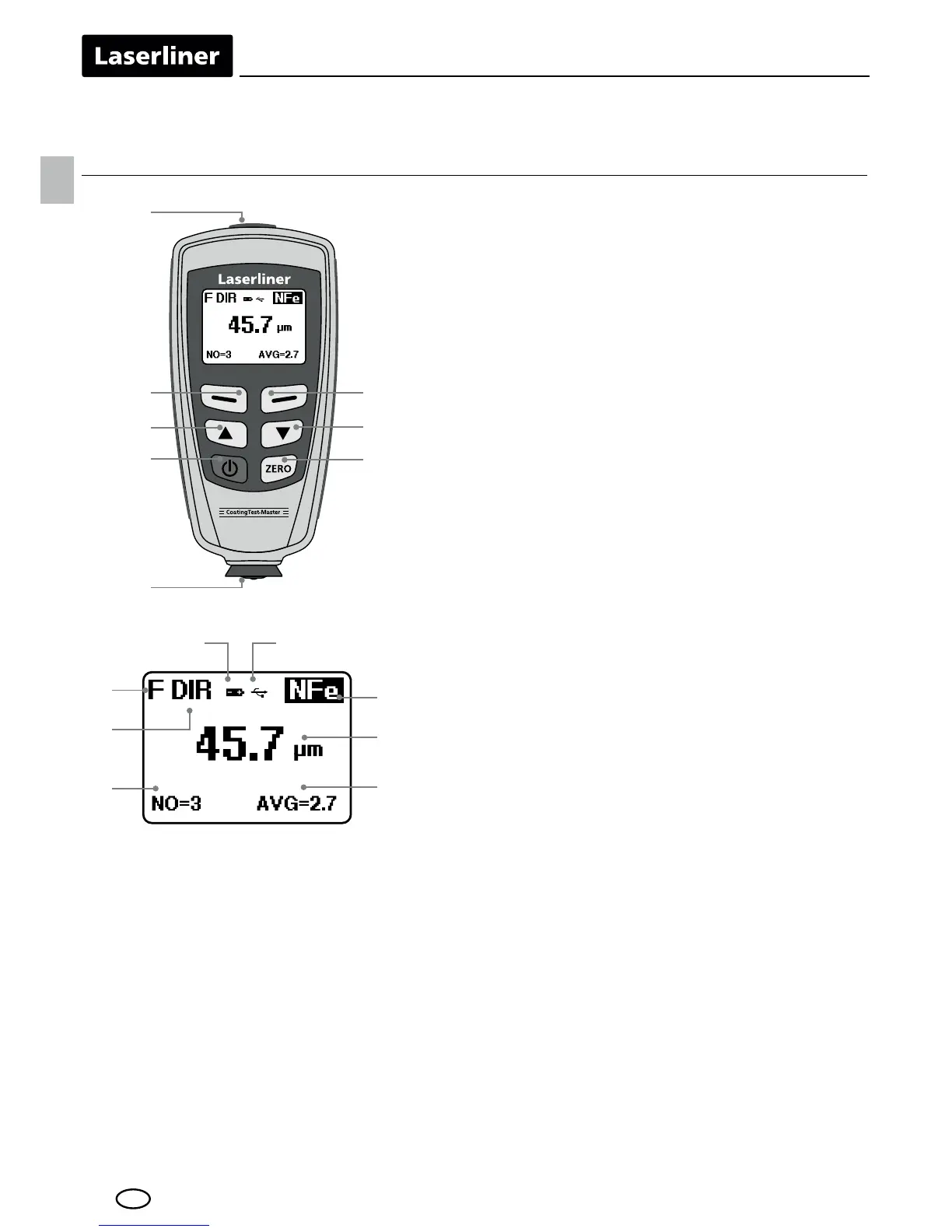

a
NFe-display: non-ferromagnetic metals
Fe-display: ferromagnetic metals
b
Measurement / unit
c
Statistical display:
AVG, MAX, MIN, SDEV
d
Statistical number of measured values
e
Work mode: Direct (DIR), Group (GRO)
f
Measuring principle: N (eddy current
principle), F (magnetic induction
principle)
g
Low battery charge
h
USB connection active
1 Menu mode: Cancel (ESC), back LCD
illumination on/off
2
Navigation key down / right
3
Zero calibration
4
Measuring head / sensor
5
ON/OFF
6
Navigation key up/left
7
,DMT2DKDBSHNMBNMÖQL
8
USB interface
– The measuring accuracy may be affected when working close to high
UNKS@FDRNQGHFGDKDBSQNL@FMDSHB@KSDQM@SHMFÖDKCR
