LaserLiner LaserRange-Master Gi5 User Manual

14
–
+
–
+
g
b
f
a
i
e
d
h
c
j
m
p
s
k
n
q
l
o
r

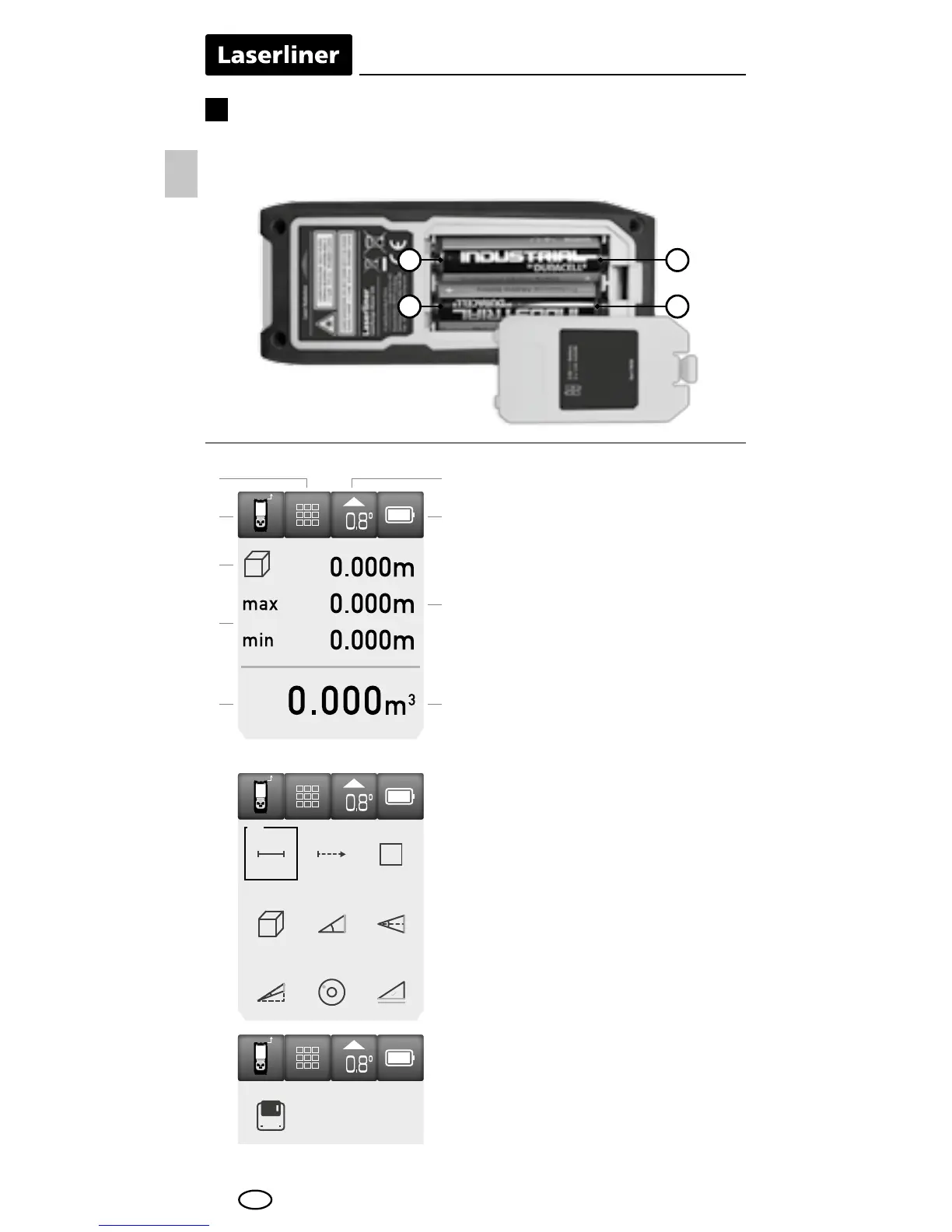

DISPLAY:
a Function display
b Measurement point (reference)
rear / front
c Display min./max. continuous
measurement / area / volume /
angle function 1 + 2 + 3
d Min/max continuous measurement
e Measurement values /
measurement results /
malfunction / service required
f Slope angle device
g Battery symbol
h Intermediate values /
min/max values
i Unit m / inch / ft
j Length measurement
k Min/max continuous
measurement
l Area measurement
m Volume measurement
n Angle function 1
o Angle function 2
p Angle function 3
q Digital bubble level
r Tilt sensor calibration
s Memory
Inserting batteries
1
Open the battery compartment and insert batteries (2 x typ AA)
according to the symbols. Be sure to pay attention to polarity.
EN
