RF Explorer User Manual page 38

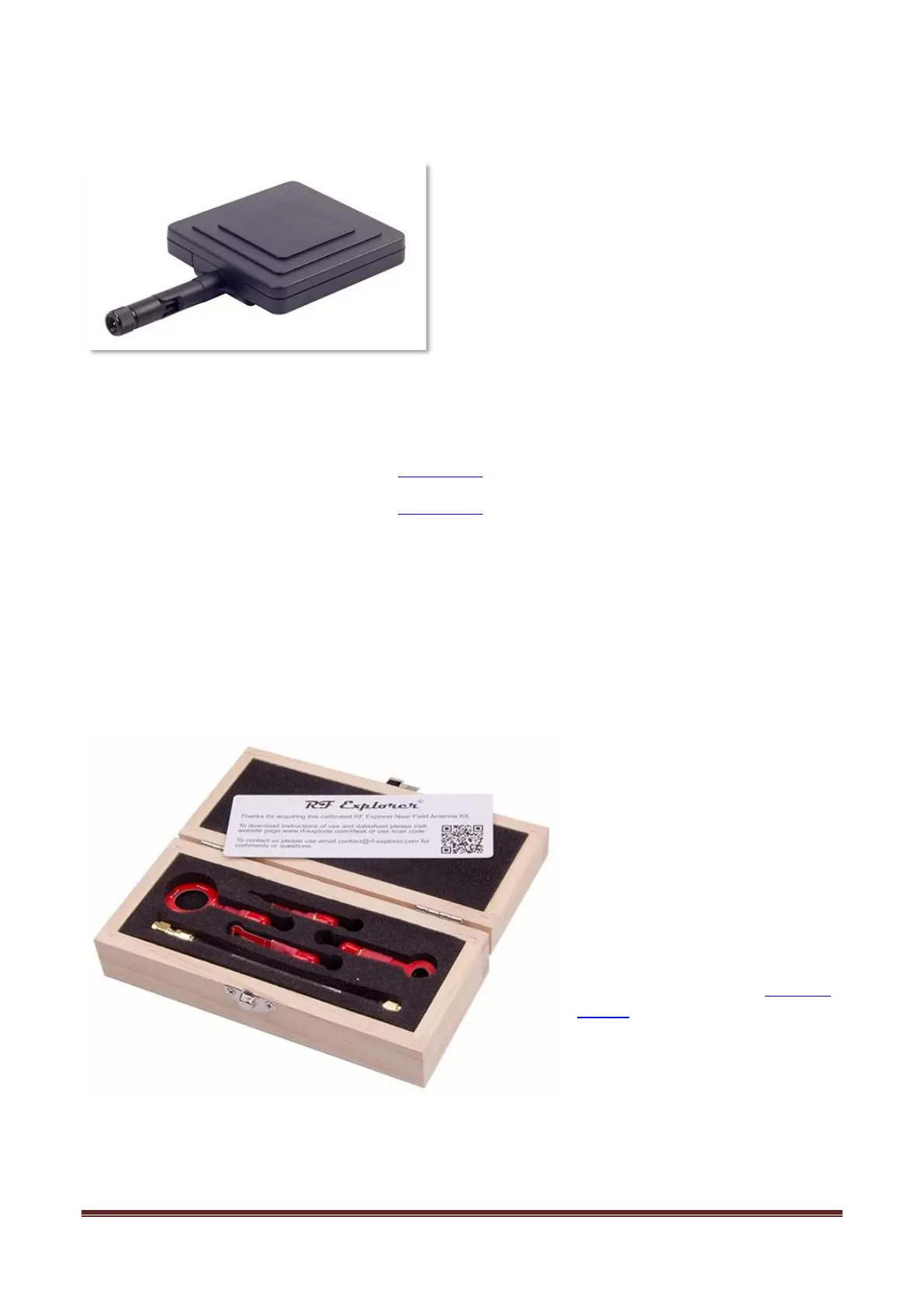

Directional Patch SMA Articulated Antenna, versions for 5.8Ghz and 2.4Ghz
The directional patch antenna is a high gain, excellent
choice to use RF Explorer analyzer to scan in a specific
direction. As opposed to omnidirectional antennas such
as dipole type, this patch antenna has an 8dBi gain in
the front face. It includes a true SMA connector (not RP-
SMA as most in the market) and therefore fits perfectly
in all RF Explorer models.
This antenna is suggested for high sensitivity detection of RF sources with RF Explorer Spectrum Analyzer,
including distant transmitters, focus and orientate antennas or find nearby hidden bug devices. It is also
perfect to find your lost drone or RC plane as long as still transmit valid signal.
For more details and ordering 2.4Ghz version visit this link.
For more details and ordering 5.8Ghz version visit this link.
RF Explorer Near Field antennas
The RF Explorer Near Field Antenna Kit is a set of 4 high performance antennas designed for the most
demanding RF diagnosis tasks:
• RFEAH-25 – H-Loop magnetic 25mm diameter
• RFEAH-15 – H-Loop magnetic 15mm diameter
• RFEAH-5 – H-Loop magnetic 5mm diameter
• RFEAE-10 – E-Field stub 10mm length
The low loss design of these antennas
exhibits at least 10dB more sensitivity
than other near field antennas in the
market, at a much lower cost.
Compared with other near field
antennas, RF Explorer are smaller and
lighter, exactly what fits best when
space is constrained in a PCB.
A brief description of the kit is
included below. For further details
and datasheet, please visit dedicated
site link.
