RF Explorer User Manual page 8
The RF Explorer Plus models includes 9 functional buttons in the front side, including context sensitive HELP
and easy preset handling with SET button, and a silicone rubber protector. The unit also includes at least one
RF connector 50 ohm impedance standard SMA format.
All models have a SMA left connector installed and, optionally, some models have a second SMA connector at
the right position for extended range and functionality. For more details see the section Expansion Modules in
page 34.
The unit will automatically start running on USB power when a compatible mini-USB cable is connected.
Important: The internal battery power switch must be in the ON position for the battery to charge when the
USB cable is connected. The internal battery will not charge when the power switch is in the OFF position.
Note: There are a number of SMA adapters to easily interface RF Explorer SMA connector to any other
standard RF connector format, including BNC, N, RP-SMA, etc. For more information of adapters available see
section
RF Explorer accessories
in page 49.

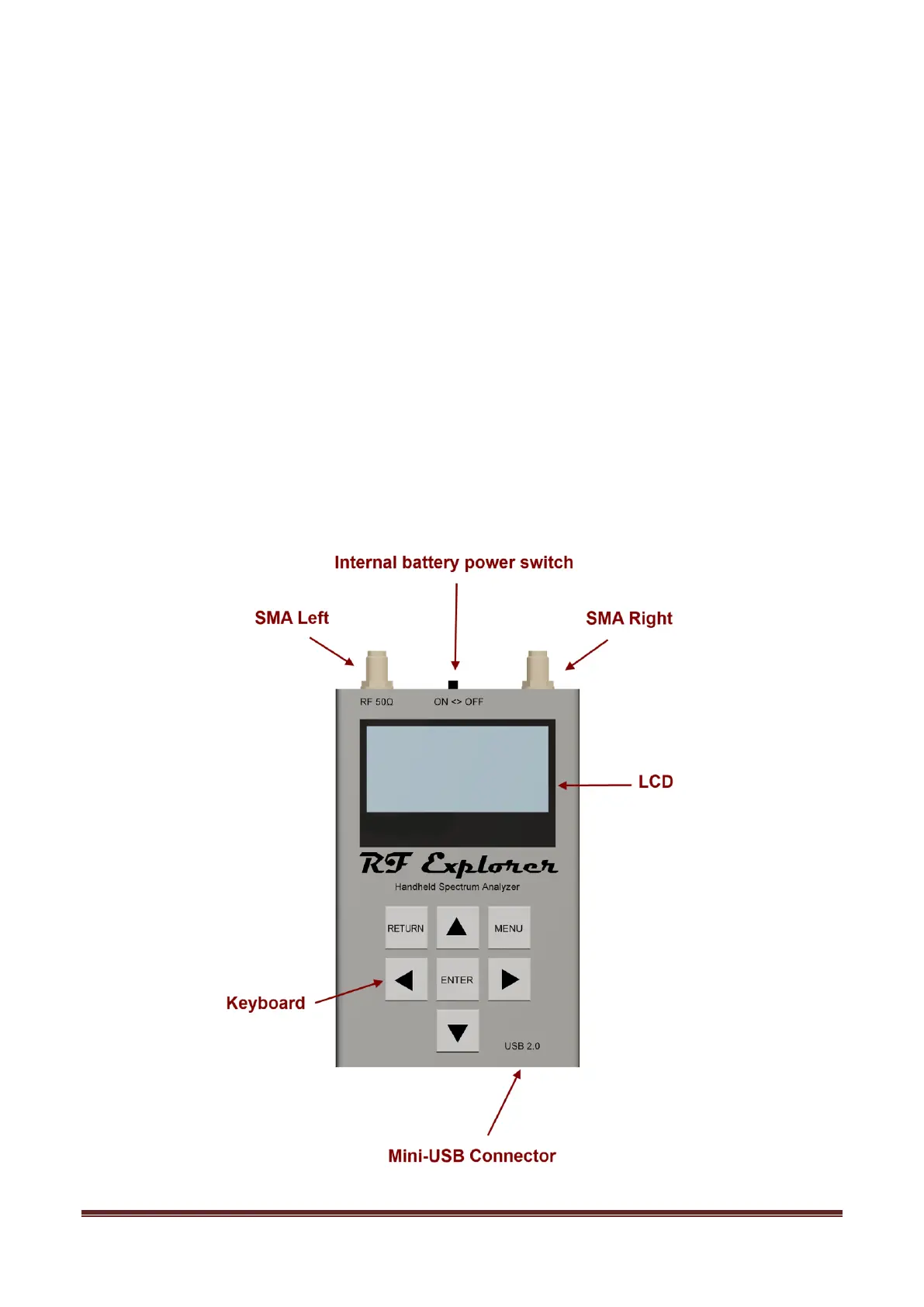

Understanding RF Explorer Standard model
