INVERTER OPERATION

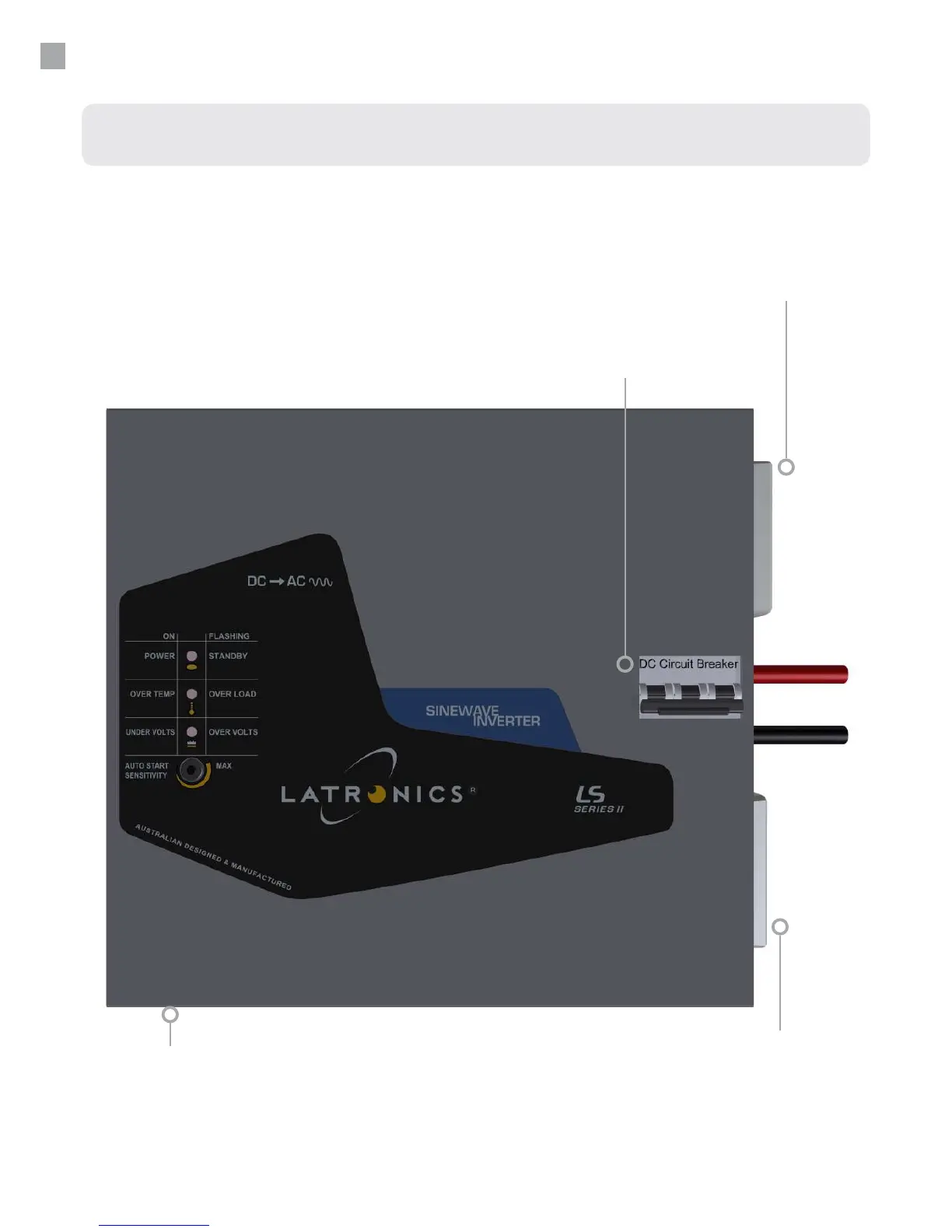

Inverter Features
Circuit Breaker ON/OFF Switch
The circuit breaker is designed for ease of operation and safety. By pushing
the switch “UP”, the battery supply is connected to the inverter. The circuit
breaker will turn OFF automatically if too large a load is left on the inverter
continuously. Reset the switch after allowing approximately 5 minutes to cool.
If the inverter shuts down due to over load, under volts or over volts it can be
reset by turning the circuit breaker OFF, waiting 10 seconds (or until LED goes
out), then turning it on again.
Fan
If the temperature inside the inverter reaches preset levels,
the dual speed fan will switch on initially in low speed
and then into high speed if the temperature continues
to increase. Obstruction of the air intake and output will
reduce the power rating of the inverter.
3 Terminal Input Junction Box
For connection of a.c. input power e.g. from
generator.
(Available only on KX model inverters).
3 Terminal
Output Junction Box
For distribution of
output power
Battery
Leads
Black = Negative
RED = Positive
11
