● Ensure the inverter has not been damaged in transit.
● The unit has a Pollution Degree of PD3. It is suitable for indoor, unconditioned installation.
● The unit must be placed in a well-ventilated area, not exposed to the open environment, and
free from contaminates (i.e. exhaust gases, sea air, battery gases, dust).
● The LS inverter is of protective class I meaning the case must be earthed. This should be
attached using the earth connection on the a.c. output junction box.
● A space of 10cm is needed on each side of the inverter for adequate transfer of internal heat.
● The inverters inputs and outputs are classied as over voltage category II.
For more information on over voltage category, see page 17
● The inverter can be mounted horizontally on table or oor. The inverter can also be mounted
on a wall, taking note of the sticker being the correct orientation.
● Ensure the mounting surface is structurally sound.
● All fasteners should be rated to carry a minimum of 40kg.
● Inverter must not be:
Installed in direct sunlight.
Mounted on ammable material.
Mounted vertically,
Located such that it can be accidentally touched,
as it can become hot during operation.
INSTALLATION
To install the inverter please follow the instructions on the following pages. If you are unsure of
any aspect of the installation please email or call Latronics.
Considerations Before Install

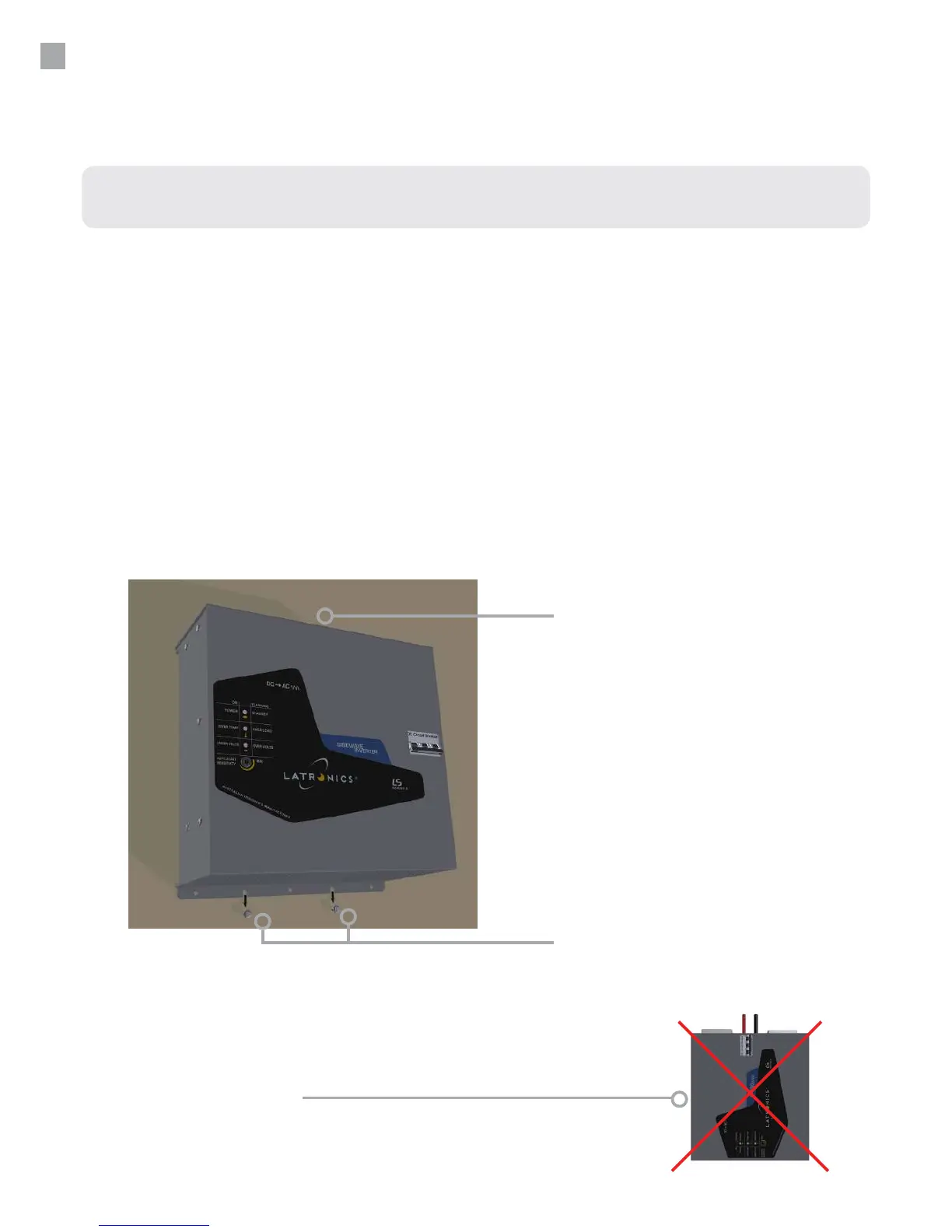

Slots for easy mounting
Mount two xing to the wall
Slot the inverter on
Fixings and mounting
Ensure at least 3 xings are used at the
top and at least two at the bottom.
4
To Next Page
