Technical data
26

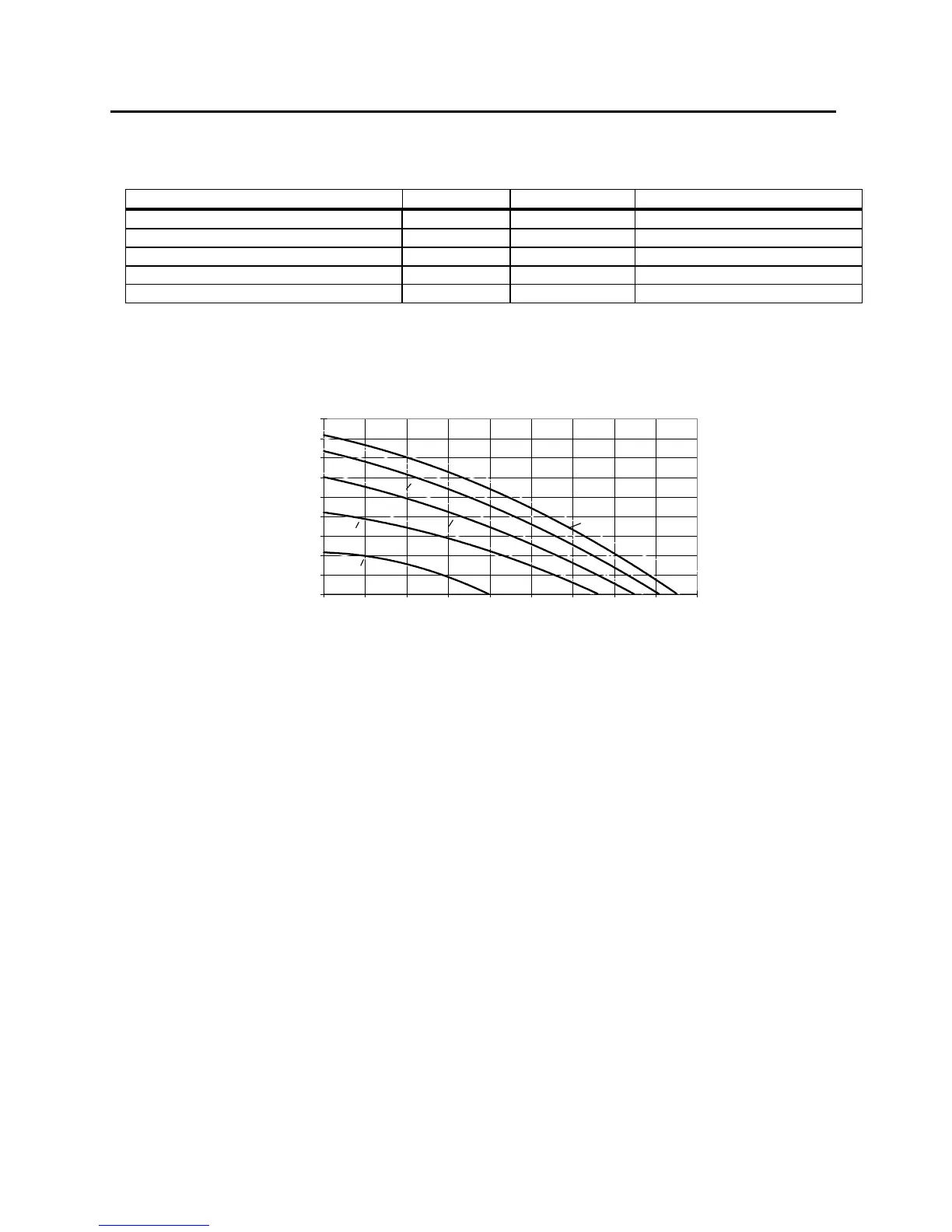

Standard settings of control parameters and pump
➾
Section 6.4.5.1. and 6.4.5.2. and 6.4.2.
Unit Type Xp (°C) Tn (s) Pump outflow step
RE 104, RE 204 7,0 20 2
RE 106, RE 206, RE 306 4,0 20 2
RE 107, RE 207, RE 307 3,0 25 3
RE 112, RE 212, RE 312 4,5 30 4
RE 120, RE 220, RE 320 2,0 25 5
Pump characteristics
measured with water
0
0,05
0,1
0,15
0,2
0,25
0,3
0,35
0,4
0,45
024681012141618
l/min
bar
step 5
step 4
step 3
step 2
step 1
