Lauda Viscotemp 15 G - Contact Module LRZ 915 with 3 Inputs and 3 Outputs

128 / 134 ECO Gold 09/2021
Contact outputs and inputs
Output
Input
 View of flanged plug (front) or
coupling-socket solder side
 Max. 30 V; 0.2 A
Coupling socket catalogue no. EQD 047
 View of socket (front) or solder side
of plug
 Signal approx. 5 V, 10 mA, do not assign Contact 3.
Coupling plug catalogue no. EQS 048
1 = NO contact
2 = Center contact
3 = NC contact
Note: Only use screened connecting leads and connect the screen to the plug housing. Cover unused connectors with
protective caps.

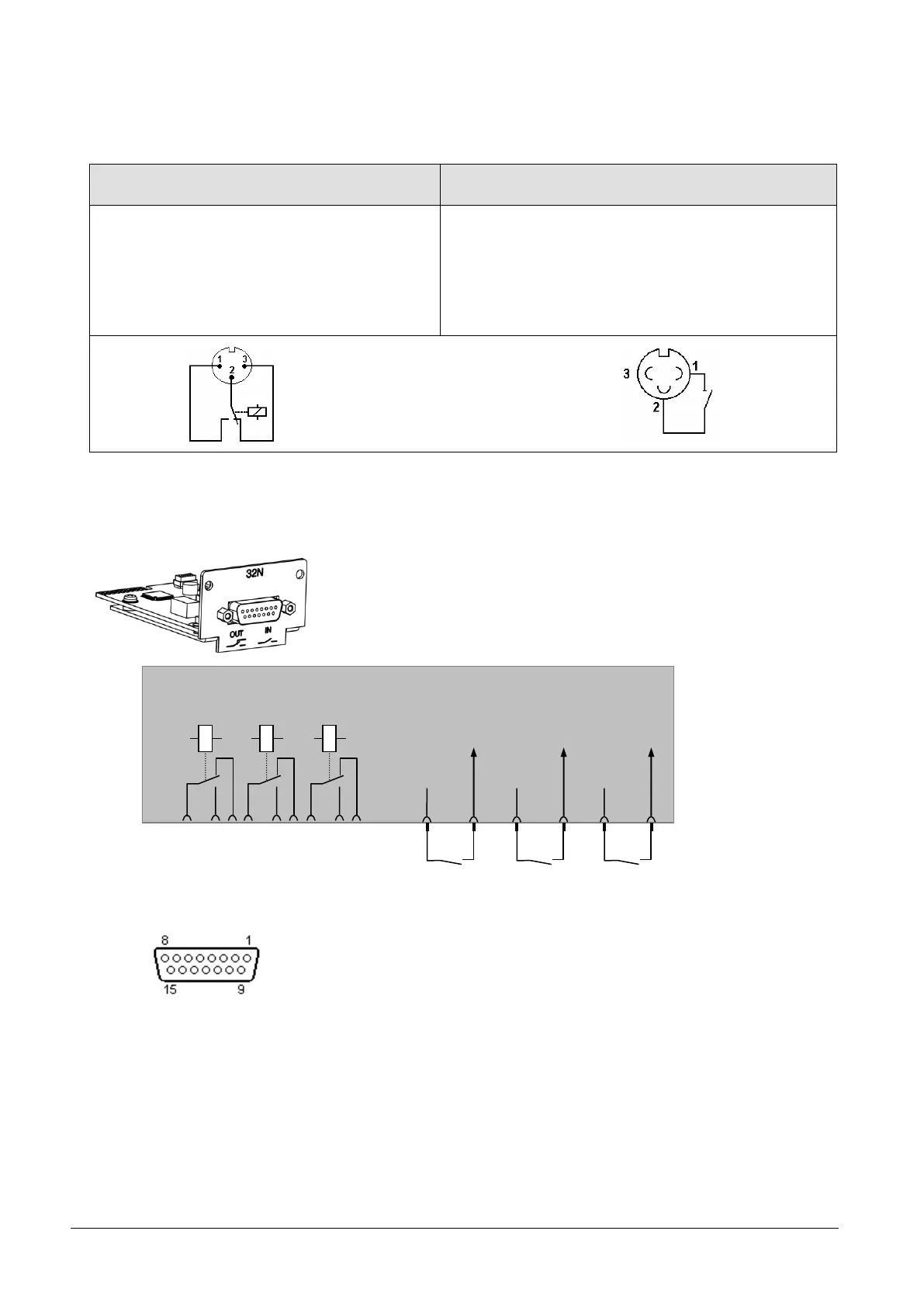

19.8.2 Contact module LRZ 915 with 3 inputs and 3 outputs
Contact module (catalogue no. LRZ 915) with 15-pole SUB-D socket. Range of func-
tions as LRZ 914, but with three relay contact outputs (changeover, max. 30 V/0.2 A)
and three binary inputs for control via external voltage-free contacts.
Contact inputs and outputs
View of sockets on the plug side or of sockets on the solder side.
A suitable 15-pole Sub-D plug can be obtained together with a suitable housing under
the catalogue no. EQM 030 (plug case catalogue no. EQG 017).
1
5 V
Input
Output
1 2 3
Contact Module LRZ 915; SUB-D
12 4 5 6 13 14 15 7 8
2
5 V
3
5 V
1 9 2 10 3 11
