- 26 -

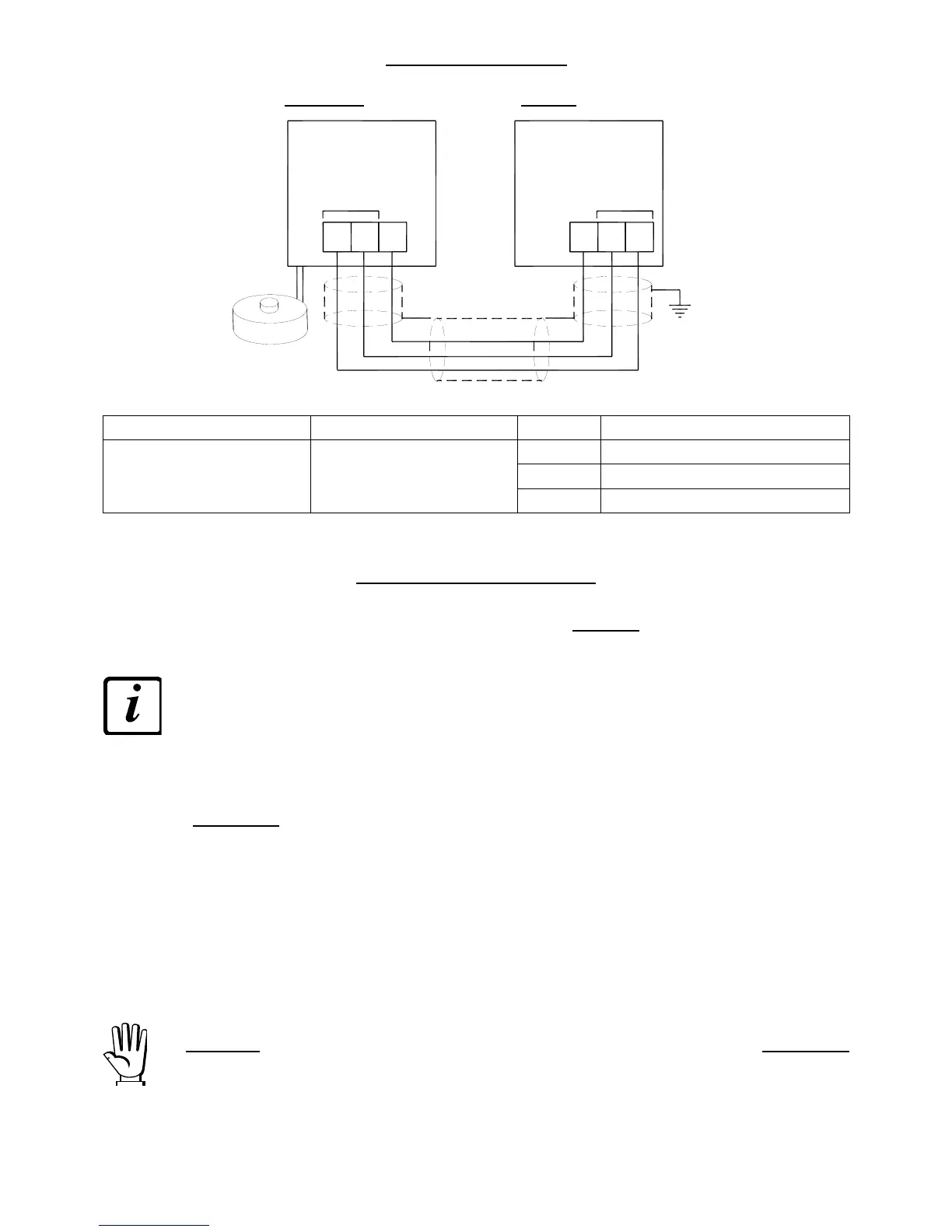

RS232 CONNECTION
INSTRUMENT Connector Pin Signal
W100 TERMINAL
3 RS232: TXD
4 RS232: RXD
2 RS232: SHIELD, GND
COMMUNICATION SETTING
Into the SERIAL COMMUNICATION SETTING section (see receiving instrument manual), select
the desired serial port and operation mode: WEIRIP () or WEIMOD ().
It’s not possible to enable this function on both serial ports; in case of conflict, the last
serial set, remains active.
Settable parameters:
- : transmission speed (2400, 4800, 9600, 19200, 38400, 115200; default: 9600).
- : transmitting instrument address (only for , from 1 to 99; default: 1).
- : delay in milliseconds which elapses before the instrument replies (from 0 to 200 ms;
default: 0).
- :
- : no parity (default).
- : even parity.
- : odd parity.
- : stop bit (1 – 2; default: 1).
Receiving instrument parameters must be set with the same value of transmitting
instrument parameters.
Transmitting instrument
- SUPPLY
RS232
- SUPPLY
RS232
TX
RX RX
TX
Receiving instrument
