18
LAUNCH Pilot TPMS User's Manual

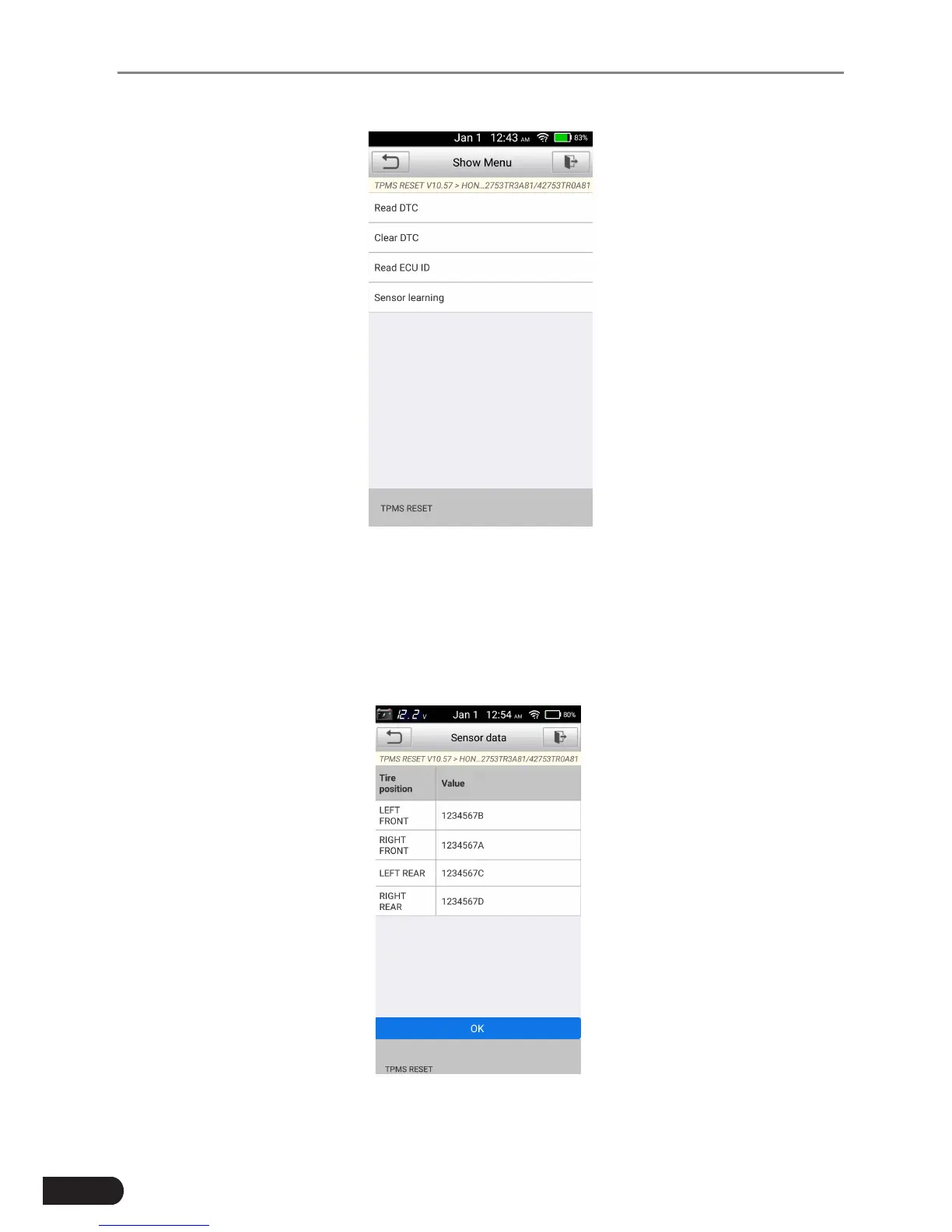

Fig. 5-9
If the IDs are different, the marks will display red. In this case, the vehicle ECU
cannot recognize the sensor installed on the vehicle.
If the OBD function is not supported by the test vehicle, the sensor ID saved in
the TPMS ECU cannot be retrieved and only the sensor ID retrieved from sensor
activation will display on the screen.
Fig. 5-10
