LAUNCH Pilot TPMS User's Manual
EN

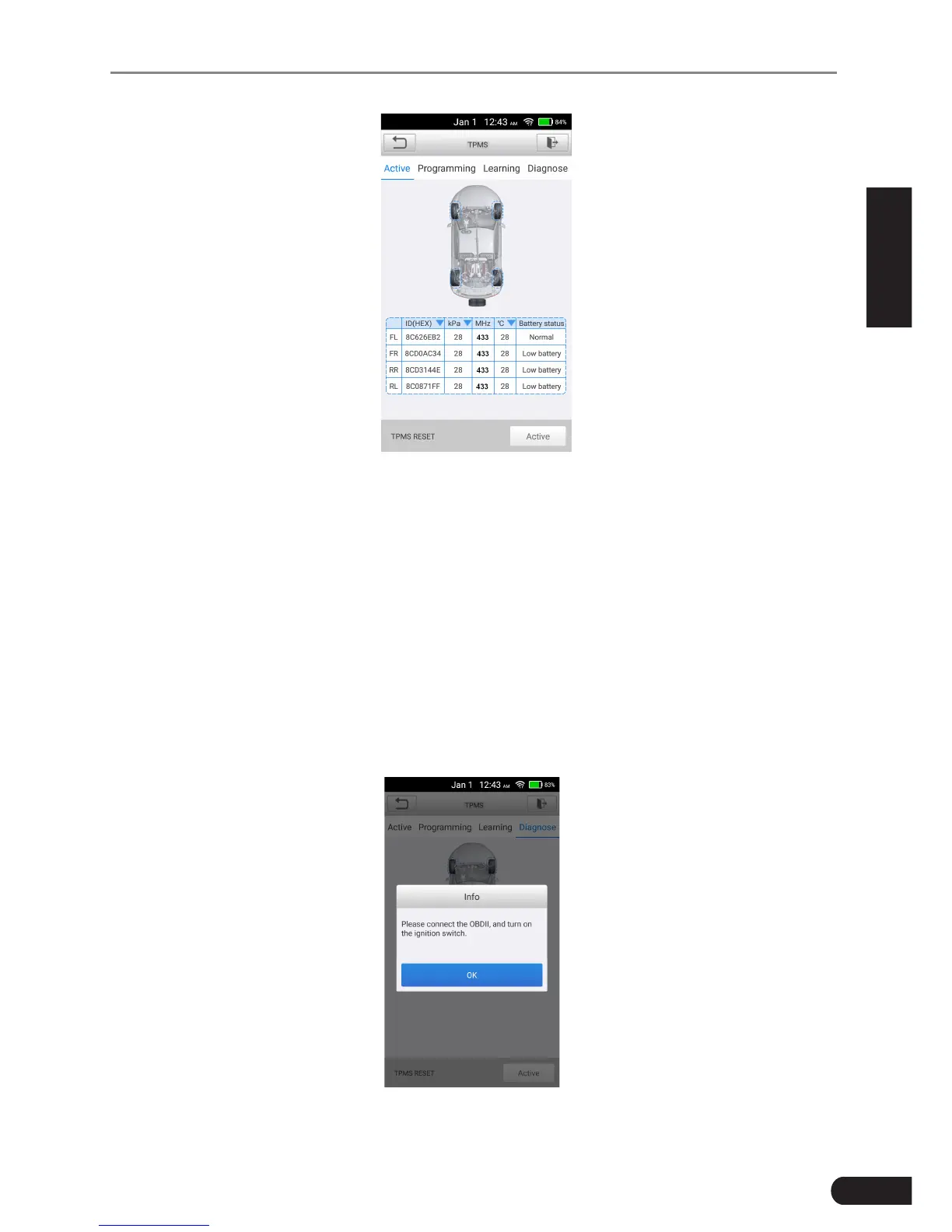

Fig. 5-7
The sensor position, sensor ID, tire pressure, tire temperature, sensor frequency
and sensor battery information of the triggered sensor will display on the table.
5.3 TPMS Diagnosis
The Diagnosis function is used to check the status of the TPMS system. This
function requires connection with the test vehicle. Please refer to Chapter 6.1
Connection for details.
Diagnosis Operations
Tap Diagnosis, and connect the OBD II, the tool will communicate with the
vehicle.
Fig. 5-8
