LAUNCH Professional 123X User Manual
EN

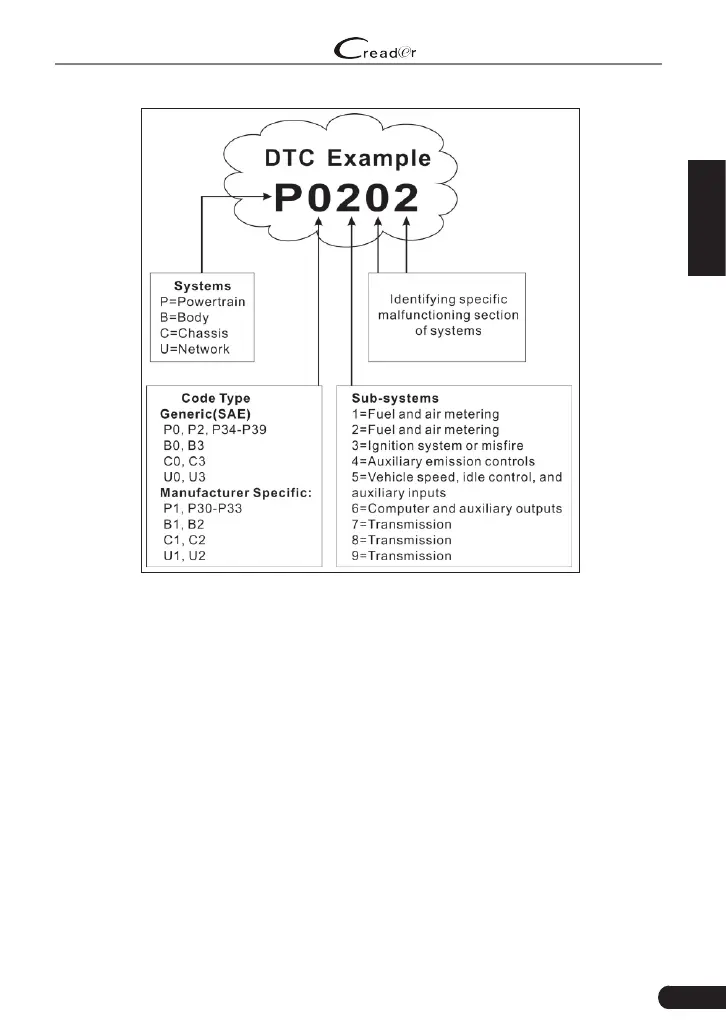

Figure 2-1
2.3 Location of the Data Link Connector (DLC)
The DLC (Data Link Connector or Diagnostic Link Connector) is typically a 16-
pin connector where diagnostic code readers interface with the vehicle’s on-
board computer. The DLC is usually located 12 inches from the center of the
instrument panel (dash), under or around the driver’s side for most vehicles. If
Data Link Connector is not located under dashboard, a label should be there
telling location. For some Asian and European vehicles, the DLC is located
behind the ashtray and the ashtray must be removed to access the connector. If
the DLC cannot be found, refer to the vehicle’s service manual for the location.

Launch CRP123X Specifications

General

Operating System	Android 7.0
Connectivity	Wi-Fi, Bluetooth
ROM	16GB
Processor	Quad-core
Battery	4000 mAh
OBDII Protocols	All 10 modes of OBD II testing
Vehicle Coverage	Covers 57+ vehicle brands
RAM	1GB
Update	Wi-Fi updates
Supported Protocols	KWP2000, CAN
