3.Move the Wheel Balancer back to the desired location, and align the three ma-chine mount-
ing holes at the base of the Body with the three previously drilled floor anchor holes. If
necessary, level the Wheel Balancer by inserting steel shims between the base of the ma-
chine and the concrete floor surface. Do not exceed more than 1/2” thickness of shims.

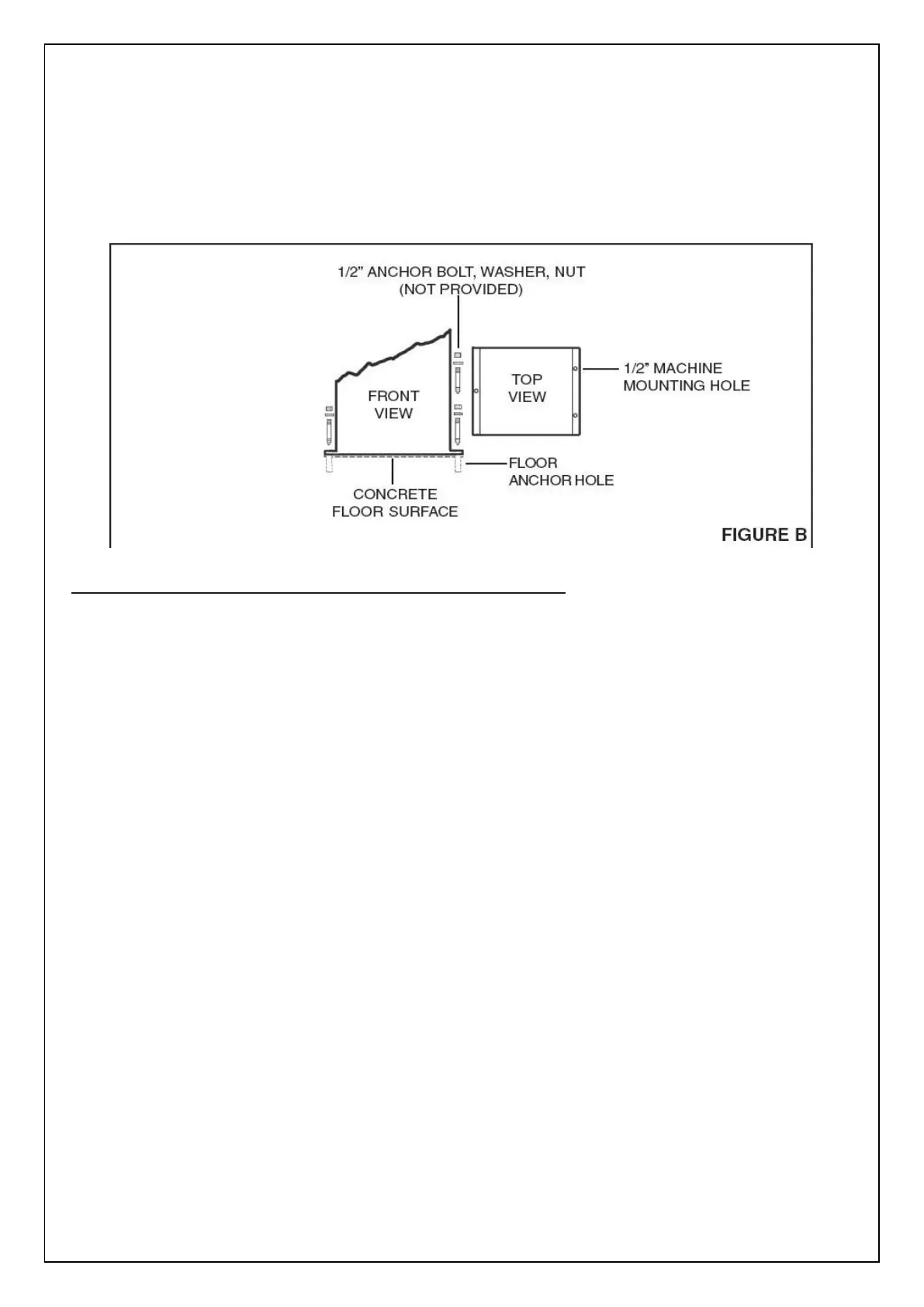

4.Secure the Wheel Balancer to the concrete floor surface, using three 1/2” diameter concrete
anchor bolts of appropriate length, three washers, and three nuts (not provided). (See
Figure B.)
6.3 To Attach The Safety Guard To The Wheel Balancer:
1.Slide the Sheath onto the Shaft . Align the mounting hole of the Sheath with the rear mount-
ing hole of the Shaft. Then, secure the Sheath to the Shaft, using the Screw
2.Slide the mounting hole of the Safety Guard onto the Shaft . Make sure to position the mount-
ing hole of the Safety Guard against the pre-attached Sheath .
3.Slide the Plastic Lip onto the exposed end of the Shaft . Align the mounting hole of the Plastic
Lip with the remaining mounting hole of the Shaft. Then, se-cure the Plastic Lip to the
Shaft, using the Screw . Attaching the Safety Guard to the machine is now completed.
4.The Safety Guard must always be in place while the Wheel Balancer is in operation.
7
