LAUNCH Installation Instruction for Economical Symmetric Floor-plate 2-post Lift
9

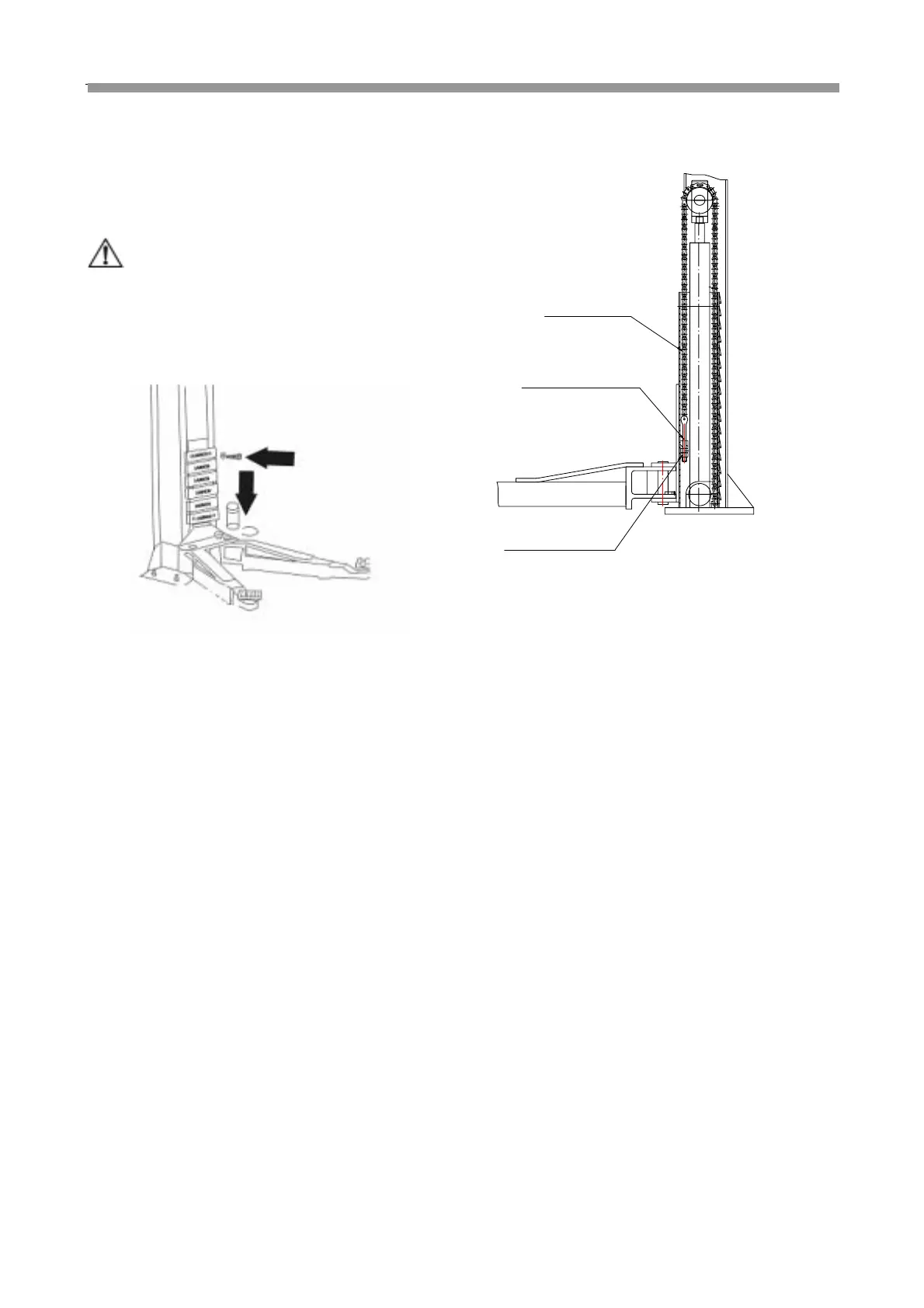

5.2.10 Install the swing arm and guardrail
Install the swing arm, guardrail and door rubber pad as
shown in Fig. 9.
Note
：
During the installation, lubricate the moving parts of
swing arm and carriage if necessary, to ensure the
swing arm can move freely.
5.2.11 Adjust the Steel chain
The steel chain has been adjusted properly by the
manufacture (Fig. 10), making the swing arm move freely at
the lowest height without scratching the ground. The
customer can make fine adjustment for chains after the
electrical and hydraulic installation. Before adjustment, lift
the carriage to a high position and lower for 2 sec to engage
safety lock, and then adjust the nut on the threaded end of
the chain to the required position.
Fig.10
5.2.12 Install floor plate cover
Install the floor plate cover to protect the oil hose and steel
cables
Fig. 9
Plate chain
Adjustment bolt
Connection nut
