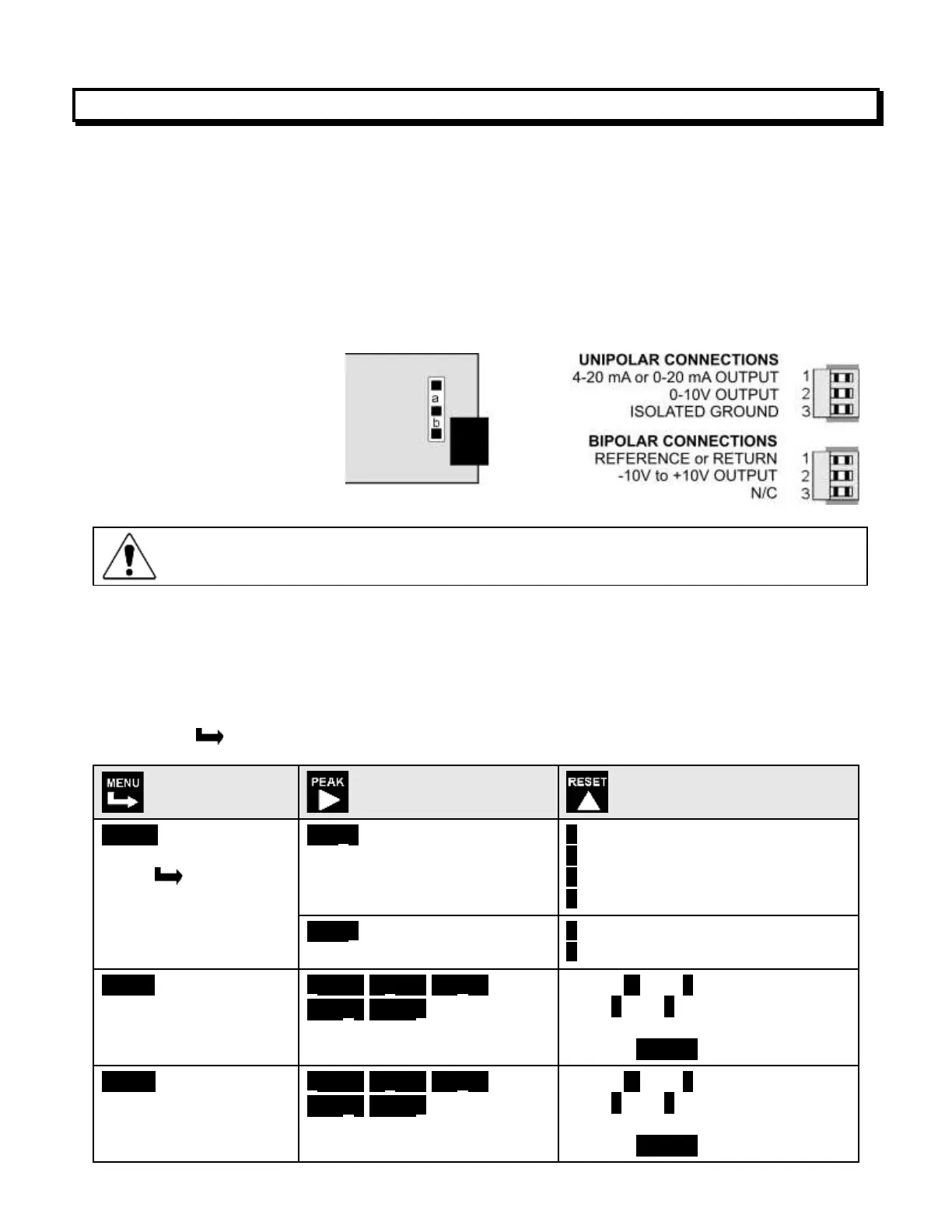

17. ANALOG OUTPUT OPTION
An optional analog output board may be installed in the meter at rear panel jack position J4,
adjacent to the signal conditioner board. Once installed, this board is recognized by the meter,
which will bring up the appropriate menu items for it. These will not be brought up if an analog
output board is not installed.
The analog output can be a 0-20 mA, 4-20 mA or 0-10V unipolar signal with respect to isolated
ground, or a bipolar -10V to +10V voltage signal with respect to a reference return line. Unipolar
or bipolar operation is selected by a jumper. A unipolar current or voltage output is selected at
the connector. Unipolar 4-20 mA or 0-20 mA current is selected in software.
Unipolar current or voltage:
Jumper a
Bipolar -10 to +10 voltage:
Jumper b
The analog output is sourcing. Do not put an external voltage source in series
with it. Applying an external 24 Vdc source will burn out the analog output board.
The low analog output (0 mA, 4 mA, 0V, or -10V) may be set to correspond to any low displayed
reading An Lo. The high analog output (20 mA, 0V or 10V) may be set to correspond to any
high displayed reading An Hi. The meter will then apply a straight line fit between these two end
points to provide an analog output scaled to the meter reading.
KEYSTROKES FOR SETUP
If the MENU key does not work, see Section 9 “Enabling & Locking Out Menu Items.”
Press Menu
Select Key
Press Digit Select
Key
Press Value Select
Key
AnSEt
Analog Output Setup.
Press until AnSEt
is displayed (requires
analog output board).
___00
Analog output signal
selection.
0 0-20 mA current output
1 0-10V voltage output
2 4-20 mA current output
3 -10 to +10V voltage output
___00
Analog output filtering.
0 Analog output unfiltered
1 Analog output filtered
An Lo
Low displayed value
for 0 mA, 4 mA, 0V, or
-10V output
0.0000 0.0000 0.0000
0.0000 0.0000
Select digit to flash.
Select -9 thru 9 for flashing first
digit, 0 thru 9 for other flashing
digits. Decimal point location is
fixed by dEC.Pt selection.
An Hi.
High displayed value
for 20 mA or 10V out-
put
0.0000 0.0000 0.0000
0.0000 0.0000
Select digit to flash.
Select -9 thru 9 for flashing first
digit, 0 thru 9 for other flashing
digits. Decimal point location is
fixed by dEC.Pt selection.
