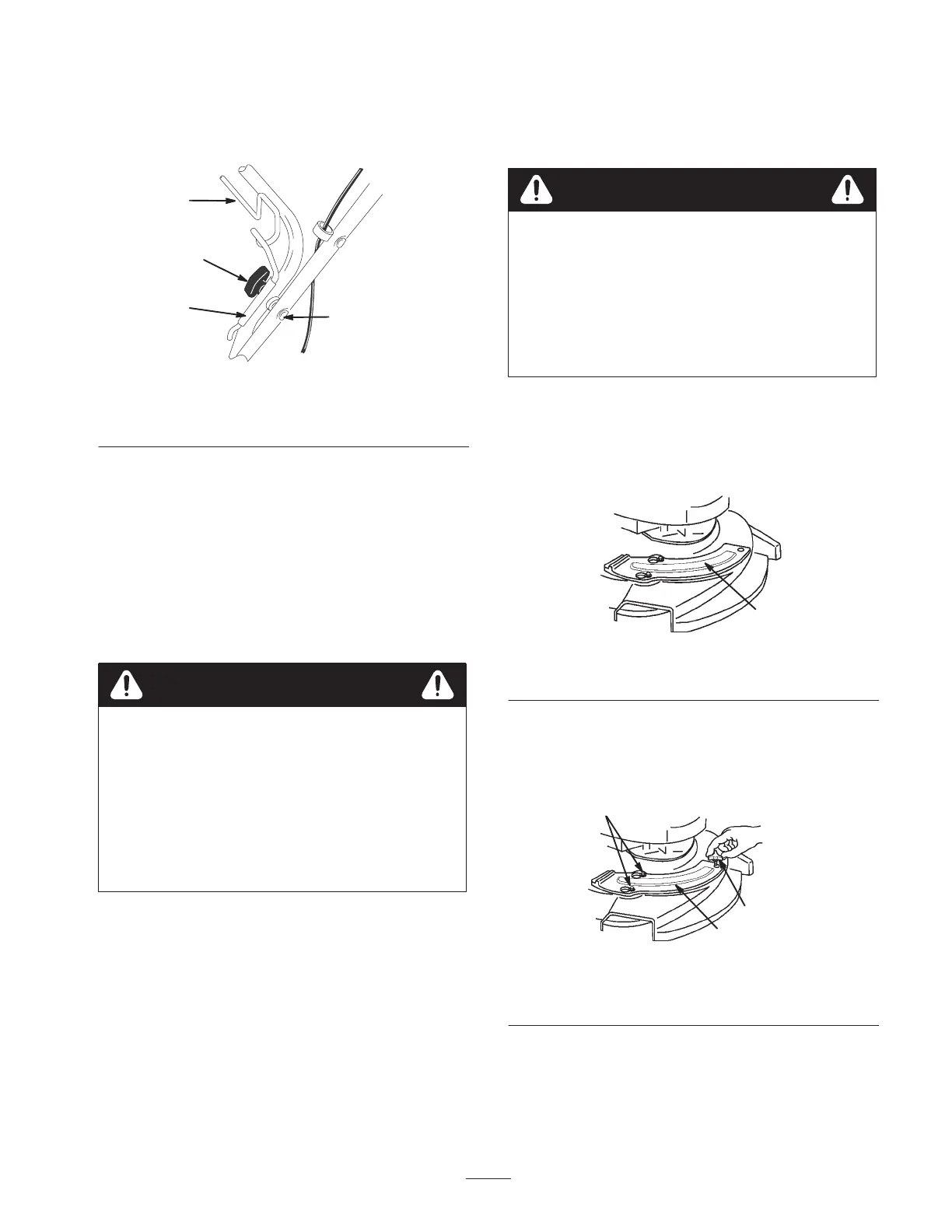

23
1. Remove the bag from the rear bag hanger by removing
the bolt(s) and knob(s) that secure the hanger clamps
to the handle sections (Fig. 46). The hanger clamps
have four adjustment holes.
2
1
3
4
m–5311
Figure 46
1. Knob
2. Bolt
3. Hanger clamp
4. Bag hanger
2. Assemble the hanger clamps to the handle sections
using the set of holes that best holds the bag taut.
Using the lower holes in hanger clamps tightens the
bag assembly; using the upper holes in the hanger
clamps loosens the bag assembly.
Note: Under normal use, the bag will wear and
deteriorate. Check the grass bag often and replace it when
necessary with a genuine Lawn-Boy replacement bag. A
weakened or inferior bag may let objects pass through,
causing an injury.
Keep hands, sticks or other objects out of the
grass chute while the blade is turning; thrown
objects or blade contact can result in serious
injury.
Always stop the engine when emptying the grass
bag and disconnect the wire from the spark plug
before cleaning a clogged chute, a bag tunnel, or
the underside of the lawn mower housing.
Warning
Installing the Mulch Plate
To convert from side discharge operation to mulching,
remove the cover plate and install the mulch plate.
An uncovered discharge opening could allow the
lawn mower to throw objects in the operator’s or
bystander’s direction and result in serious injury.
Also, contact with the blade could occur.
Never operate the lawn mower unless you install a
cover plate, a mulch plate, or a grass chute and
catcher.
Warning
1. Stop the engine and wait for all moving parts to stop.
2. Disconnect the wire from the spark plug (Fig. 14).
3. Insert the mulch plate into the housing opening
(Fig. 47).
1123
1
Figure 47
1. Mulch plate
4. You do not need to loosen or remove the two shoulder
bolts on the housing that protrude through the slotted
holes in the mulch plate (Fig. 48). The mulch plate
moves over the shoulder bolt heads.
m-1727
3
1
2
Figure 48
1. Mulch plate
2. Shoulder bolts
3. Knob
5. Slide the mulch plate clockwise to install it; slide the
mulch plate counterclockwise to remove it.
6. Secure with a knob (Fig. 48).
7. Connect the wire to the spark plug.
