Note:Usethestrawthatcomeswiththespraycan
todirectthespray.
2.Pushtheupperhandlefullydownandspraythe
innerplasticsurfaceoftheouterhandle(Figure22).

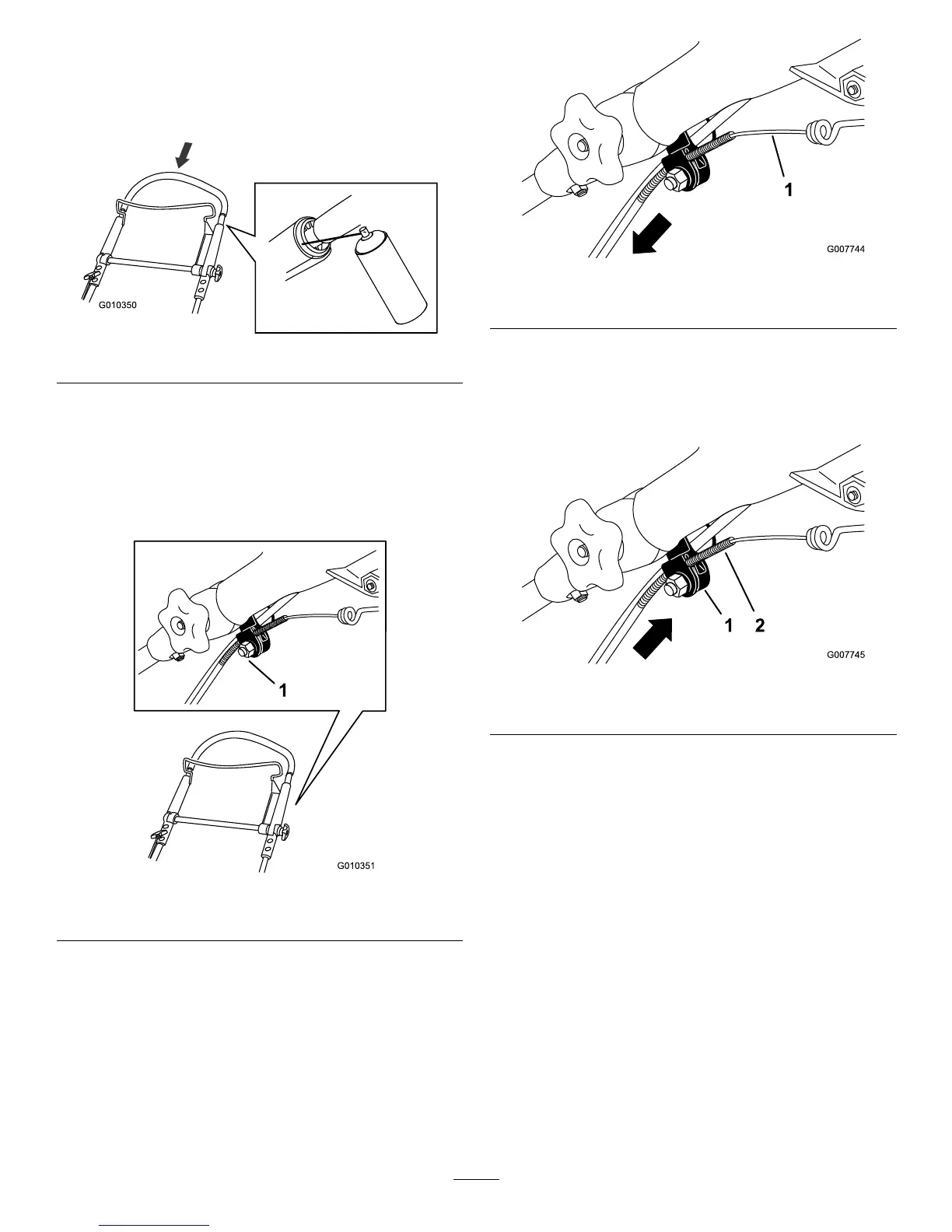

Figure22
AdjustingtheSelf-propelDrive
Ifyourmowerdoesnotself-propelproperly,adjustthe
self-propeldrivecable.
1.Loosenthenutonthecablemount(Figure23).
Figure23
1.Cablemount
2.Pulltheupperhandlebackfullyrearward.
Note:Ifthehandledoesnotmovesmoothly,refer
toLubricatingtheUpperHandle.
3.Pullthecablejacketdownwarduntilyouremovethe
slackintheexposedcable(Figure24).
Figure24
1.Exposedcable
4.Pushthecablejacketupward1/8inch(3mm).
Note:Youcanplacearuleragainsttheupperside
oftheblackcablemountandmeasurehowfarthe
upperendofthecablejacketmoves(Figure25).
Figure25
1.Cablemount2.Cablejacket
Note:Movingthecablejacketupwarddecreases
thegroundspeed;movingthejacketdownward
increasesthegroundspeed.
5.Tightenthenutrmly.
6.Startthemowerandchecktheadjustment.
Note:Iftheself-propeldriveisnotproperly
adjusted,repeatthisprocedure.
ReplacingtheBlade
ServiceInterval:Yearly
Important:
Youwillneedatorquewrenchtoinstall
thebladeproperly
.Ifyoudonothaveatorque
wrenchorareuncomfortableperformingthis
procedure,contactanAuthorizedServiceDealer.
Examinethebladewheneveryourunoutofgasoline.If
thebladeisdamagedorcracked,replaceitimmediately.
