KNOW YOUR GRASS TRIMMER
Components
1. Choke Lever
2. Air Filter Cover
3. Primer Bulb
4. Fuel Tank Cap
5. Fuel Tank
6. Main Handle
7. Throttle Lever
8. Battery Slot
9. Battery Release Button
10. Trimmer Line
11. Trimmer Head With Line Spool
12. Gear Box Housing
13. Shaft
14. Assist Handle
15. Stop Switch
16. Start Button
17. Battery Power Indicator
18. Trimmer Line Cutting Blade
19. Debris Guard
20. Knob
21. Mufer
22. Engine Housing
23. Spark Pulg Cap
24. Throttle Safety
25. Start Button Cover
26. Shaft Connection Sleeve
27. Locking Pin

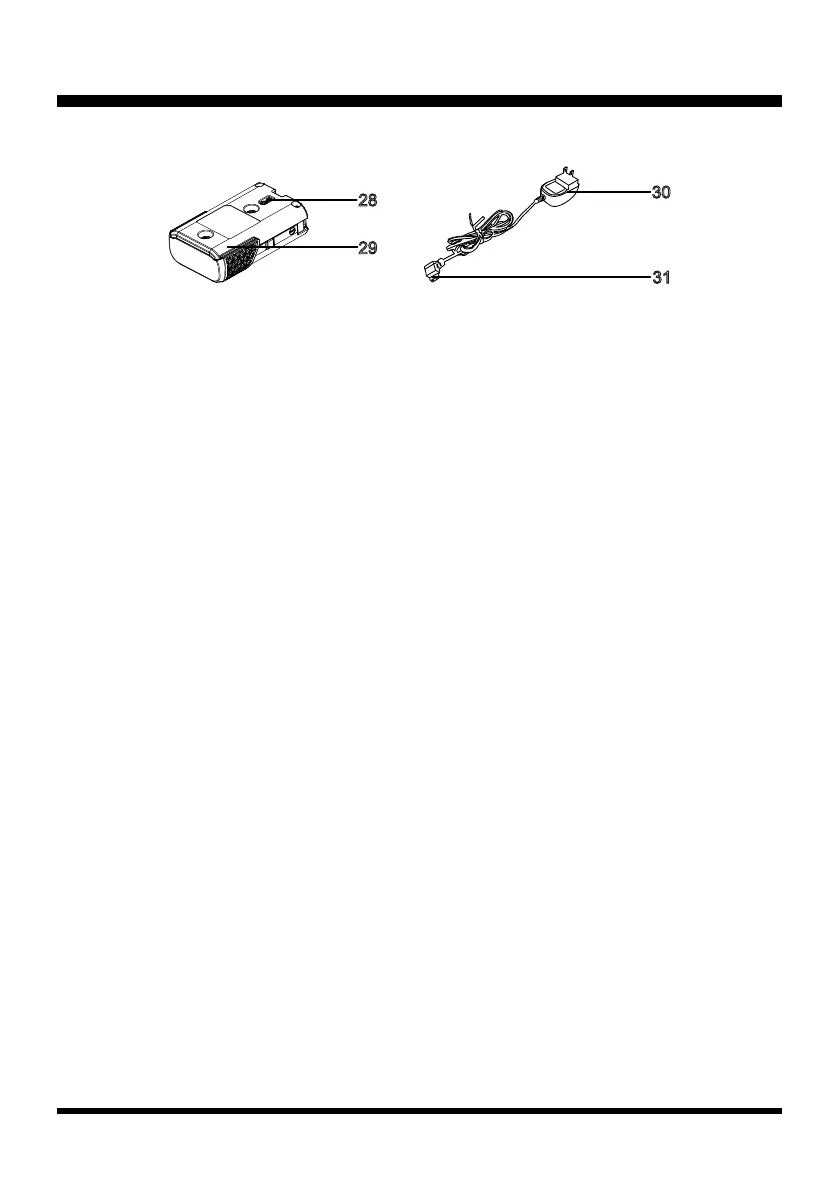

28. Charging Port
29. Battery Pack
30. Charger
31. Charging Connector
The safe use of this product requires an understanding of the information on the product and in this
Operator’s Manual as well as knowledge of the project you are attempting. Before use of this product,
familiarize yourself with all operating features and safety rules.
