V_pro8 Manual V1.0/2 33
Installation & Configuration
Signal Connections

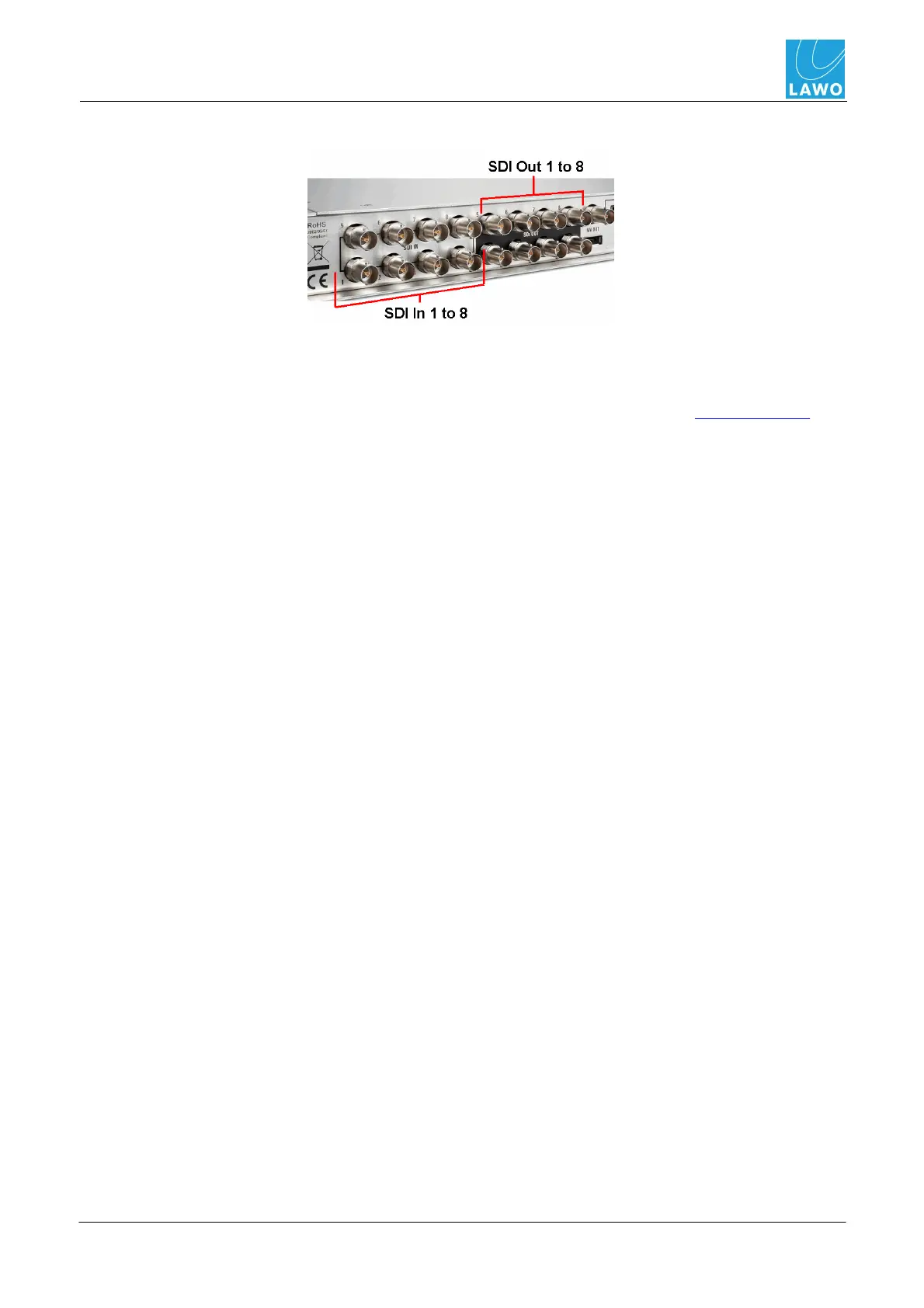

SDI Connections
8 x SDI inputs and 8 x SDI outputs on BNC connectors.
Each SDI connection carries one digital video and 16 embedded audio channels.
A wide range of 10-bit 3G, HD and SD video standards are supported, please see Technical Data.
