Installation & Configuration
Signal Connections
MV (MultiView) Out

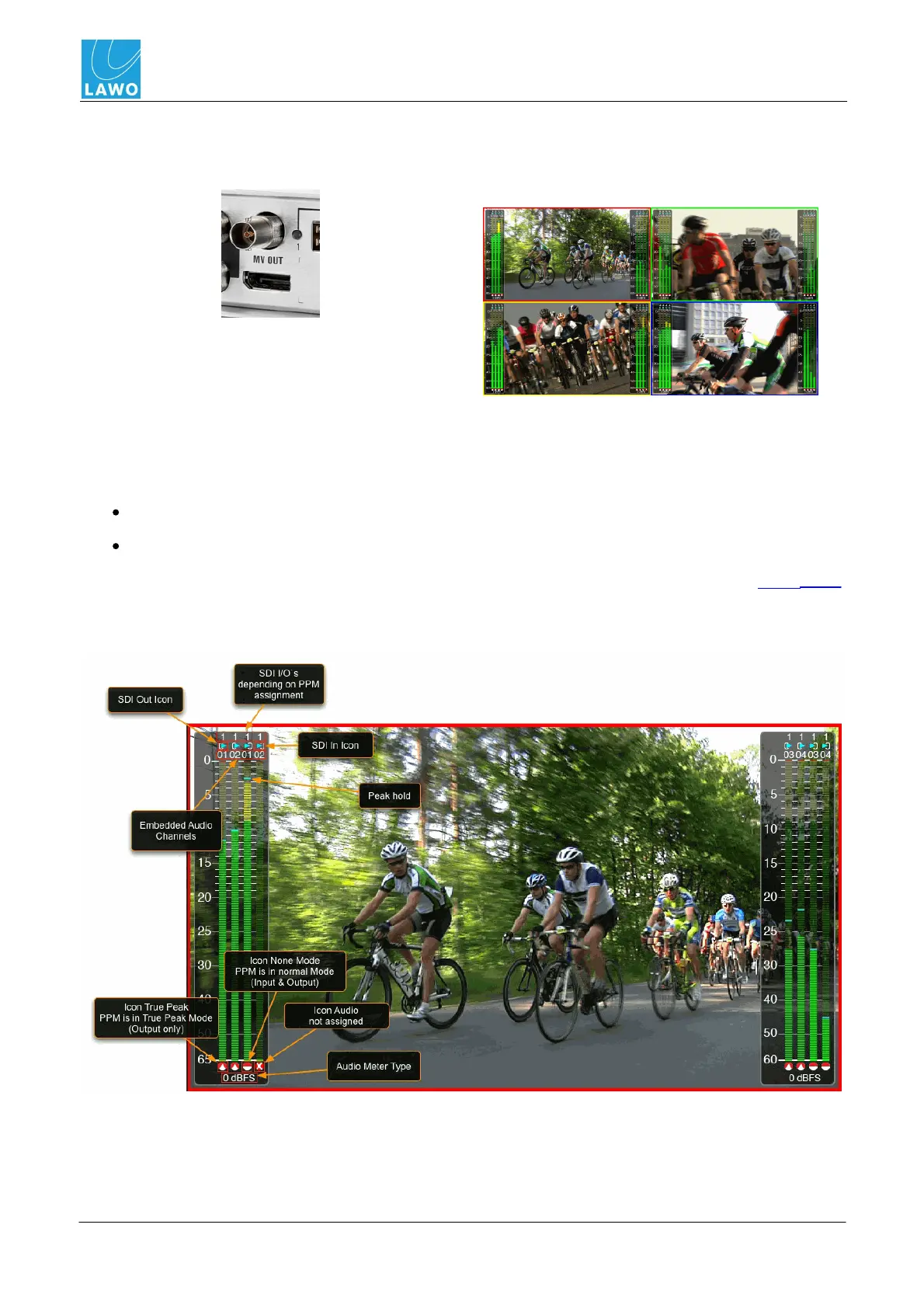

External Display (shows any 4 SDI inputs or outputs
simultaneously):
The MV (MultiView) OUT is used to provide local Quad Split monitoring of up to 4 SDI inputs or
outputs simultaneously.
Two different connector options are provided:
1 x BNC (3G) - in a future release, HD-SDI will be supported.
1 x DisplayPort.
Once connected, Quad Split monitoring is configured from the user interface, see the Quad Split
menu.
On the external display, each monitor window provides the following information:
