Operation (Web Browser Control)
Quad Split
Quad Split

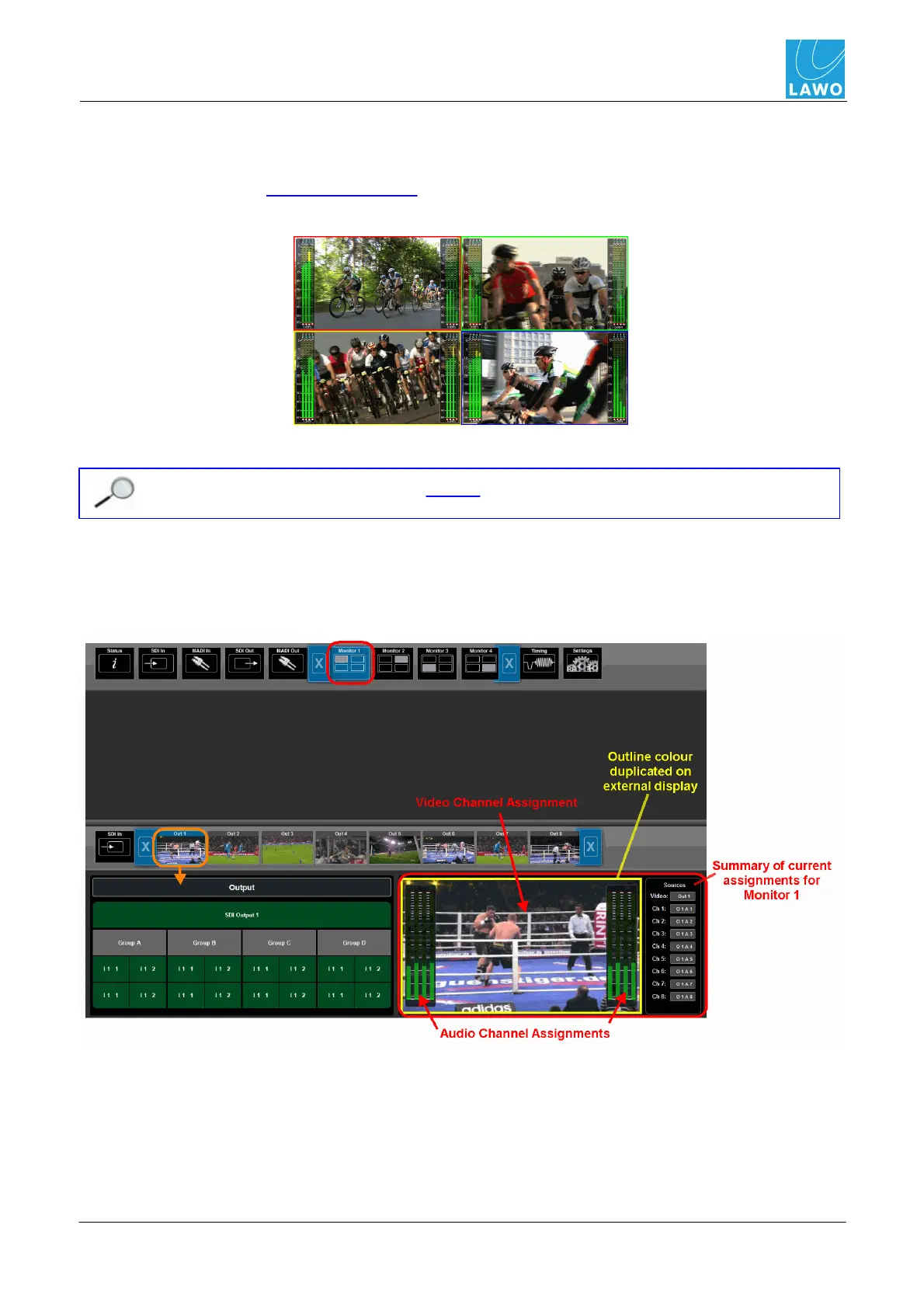

This main menu controls the four Monitor outputs (1 to 4) which can be viewed on an external
display connected to the MV (MultiView) OUT:
External Display (shows any 4 SDI inputs or outputs simultaneously):
1. Select Quad Split and a Monitor (1 to 4) from the main menus.
You must have the correct software license in order to access this menu.
On the lower right you will see the current assignments for the selected Monitor (e.g. Monitor 1).
Note that the coloured outline (yellow) is duplicated on the external display. This provides easy
identification for each of the four monitor positions.
The lower left is used to select SDI inputs or outputs for assignment.
To Next Page
