7

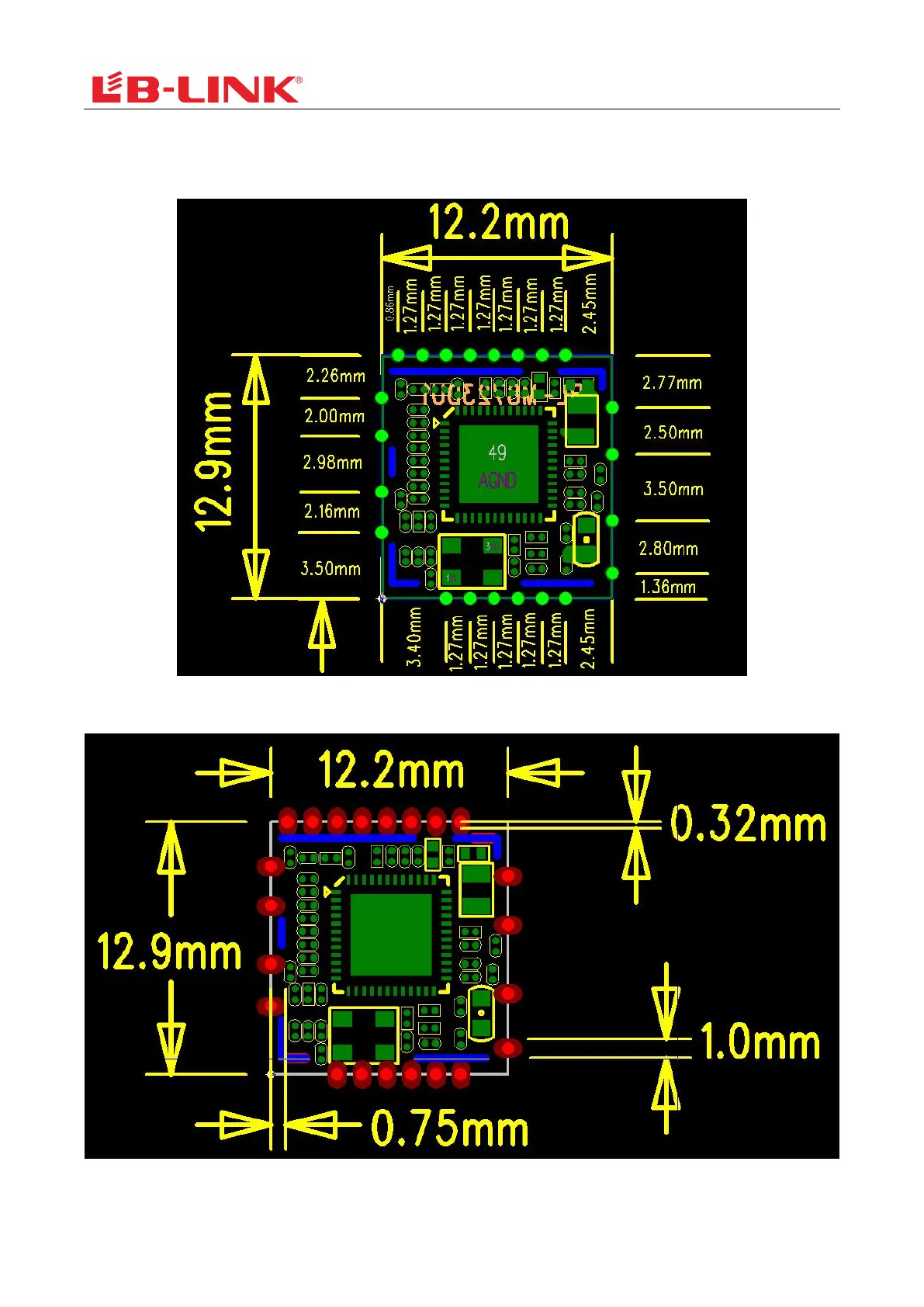

6. Mechanical Specifications
PCB Module dimension: Typical ( L*W * H): 12.2mm*12.9mm*0.8mm Tolerance : +/-0.15mm
Figure 5
Figure 6
