2. Functional Block Diagram

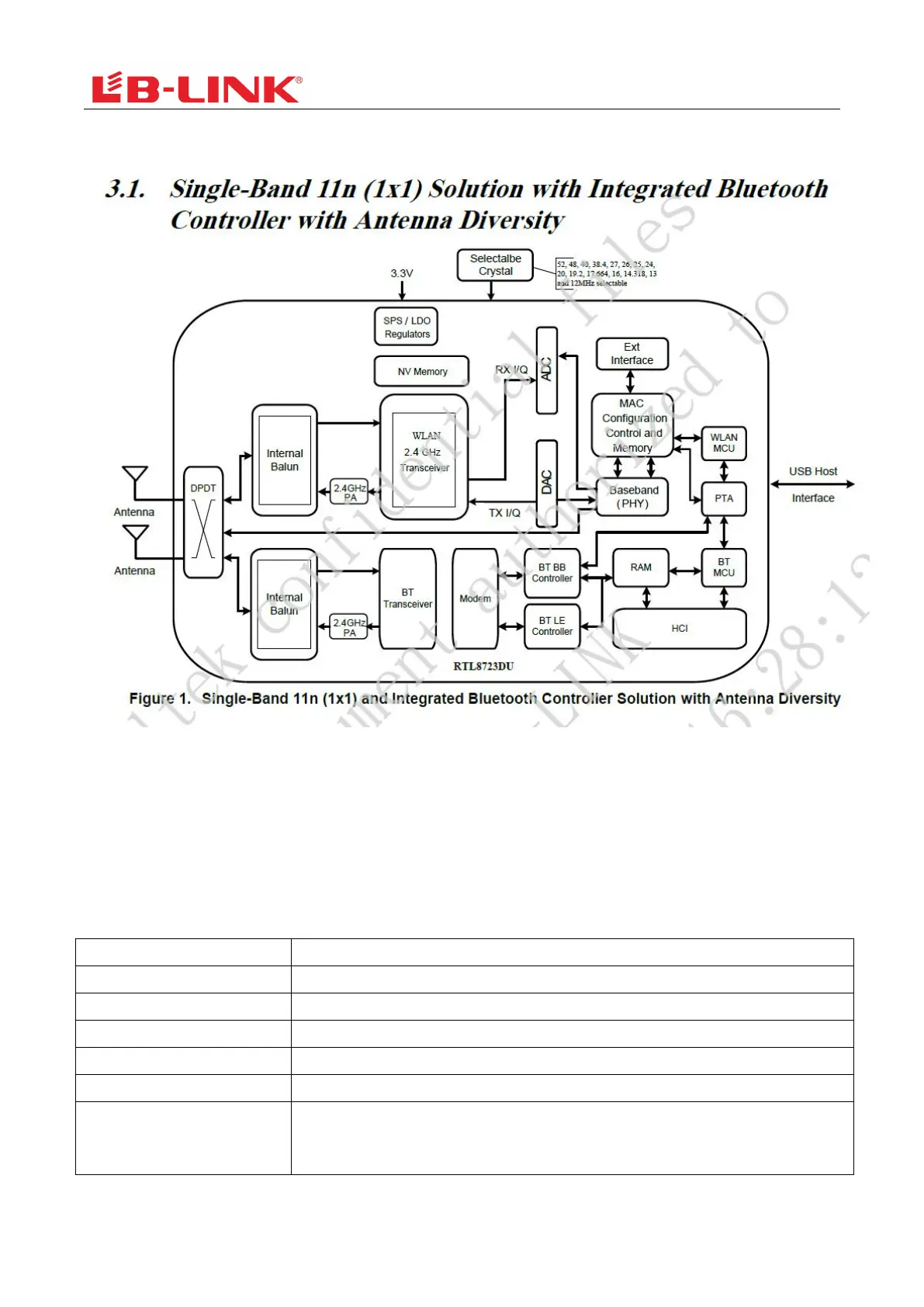

Figure 3 RTL8723DU block diagram
3. Product Technical Specifications
3.1 General Specifications
Item Description
Product Name BL-M8723DU1
Main Chip RTL8723DU-CG
Host Interface USB2.0
IEEE Standards IEEE 802.11b/g/n B T: Compatible with Bluetooth v2.1,v4.2 Systems
Operating Frequencies
BT:2.402~2.48GHz(BT)/WIFI:2.412~2.472GHz(USA 11Channels, Europe and others 13 channels)
Modulation
WiFi:
802.11b: CCK, DQPSK, DBPSK
802.11g: 64-QAM,16-QAM, QPSK, BPSK
