Floë 636 Integrated
Water Drainage System
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0003522
Parts ListSafety
This manual provides general instructions. Many variables
can change the circumstances of the instructions, i.e., the
degree of difficulty, operation and ability of the individual
performing the instructions.
This manual cannot begin to plot out instructions for
every possibility, but provides the general instructions,
as necessary, for effectively interfacing with the device,
product or system. Failure to correctly follow the provided
instructions may result in death, serious personal injury,
severe product and/or property damage, including voiding
of the LCI limited warranty.
THE “CAUTION” SYMBOL ABOVE IS A SIGN THAT
A PROCEDURE HAS A RISK INVOLVED THAT MAY
CAUSE PERSONAL INJURY OR PROPERTY DAMAGE
IF NOT PERFORMED SAFELY AND WITHIN THE
PARAMETERS SET FORTH WITHIN THIS MANUAL.
THE “WARNING” SYMBOL ABOVE IS A SIGN AN
INSTALLATION PROCEDURE HAS A SAFETY RISK
AND MAY CAUSE DEATH, SERIOUS PERSONAL
INJURY OR SEVERE PRODUCT AND/OR PROPERTY
DAMAGE IF NOT PERFORMED SAFELY WITHIN THE
PARAMETERS SET FORTH IN THIS MANUAL.
Model 636Model 636
DescriptionDescription QtyQty
Floë Induratec 636
1
Air line, 13’ 1
CTS one-way double valve tee, 1/2” 1
CTS barbed connectors, 1/2” 2
Hose clamps 2
Shutoff fitting, 3/8” 1
Right angle fitting, 3/8” 1
Barbed connector, 3/8” 1
Anti-vibration washers 4
Pan head screws 4
White retainer washers 4
Black screw caps 4
Fused DC cable, 13’ 1
In-line DC switch 1
Cigar/cigarette lighter connector 1
Cable tie 1
Anti-splash cloth 1
Resources Required
• Phillips head screwdriver
• Pipe cutter, garden shears
or craft scissors
• Snips or hacksaw blade
• Awl or punch to mark
holes for screws
• Pliers
NOTE: Images used in this document are for reference
only when assembling, installing and/or operating this
product. Actual appearance of provided and/or purchased
parts and assemblies may differ.
Installation Of Model 636
Preparation
NOTE: When cutting the main water line and air lines, use
thumb and forefinger to round the ends. Wet ends with
damp cloth before inserting air line into connector. This
ensures they are smoothly fitted and do not drag on any
internal “O” rings inside connectors.

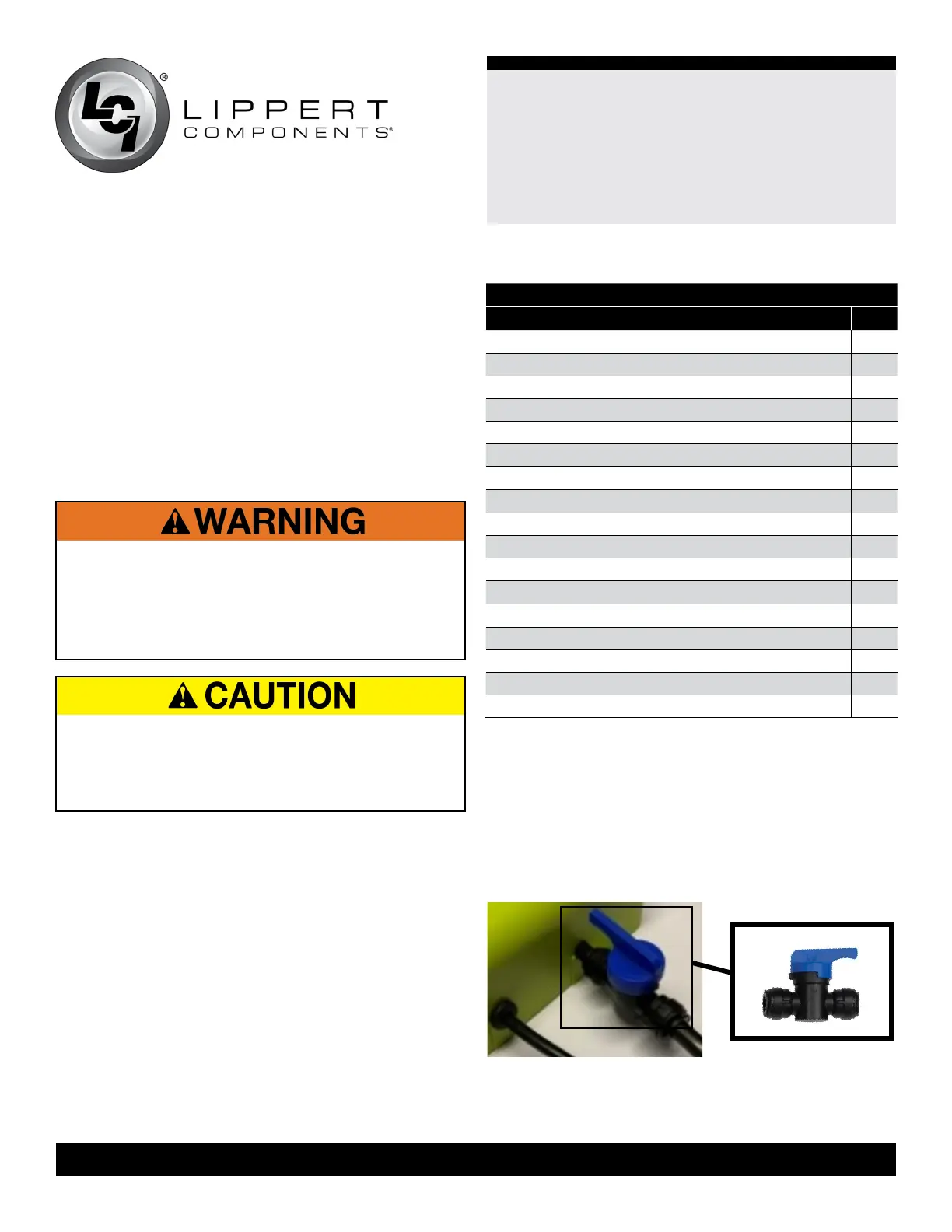

1. Insert end of the shuto󰀨 valve onto the air line stump,
with the tail of the shuto󰀨 valve pointed toward Floë (Fig.1).
Fig.1
