Chapter 3 Port connection
THC have voltage divide pierce in their interior, with CNC、dc motor、arc start
switch、proximity switch, etc. Points linking piece put in the case, and the whole point
of metal shielding encapsulation, voltage divide piece can be connected directly to the
plasma power source arc pressure and protective cap collision detection circuit, etc.
3.1 The case view

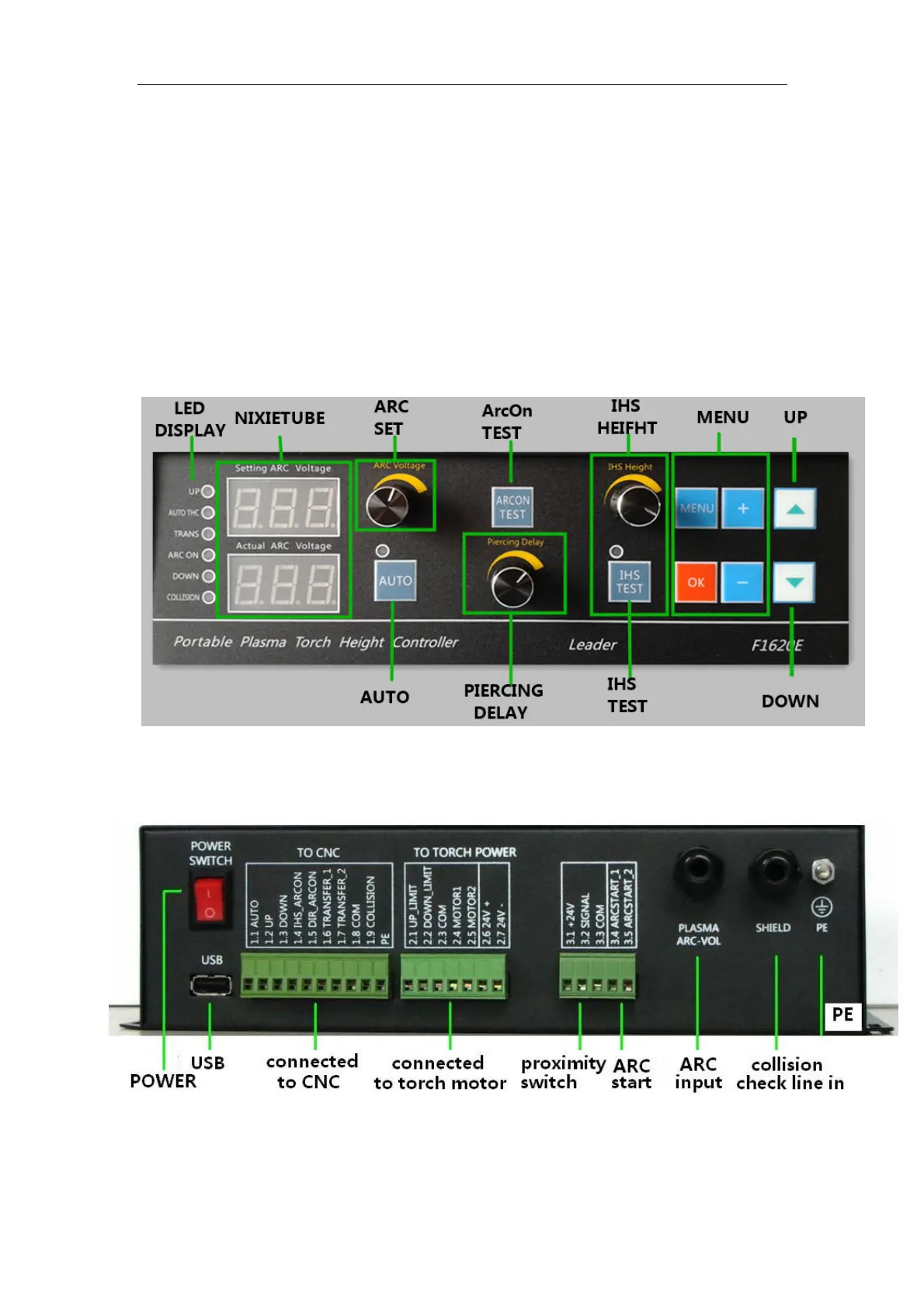

Figure 3.1 The positive view of mainframe
Figure 3.2 The rear view of mainframe
