Leader F1620 - Voltage Divide and Wiring

Portable Plasma Torch Height Controller Manual (F1620)
29
3.3 voltage divide port
3.3.1 arc voltage port
Portable THC (TYPE F1620) use voltage divide board to detect plasma arc
voltage and torch remaining cap collision signal. The connection as follows:

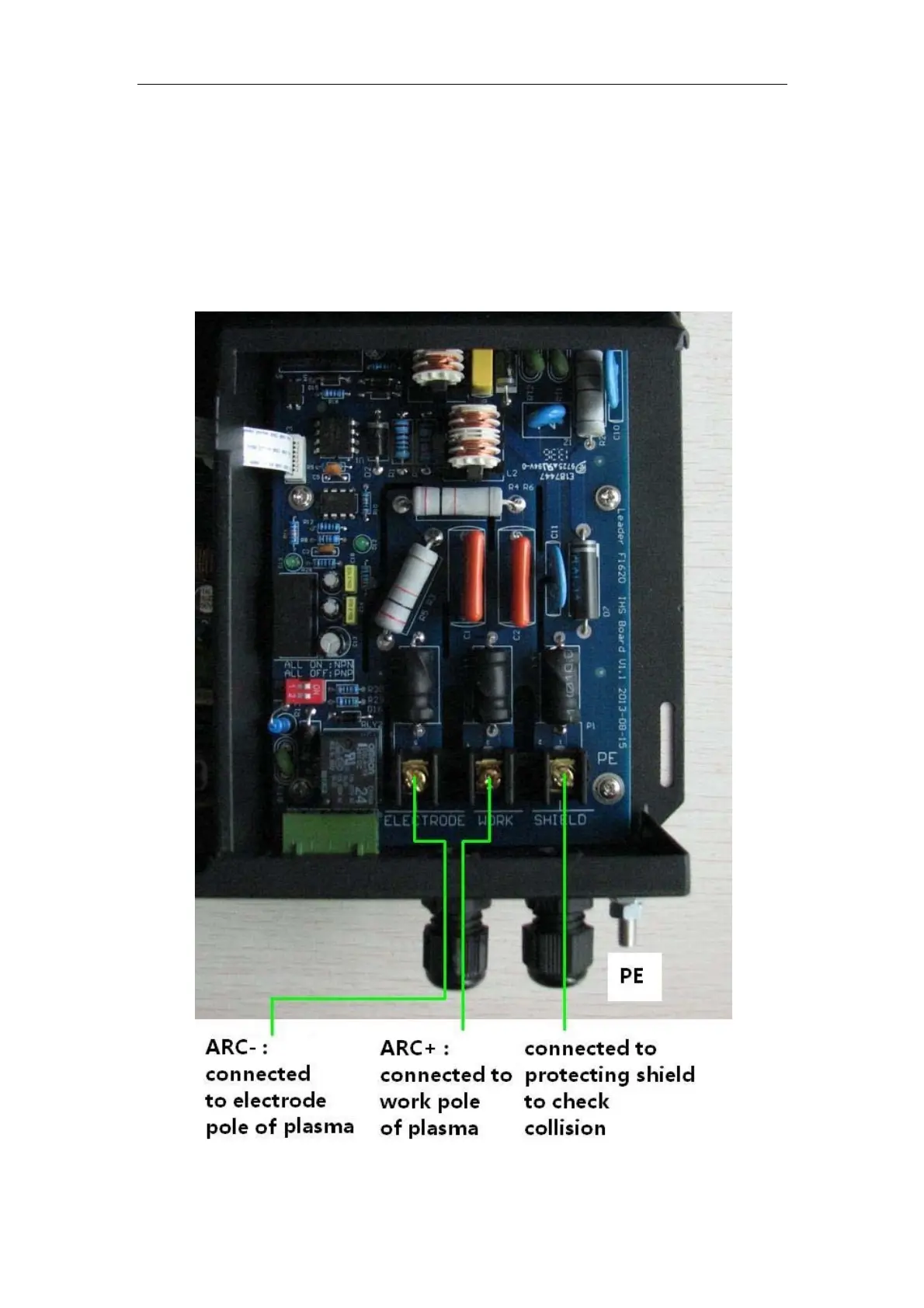

Figure 3.11 voltage divide board port and wiring
