DMA860H Fully Digital Stepper Drive Manual V1.0
7
Multiple Drivers
It is recommended to have multiple drivers to share one power supply to reduce cost, if the supply has enough capacity.
To avoid cross interference, DO NOT daisy-chain the power supply input pins of the drivers. (Instead, please connect
them to power supply separately.)
Selecting Supply Voltage
The power MOSFETS inside the DMA860H can actually operate within +24 ~ +80VDC, including power input
fluctuation and back EMF voltage generated by motor coils during motor shaft deceleration. Higher supply voltage can
increase motor torque at higher speeds, thus helpful for avoiding losing steps. However, higher voltage may cause
bigger motor vibration at lower speed, and it may also cause over-voltage protection or even driver damage. Therefore,
it is suggested to choose only sufficiently high supply voltage for intended applications, and it is suggested to use
power supplies with theoretical output voltage of +20 ~ +68VDC, leaving room for power fluctuation and back-EMF.
7. Selecting Microstep Resolution and Driver Output Current

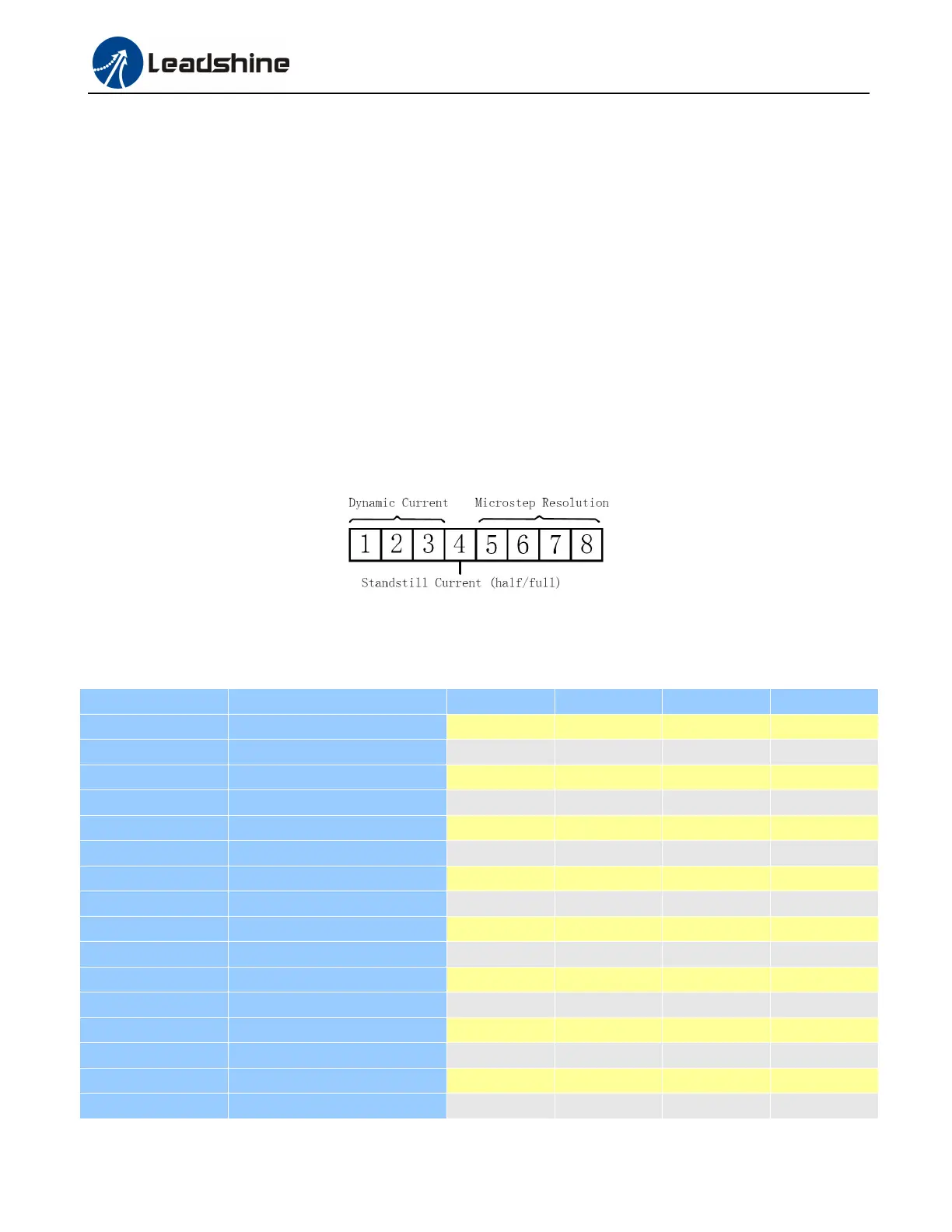

This driver uses an 8-bit DIP switch to set microstep resolution, and motor operating current, as shown below:
Microstep Resolution Selection
Microstep resolution is set by SW5, 6, 7, 8 of the DIP switch as shown in the following table:
Microstep
Steps/rev.(for 1.8°motor)
SW5
SW6
SW7
SW8
2
400
ON
ON
ON
ON
4
800
OFF
ON
ON
ON
8
1600
ON
OFF
ON
ON
16
3200
OFF
OFF
ON
ON
32
6400
ON
ON
OFF
ON
64
12800
OFF
ON
OFF
ON
128
25600
ON
OFF
OFF
ON
256
51200
OFF
OFF
OFF
ON
5
1000
ON
ON
ON
OFF
10
2000
OFF
ON
ON
OFF
20
4000
ON
OFF
ON
OFF
25
5000
OFF
OFF
ON
OFF
40
8000
ON
ON
OFF
OFF
50
10000
OFF
ON
OFF
OFF
100
20000
ON
OFF
OFF
OFF
200
40000
OFF
OFF
OFF
OFF
