Pulse Voltage
-
5
-
VDC
Isolation resistance
500
MΩ
Operating Environment and other Specifications
Cooling
Natural Cooling or Forced cooling
Operating Environment
Environment
Avoid dust, oil fog and corrosive gases
Ambient Temperature
0℃ － 50℃
Humidity
40%RH － 90%RH
Operating Temperature
70℃ Max
Vibration
5.9m/s
2
Max
Storage Temperature
-20℃ － 65℃
Weight
Approx. 620g (21.9oz)
Mechanical Specifications

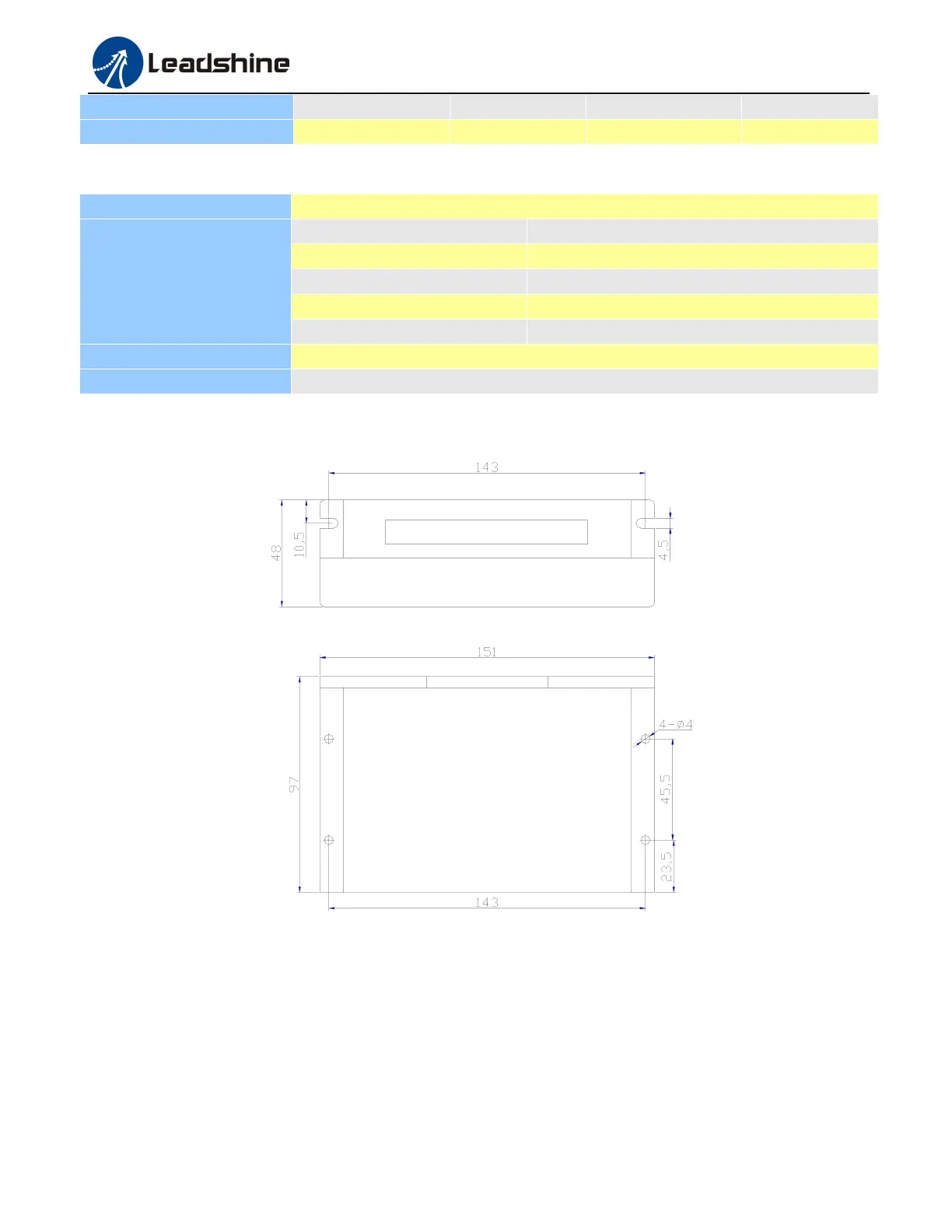

Figure 1: Mechanical specifications
*Recommend use side mounting for better heat dissipation
Elimination of Heat
 Driver’s reliable working temperature should be <70℃(158 ℉ ), and motor working temperature should be
<80℃(176℉);
 It is recommended to use automatic idle-current mode, namely current automatically reduce to 50% when motor
stops, so as to reduce driver heating and motor heating;
 It is recommended to mount the driver vertically to maximize heat sink area. Use forced cooling method to cool
