SPOILER CONTROL VALVE
RETRACT EXTEND
(SHOWN IN EXTEND POSITION)
ACTUATOR ACTUATOR
PRESSURE
RETURN
LEGEND
SPOILER
LH SPOILER RH SPOILER
RESTRICTOR
RESTRICTOR

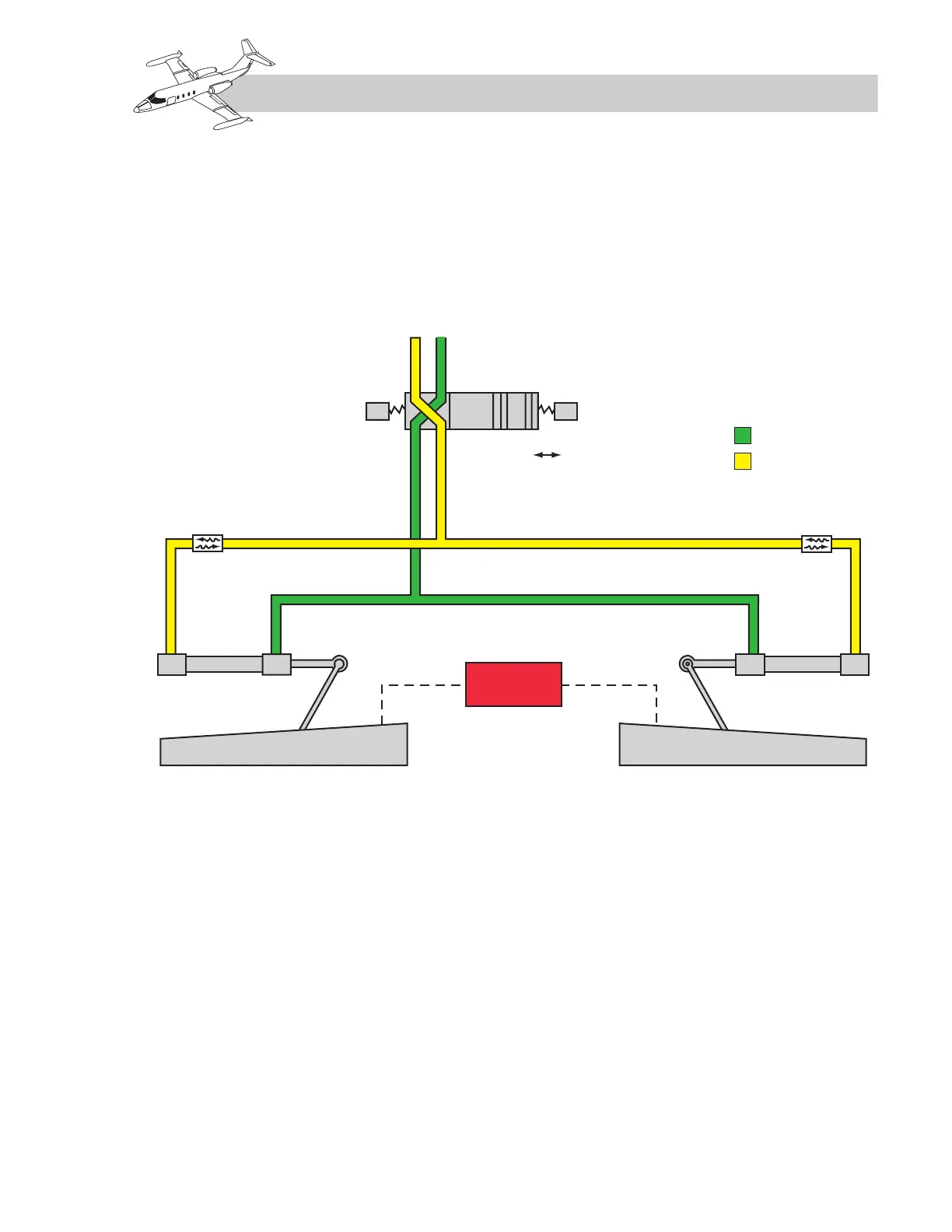

Figure 15-10. Spoiler System Schematic
