Lectrosonics SRc - Adapters for Stand-Alone Use; SREXT Adapter Kit; SRHARNESS Adapter Kit; Installing Rear Panel Adapters

SRc5P and SRc Dual Receivers
LECTROSONICS, INC.
10

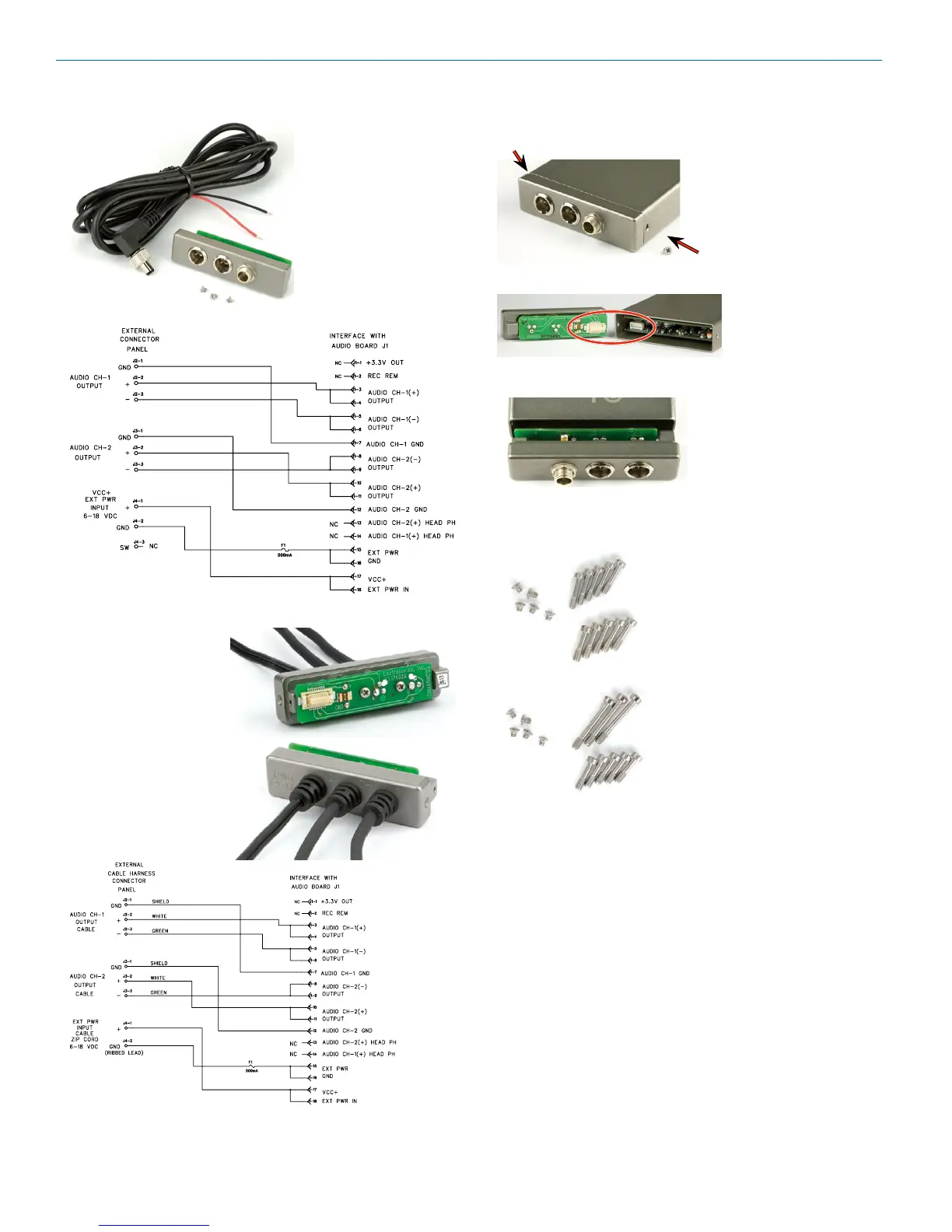

Installing Rear Panel Adapters
Installation of the rear panel output/power adapters is
the same for all models.
Panels are held in
place by two phil-
lips head screws
on the sides of the
housing.
Connections
between the panel
and main circuit
board are made
via miniature mat-
ing connectors.
Align the mating
connectors and
slide the panel
straight into the
housing until the
screw holes align
with the housing.
Adapters for Stand-Alone Use
SREXT
For stand-alone use,
this kit includes a
rear panel with two
TA3 male jacks for
the balanced out-
puts and a power
jack with a locking
connector. Trim the
power cable to the
desired length.
SRHARNESS
Ideal for use in por-
table “bag systems.”
Two balanced output
cables and the power
cable are 6 feet long.
Cut the cables to the
desired length and
terminate as needed.
Replacement Screw Kits
SRSNYSCREWKIT
Contains:
5 - #28863 (smaller mid-length)
5 - #28864 (larger mid-length)
5 - #28869 (shortest)*
* For Housing
SRUNISCREWKIT
Contains:
3 - #28862 (longest)
5 - #28864 (mid-length)
3 - #28869 (shortest)*
* For Housing
