IR SYNC
Navigate to this menu item to manually initiate the IR
sync transfer. Hold the IR ports on the transmitter and
receiver facing each other a foot or two apart and press
the UP arrow for channel 1 or the DOWN arrow for
channel 2. Watch for a confirmation on the transmitter
LCD to verify the settings were correctly transferred. If
one or both settings could not be enabled on the trans-
mitter, an error message will appear on its screen.
SCAN
This function provides a fast and reliable method of
finding clear channels for each receiver. Press SEL to
start the scanning. Follow the procedure outlined on
the previous page and on the subsequent page entitled
Scanning for Clear Frequencies for instructions on
using the scanner to find clear channels.
DIVMODE
The SWITCH diversity mode (dual channel mode) al-
lows the two internal receivers to operate independently
on different frequencies and settings with two different
transmitters. Diversity reception uses an antenna phase
switching technique on each receiver. When this mode
is selected, the setup screens will prompt you to select
the receiver to be adjusted.
The RATIO mode combines the two internal receiv-
ers to pick up the same transmitter and mix their audio
outputs in a ratio panning mode. In this mode, the setup
screen for frequency will prompt you for a single value
which will automatically be set for both receivers.
TALKBACK
Talkback is a special function that re-directs the audio
output of the transmitter in use to a different receiver
module when a button is pressed on the transmitter.
The normal use is to provide a “com” channel so the
person using the transmitter can have a direct line to
the crew or production staff. The HH hand held transmit-
ter provides a programmable switch on the housing that
can be configured for this function. The switch function
is configured from the LCD menu on the transmitter.

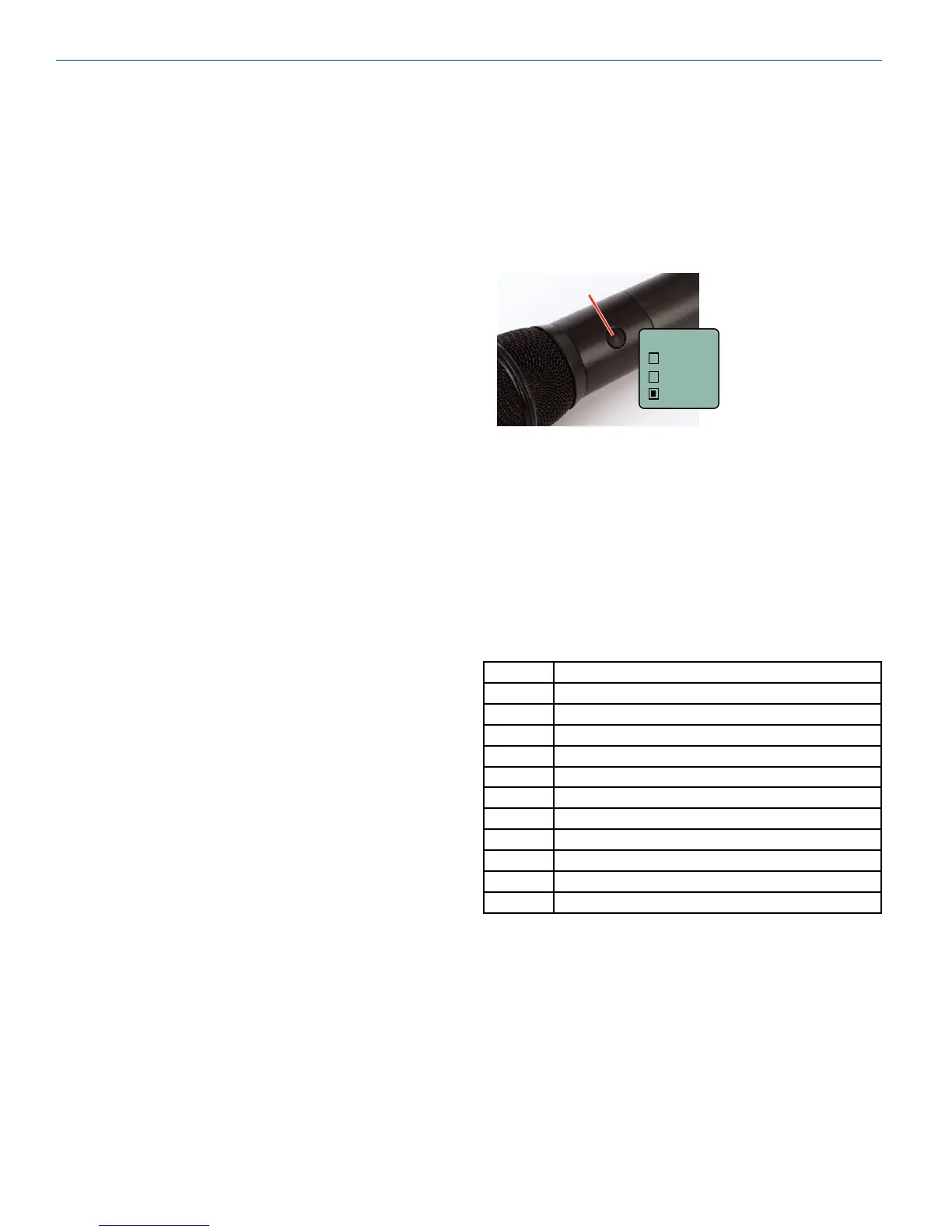

Button
(none)
Mute
Ta lkBk
Programmable button
As long as the button
is held in, the audio
will appear at the
designated talkback
channel rather than
the channel used
for program audio. A
simple setup screen
in the SRC receiver
makes it easy to designate channels with this function
enabled and which output will deliver the talkback audio.
If multiple channels have talkback enabled and share
the same talkback channel, the audio outputs from all of
them will appear simultaneously (mixed) at the talkback
output channel if multiple buttons are pressed at the
same time.
COMPAT
Compatibility modes adjust the FM deviation and audio
processing (companding) to match other Lectrosonics
models and some models from other manufacturers.
NA HYBR North American Digital Hybrid Wireless
®
MODE 3 Other manufacturer*
200 SER 200 Series transmitters
100 SER 100 Series transmitters
JA MODE3 Japan Other manufacturer*
JA HYBR Japan Digital Hybrid Wireless
®
MODE E Other manufacturer*
EU HYBR European Digital Hybrid Wireless
®
300 SER 300 Series transmitters (European)
MODE 7 Other manufacturer*
MODE 6 Other manufacturer*
IFB SER IFB transmitters in IFB mode
